Unit · AXIAL-PISTON MOTOR
A6VM115EP600P001A/71XWV0P4Z97W0-SR902233115
Axial piston motor Bosch Rexroth series A6VM, type code A6VM115EP600P001A/71XWV0P4Z97W0-S, material number R902233115. Nominal size: NG 115. Axial piston unit: bent-axis design, variable displacement (A6V). Operating mode: motor (M). Control device: proportional control, electric negative control U = 24 V (EP6). Pressure control/override: without pressure control/override (00). Connector for solenoids: DEUTSCH - molded connector, 2-pin, without suppressor diode (P). Swivel angle sensor: without swivel angle sensor (0). Additional function: without additional function (0). Stroking time damping: damping HP, EP, HP5,6D. and EP5,6D., HZ, EZ, HA with (1). Setting range for displacement: without setting screw short (0-adjustable) (A). Direction of rotation: viewed on drive shaft, bi-directional (W). Sealing material: FKM (fluorocarbon rubber) (V). Drive shaft bearing: standard bearing (0). Mounting flange: ISO 3019-2 160-4 (P4). Drive shaft: splined shaft DIN 5480 W40×2×18×9g (Z9).
- Number
- R902233115
- Type code
- A6VM115EP600P001A/71XWV0P4Z97W0-S
- Group
- A6VM 115
- Edition
- 06/2020

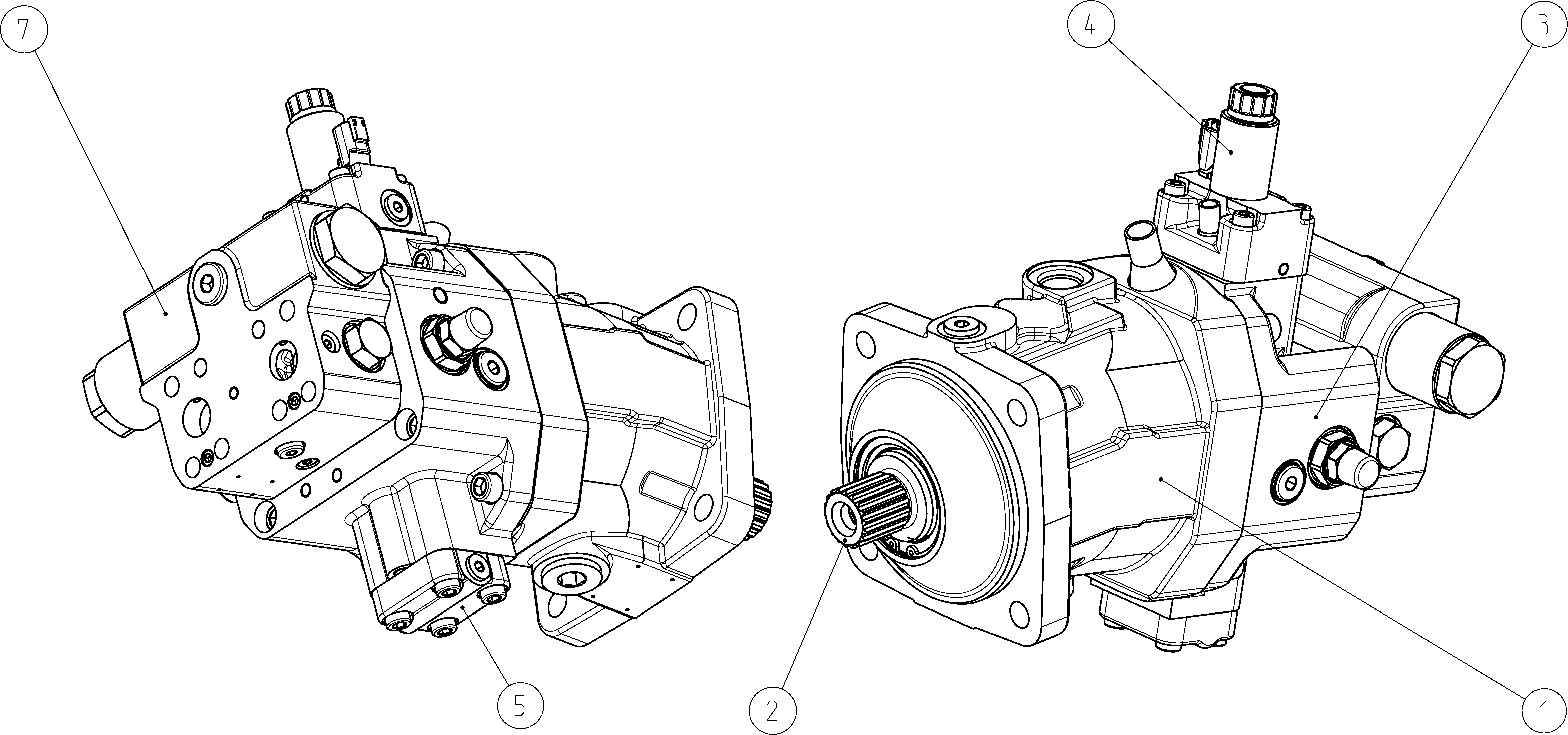

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902235892 | HOUSING Assembly parts list →L | 1 | ||
| R902124393 | ROTARY GROUP Assembly parts list →L | 1 | ||
| R902242661 | COVER PLATE Assembly parts list →L | 1 | ||
| R902151504 | CONTROL PART Assembly parts list →L | 1 | ||
| R902207918 | COVER Assembly parts list →L | 1 | ||
| R902239287 | BRAKE VALVE Assembly parts list →L | 1 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Axial piston unit | Bent-axis design, variable displacement | A6V |
| Operating mode | Motor | M |
| Size (NG) | 115 | 115 |
| Control device | Proportional control, electric negative control U = 24 V | EP6 |
| Pressure control/override | Without pressure control/override | 00 |
| Connector for solenoids | DEUTSCH - molded connector, 2-pin, without suppressor diode | P |
| Swivel angle sensor | Without swivel angle sensor | 0 |
| Additional function | Without additional function | 0 |
| Stroking time damping | Damping HP, EP, HP5,6D. and EP5,6D., HZ, EZ, HA with | 1 |
| Setting range for displacement | Without setting screw short (0-adjustable) | A |
| Series | Series 7, index 1 (nominal pressure 450 bar) | 71 |
| Direction of rotation | Viewed on drive shaft, bi-directional | W |
| Sealing material | FKM (fluorocarbon rubber) | V |
| Drive shaft bearing | Standard bearing | 0 |
| Mounting flange | ISO 3019-2 160-4 | P4 |
| Drive shaft | Splined shaft DIN 5480 W40×2×18×9g | Z9 |
| Working port | Port plate for mounting a counterbalance valve, BVD20 with 1-stage pressure relief valve (pilot operated) | 7 |
| Valve | With BVD/BVE counterbalance valves mounted | W |
| Speed sensor | Without speed sensor | 0 |
| Standard/special version | Special version | S |
