Unit · PUMP COMBINATION
A4VG110EP1/40AL+A4VG110EP1/40ALR902233374
Pump combination Bosch Rexroth series A4VG, type code A4VG110EP1/40AL+A4VG110EP1/40AL, material number R902233374. Axial piston unit: swashplate design, variable, nominal pressure 6500 psi (450 bar), maximum pressure 7250 psi (A4V). Operating mode: pump, closed circuit (G). Connector for solenoids: without connector (only for purely hydraulic control) (0). Additional function: neutral valve U = 12 V and mechanical stroke limiter, externally adjustable (P). DA control valve (only for NG110 and 125): DA control valve, fixed setting (1). Configuration of port and fastening threads: ports according to ISO 11926 with O-ring seal (ANSI), fastening thread according to ASME (A). Direction of rotation: viewed on drive shaft counter-clockwise (L).
- Number
- R902233374
- Type code
- A4VG110EP1/40AL+A4VG110EP1/40AL
- Group
- A4VG 110
- Edition
- 01/2020

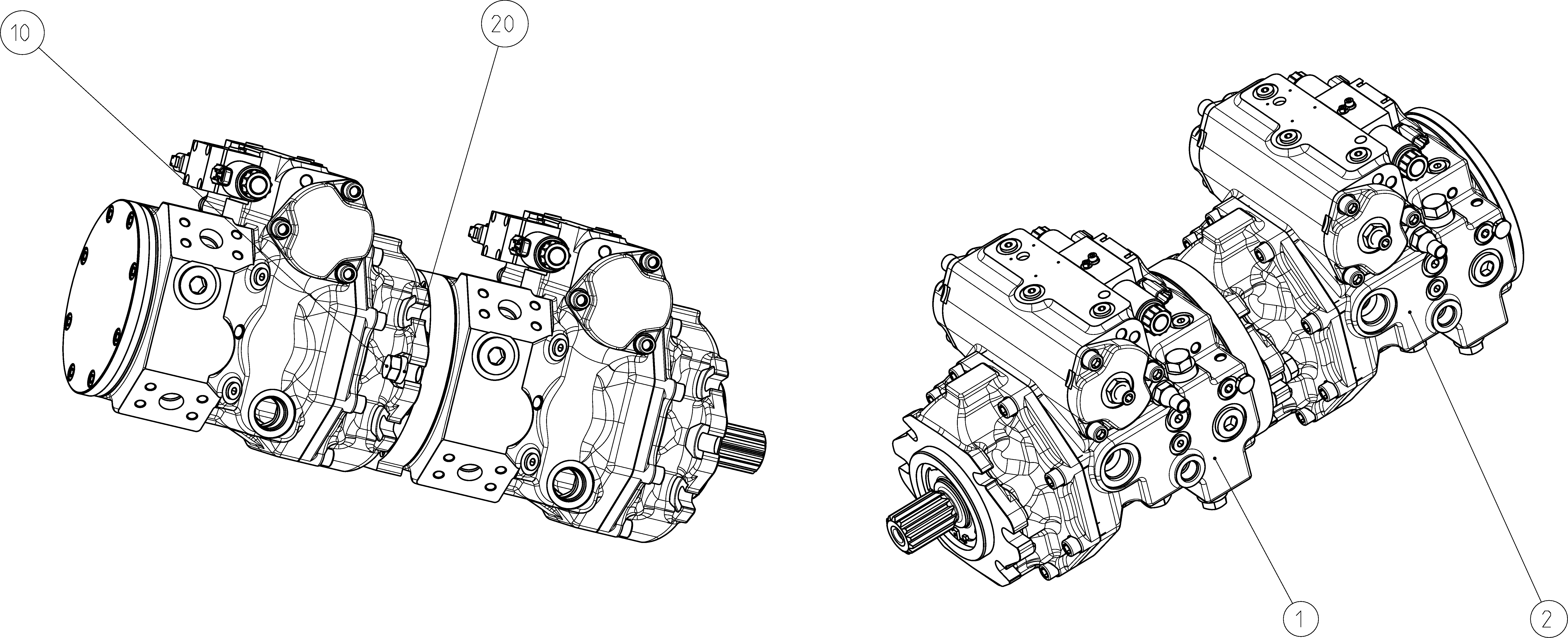

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902233372 | AXIAL-PISTON PUMP Assembly parts list →L | 1 | ||
| R902233373 | AXIAL-PISTON PUMP Assembly parts list →L | 1 | ||
| R909153318 | HEXAGON SCREW | 2 | ||
| R902040708 | WASHER | 2 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Axial piston unit | Swashplate design, variable, nominal pressure 6500 psi (450 bar), maximum pressure 7250 psi | A4V |
| Operating mode | Pump, closed circuit | G |
| Connector for solenoids | Without connector (only for purely hydraulic control) | 0 |
| Additional function | Neutral valve U = 12 V and mechanical stroke limiter, externally adjustable | P |
| DA control valve (only for NG110 and 125) | DA control valve, fixed setting | 1 |
| Series | Series 4, index 0 | 40 |
| Configuration of port and fastening threads | Ports according to ISO 11926 with O-ring seal (ANSI), fastening thread according to ASME | A |
| Direction of rotation | Viewed on drive shaft counter-clockwise | L |
