Unit · AXIAL-PISTON MOTOR
A6VE160HA2/63W-VZL017U0A-SR902233375
Axial piston motor Bosch Rexroth series A6VM, type code A6VE160HA2/63W-VZL017U0A-S, material number R902233375. Nominal size: NG 160. Axial piston unit: bent-axis design, variable (A6V). Control device: automatic control, high-pressure related with pressure increase Δp = 100 bar (HA2). Direction of rotation: viewed on drive shaft variable (W). Sealing material: FKM (fluoroelastomer) (V). Drive shaft: splined shaft DIN 5480 (Z). Working port: SAE working ports A and B at rear Flushing and boost-pressure valve, mounted 7 (017). Beginning of control: at Vg min (standard for HA) (A). Standard/special version: special version (-S).
- Number
- R902233375
- Type code
- A6VE160HA2/63W-VZL017U0A-S
- Group
- A6VE 160
- Edition
- 06/2020

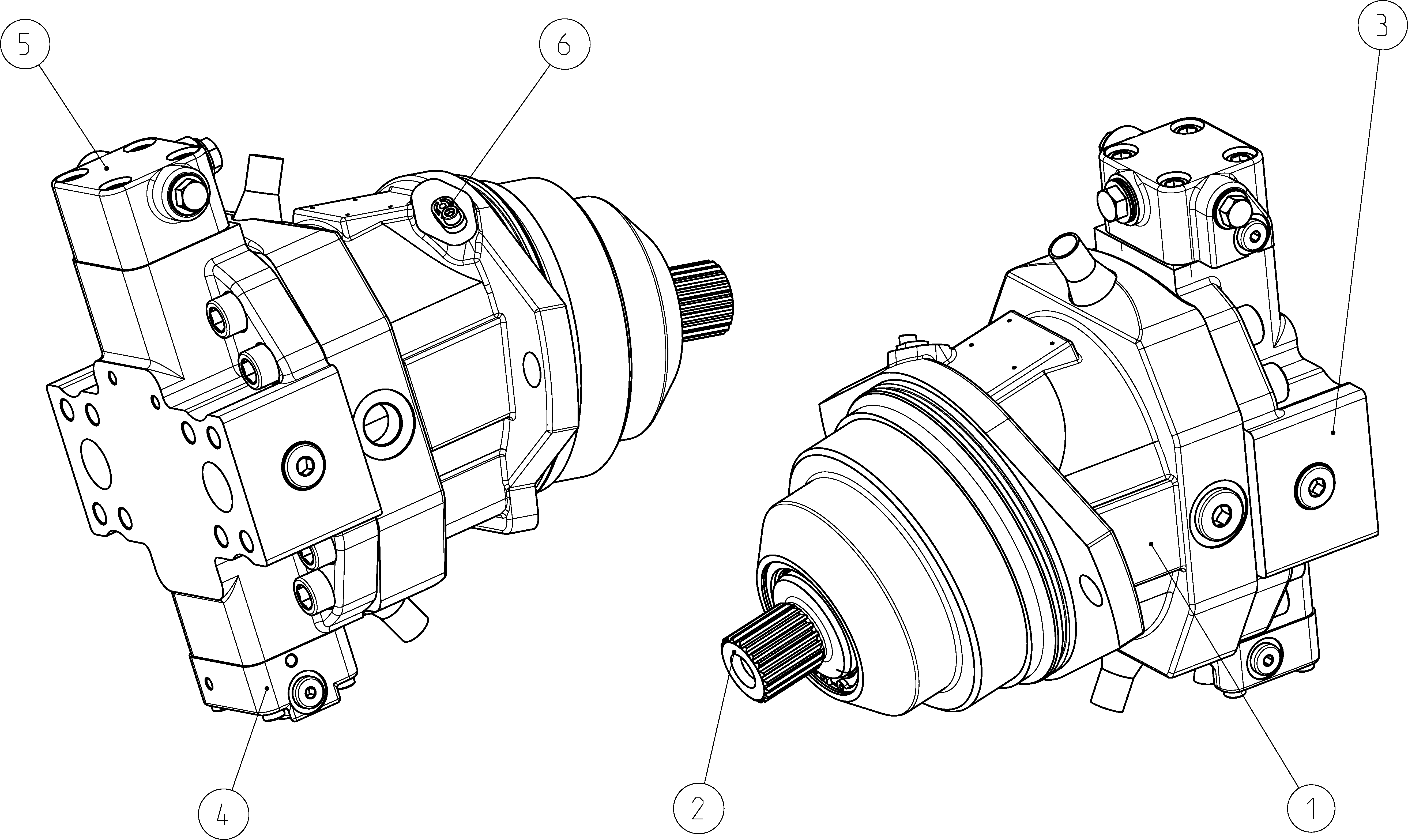

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902216359 | HOUSING Assembly parts list →L | 1 | ||
| R902277869 | ROTARY GROUP Assembly parts list →L | 1 | ||
| R902279463 | COVER PLATE Assembly parts list →L | 1 | ||
| R909604166 | CONTROL PART Assembly parts list →L | 1 | ||
| R902231866 | FLUSH/BOOST PRESSURE VALVE Assembly parts list →L | 1 | ||
| R902191651 | FLANGE COVER | 1 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Axial piston unit | Bent-axis design, variable | A6V |
| Size (NG) | 160 | 160 |
| Control device | Automatic control, high-pressure related with pressure increase Δp = 100 bar | HA2 |
| Series | Series 6, index 3 | 63 |
| Direction of rotation | Viewed on drive shaft variable | W |
| Sealing material | FKM (fluoroelastomer) | V |
| Drive shaft | Splined shaft DIN 5480 | Z |
| Working port | SAE working ports A and B at rear Flushing and boost-pressure valve, mounted 7 | 017 |
| Beginning of control | At Vg min (standard for HA) | A |
| Standard/special version | Special version | -S |
