Unit · AXIAL-PISTON PUMP
AA11VO130LG2S2/10R+AA4VG40DWD1/32R+A10VR902233418
Axial piston pump Bosch Rexroth series A11VO, type code AA11VO130LG2S2/10R+AA4VG40DWD1/32R+A10V, material number R902233418. Nominal size: NG 130. Axial piston unit: swashplate design, variable, nominal pressure 350 bar, maximum pressure 400 bar (A11V). Operating mode: pump, open circuit without charge pump (O). Control device: with override pilot-pressure related positive control, with load-sensing electric proportional override U = 24 V (LG2S2). Direction of rotation: viewed on drive shaft clockwise (R).
- Number
- R902233418
- Type code
- AA11VO130LG2S2/10R+AA4VG40DWD1/32R+A10V
- Group
- A11VO 130
- Edition
- 02/2020

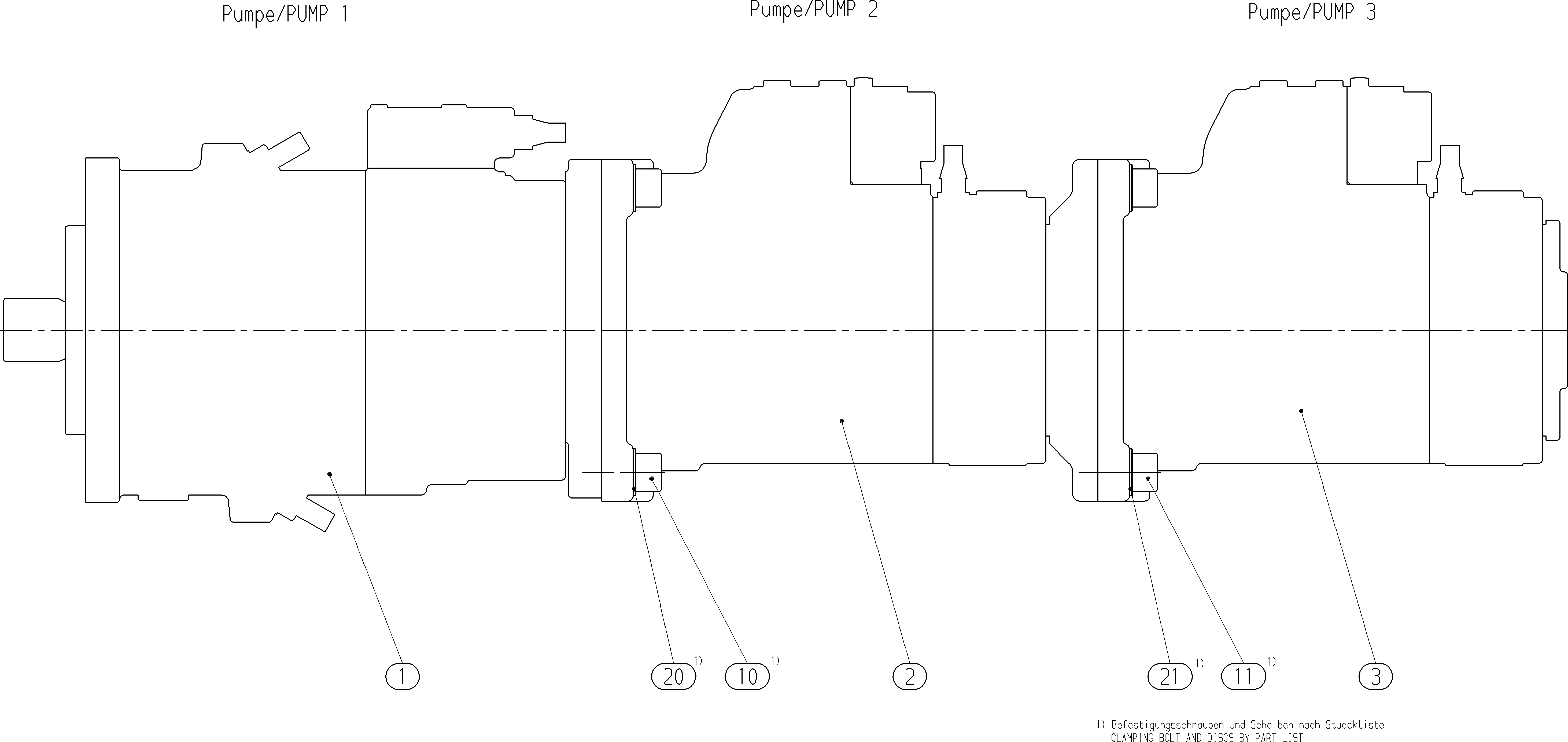

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902233416 | AXIAL-PISTON PUMP Assembly parts list →L | 1 | ||
| R902233417 | AXIAL-PISTON PUMP Assembly parts list →L | 1 | ||
| R902535521 | AXIAL-PISTON PUMP Assembly parts list →L | 1 | ||
| R909083129 | SOCKET HEAD CAP SCREW | 2 | ||
| R909083087 | SOCKET HEAD CAP SCREW | 2 | ||
| R902040708 | WASHER | 2 | ||
| R909430409 | WASHER | 2 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Axial piston unit | Swashplate design, variable, nominal pressure 350 bar, maximum pressure 400 bar | A11V |
| Operating mode | Pump, open circuit without charge pump | O |
| Size (NG) | 130 | 130 |
| Control device | with override pilot-pressure related positive control, with load-sensing electric proportional override U = 24 V | LG2S2 |
| Index | Size 40 … 130 | 0 |
| Direction of rotation | Viewed on drive shaft clockwise | R |
