Unit · AXIAL-PISTON PUMP
AA11VO95LG2S2/10R-NZG07K80P-SR902233686
Axial piston pump Bosch Rexroth series A11VO, type code AA11VO95LG2S2/10R-NZG07K80P-S, material number R902233686. Nominal size: NG 95. Axial piston unit: swashplate design, variable, nominal pressure 350 bar, maximum pressure 400 bar (A11V). Operating mode: pump, open circuit without charge pump (O). Control device: with override pilot-pressure related positive control, with load-sensing electric proportional override U = 24 V (LG2S2). Direction of rotation: viewed on drive shaft clockwise (R). Sealing material: NBR (nitrile rubber), shaft seal ring FKM (fluorocarbon rubber) (N). Drive shaft: splined shaft DIN 5480 for single and combination pump (Z). Mounting flange: SAE J (SAE 3) (G). Working port: SAE pressure and suction port lateral, opposite, metric fastening thread according to DIN 13. Port thread, UNF with O-ring based on ISO 11926 (07). Through drive: 127-2/-2+4 (C) W 30 × 2 × 14 × 9g (K80). Connector for solenoids: DEUTSCH connector molded 2-pin, without suppressor diode (P). Standard/special version: special version (S).
- Number
- R902233686
- Type code
- AA11VO95LG2S2/10R-NZG07K80P-S
- Group
- A11VO 95
- Edition
- 05/2020

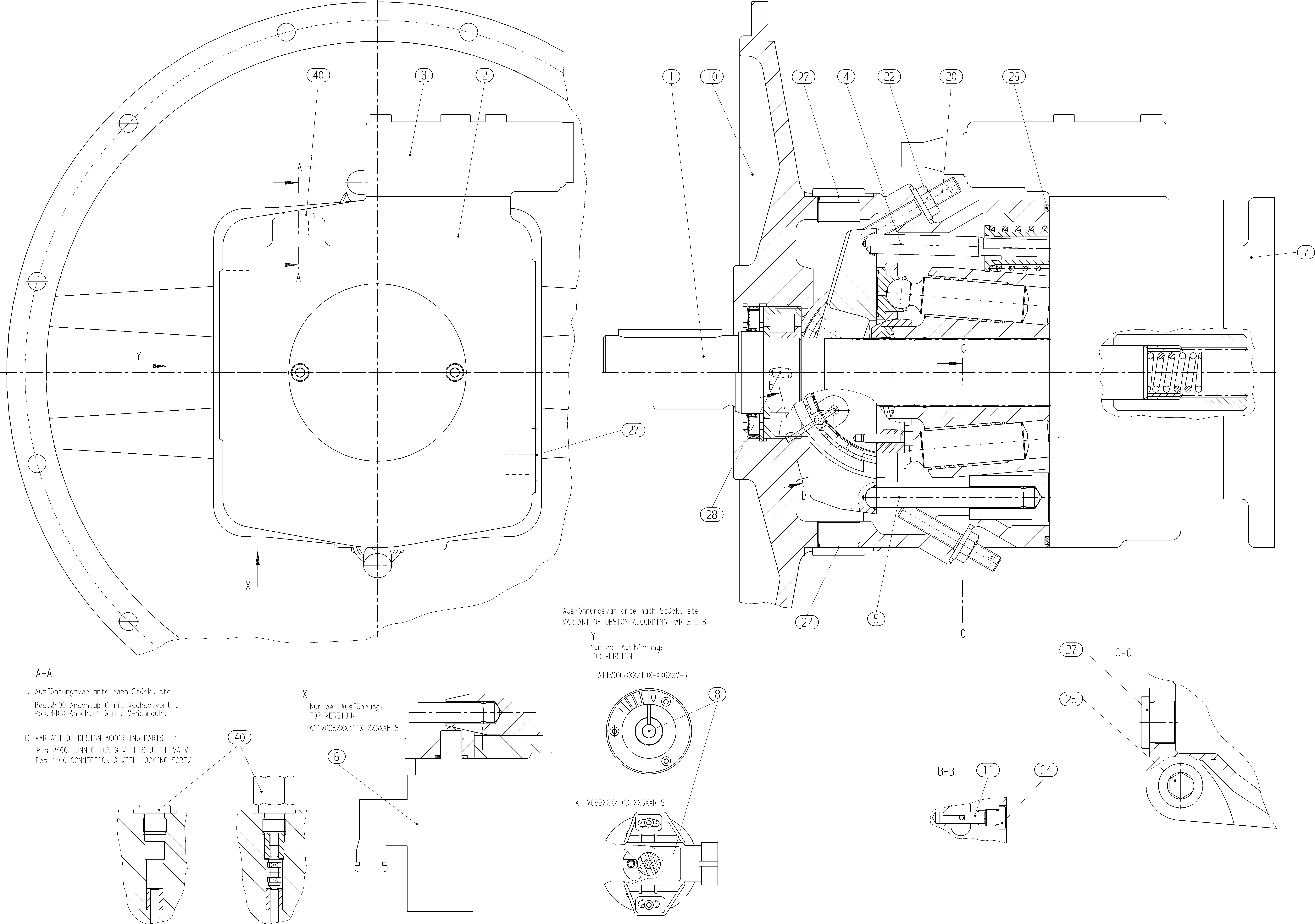

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902244466 | ROTARY GROUP Assembly parts list →L | 1 | ||
| R902279576 | CONNECTION PLATE, RL Assembly parts list →L | 1 | ||
| R902246927 | REGULATOR Assembly parts list →L | 1 | ||
| R909602645 | CONTROL Assembly parts list →L | 1 | ||
| R909607435 | CONTROL Assembly parts list →L | 1 | ||
| R902195793 | BELL HOUSING Assembly parts list →L | 1 | ||
| R902097845 | HOUSING | 1 | ||
| R902132714 | PIVOT PIN | 4 | ||
| R909449078 | SETSCREW | 2 | ||
| R909152426 | SEALING NUTD | 2 | ||
| R909153364 | SCREW PLUGD | 4 | ||
| R909830782 | SOCKET HEAD CAP SCREW | 4 | ||
| R909087781 | O-RINGD | 1 | ||
| R909154480 | SCREW PLUGD | 1 | ||
| R913016373 | SLOTTED SPRING PIN | 2 | ||
| R909153371 | SCREW PLUGD | 1 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Axial piston unit | Swashplate design, variable, nominal pressure 350 bar, maximum pressure 400 bar | A11V |
| Operating mode | Pump, open circuit without charge pump | O |
| Size (NG) | 95 | 95 |
| Control device | with override pilot-pressure related positive control, with load-sensing electric proportional override U = 24 V | LG2S2 |
| Index | Size 40 … 130 | 0 |
| Direction of rotation | Viewed on drive shaft clockwise | R |
| Sealing material | NBR (nitrile rubber), shaft seal ring FKM (fluorocarbon rubber) | N |
| Drive shaft | Splined shaft DIN 5480 for single and combination pump | Z |
| Mounting flange | SAE J (SAE 3) | G |
| Working port | SAE pressure and suction port lateral, opposite, metric fastening thread according to DIN 13. Port thread, UNF with O-ring based on ISO 11926 | 07 |
| Through drive | 127-2/-2+4 (C) W 30 × 2 × 14 × 9g | K80 |
| Connector for solenoids | DEUTSCH connector molded 2-pin, without suppressor diode | P |
| Standard/special version | Special version | S |
