Unit · AXIAL-PISTON PUMP
A24VG110-110EPMEPM00000/10DRE4T1C1V8A6-SR902233825
Axial piston pump Bosch Rexroth series A24VG, type code A24VG110-110EPMEPM00000/10DRE4T1C1V8A6-S, material number R902233825. Axial piston unit: swashplate design, variable, nominal pressure 450 bar, maximum pressure 500 bar (A24V). Operating mode: double pump in closed circuit (G). Swivel angle sensor: without swivel angle sensor (0). Additional function pump 1: without additional function (0). Additional function pump 2: without additional function (0). Additional function 2: without additional function (0). Version of port and fastening threads: ports according to ISO 11926 with O-ring seal (ANSI), metric fastening thread according to DIN 13 at the working port and at the through drive (D). Direction of rotation: viewed on drive shaft clockwise (R). Mounting flange (pump 1): SAE J744 165-4 (E4). Drive shaft (pump 1): splined shaft 1 3/4 in 13T 8/16DP ANSI B92.1a–1976 (T1). Through drive, version metric fastening thread: 127-2 (C) C1 1 3/8 in 21T 16/32DP V8 (C1V8). Standard/special version: special version (S).
- Number
- R902233825
- Type code
- A24VG110-110EPMEPM00000/10DRE4T1C1V8A6-S
- Group
- A24VG 110110
- Edition
- 06/2020

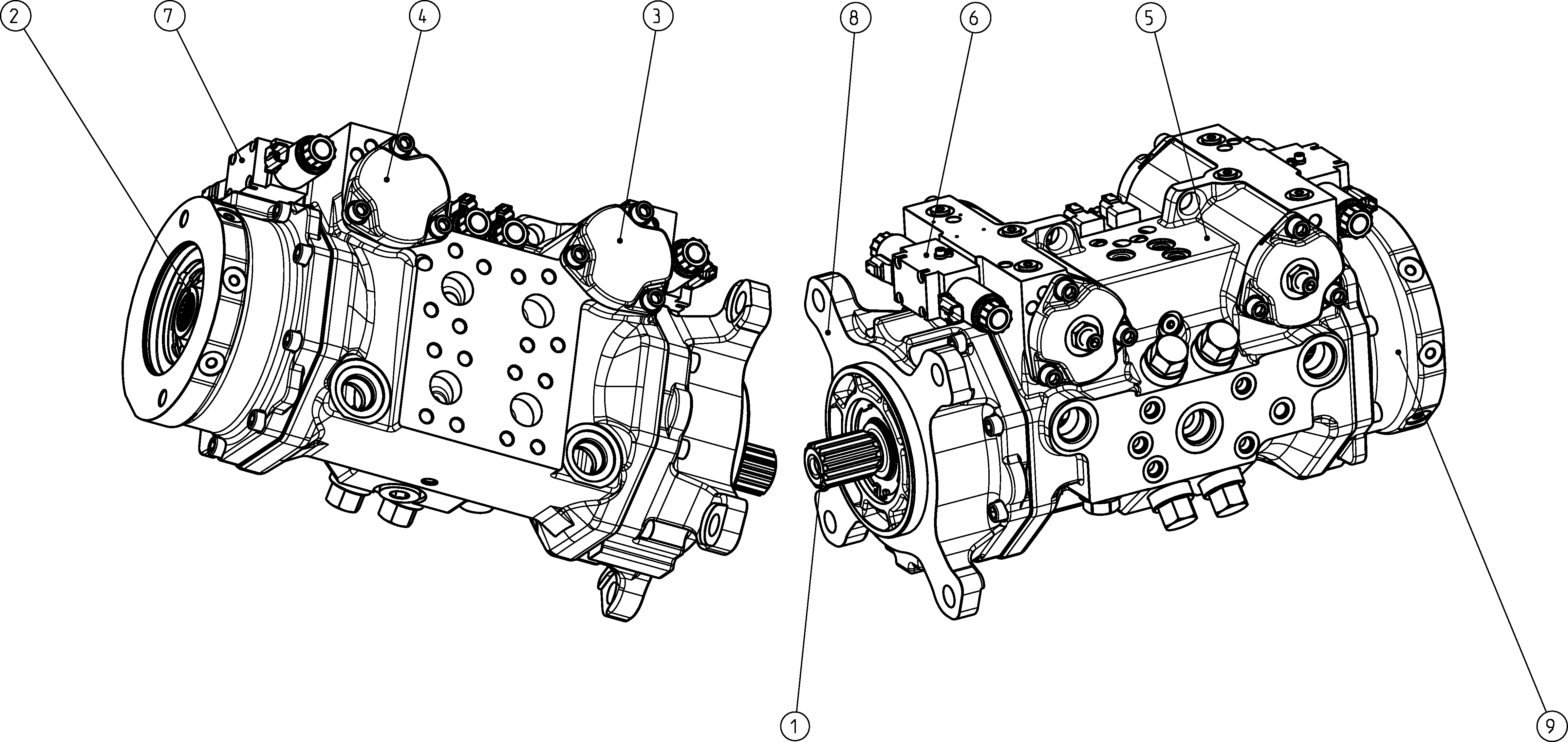

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902244129 | ROTARY GROUP Assembly parts list →L | 1 | ||
| R902244128 | ROTARY GROUP Assembly parts list →L | 1 | ||
| R902114198 | CONTROL Assembly parts list →L | 1 | ||
| R902114198 | CONTROL Assembly parts list →L | 1 | ||
| R902258115 | PUMP HOUSING Assembly parts list →L | 1 | ||
| R902115438 | CONTROL MODULE Assembly parts list →L | 1 | ||
| R902115438 | CONTROL MODULE Assembly parts list →L | 1 | ||
| R902244160 | BEARING FLANGE Assembly parts list →L | 1 | ||
| R902230612 | BEARING FLANGE Assembly parts list →L | 1 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Axial piston unit | Swashplate design, variable, nominal pressure 450 bar, maximum pressure 500 bar | A24V |
| Operating mode | Double pump in closed circuit | G |
| Swivel angle sensor | Without swivel angle sensor | 0 |
| Additional function pump 1 | Without additional function | 0 |
| Additional function pump 2 | Without additional function | 0 |
| Additional function 2 | Without additional function | 0 |
| Series | Series 1, index 0 | 10 |
| Version of port and fastening threads | Ports according to ISO 11926 with O-ring seal (ANSI), metric fastening thread according to DIN 13 at the working port and at the through drive | D |
| Direction of rotation | Viewed on drive shaft clockwise | R |
| Mounting flange (pump 1) | SAE J744 165-4 | E4 |
| Drive shaft (pump 1) | Splined shaft 1 3/4 in 13T 8/16DP ANSI B92.1a–1976 | T1 |
| Through drive, version metric fastening thread | 127-2 (C) C1 1 3/8 in 21T 16/32DP V8 | C1V8 |
| Standard/special version | Special version | S |
