Unit · AXIAL-PISTON MOTOR
A6VE085HA2T30002F/71MWV0Y2Z920U-YR902233951
Axial piston motor Bosch Rexroth series A6VE, type code A6VE085HA2T30002F/71MWV0Y2Z920U-Y, material number R902233951. Nominal size: NG 85. Axial piston unit: bent-axis design, variable, nominal pressure 450 bar, maximum pressure 530 bar (NG60 to 215) (NG280) (A6V). Operating mode: plug-in motor (E). Control device: automatic control High pressure dependent, positive control with pressure increase Δp = 100 bar (HA2). Pressure control/override: override of the HA1, HA2, and HA3 controls, hydraulically remote controlled, proportional (T3). Additional function 1: without additional function (0). Additional function 2: without additional function (0). Setting range for displacement: short moderate (F). Version of port and fastening threads: metric ports based on ISO 6149 with O-ring seal, metric fastening thread according to DIN (M). Direction of rotation: viewed on drive shaft, bidirectional (W). Sealing material: FKM (fluoroelastomer) (V). Drive shaft bearing: standard bearing (0). Mounting flange: ISO 3019-2 190-2 (Y2). Drive shaft: splined shaft DIN 5480 W40×2×18×9g (Z9). Working port: SAE working ports A and B at side, opposite (2).
- Number
- R902233951
- Type code
- A6VE085HA2T30002F/71MWV0Y2Z920U-Y
- Group
- A6VE 85
- Edition
- 06/2020

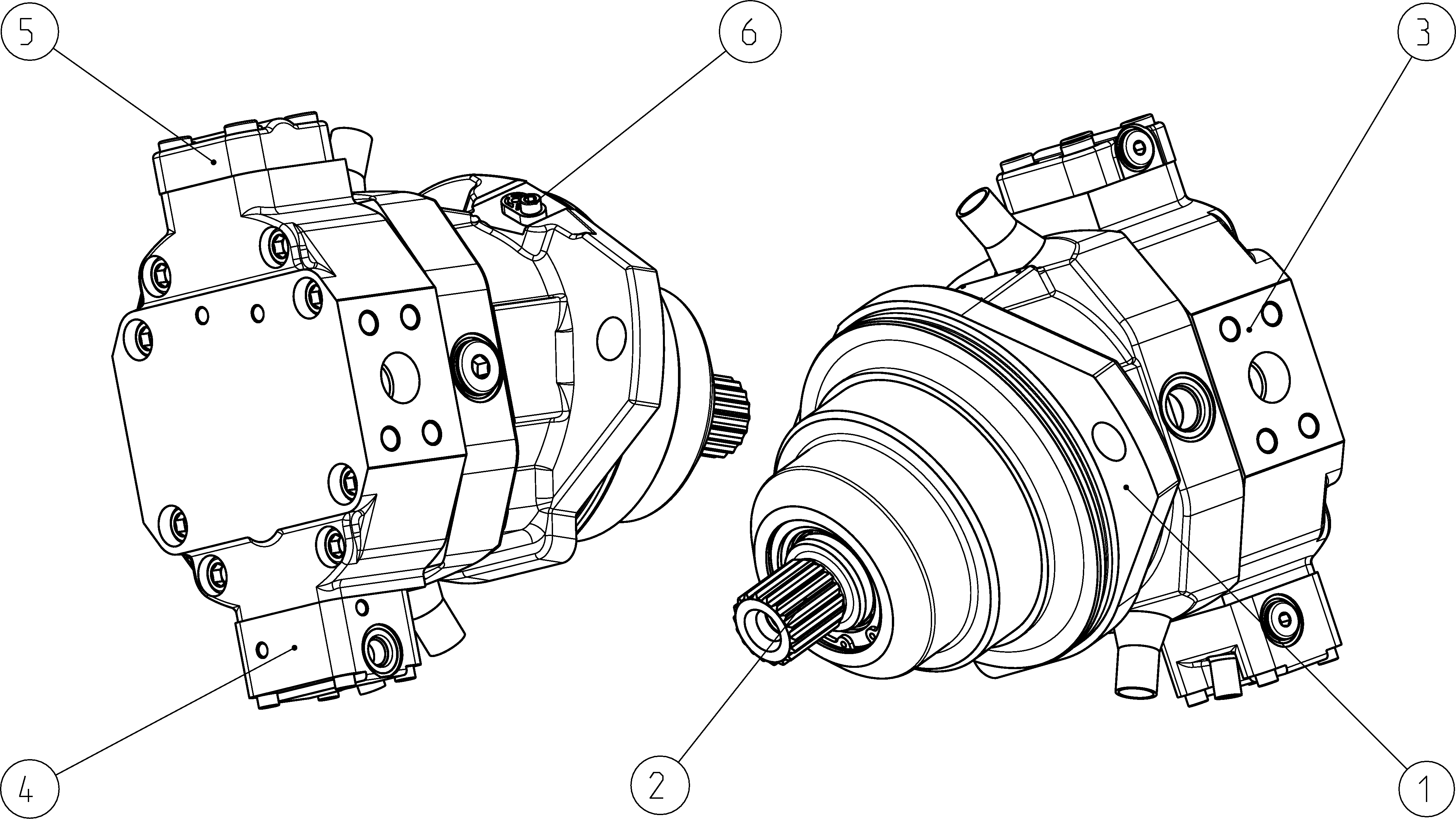

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902235828 | HOUSING Assembly parts list →L | 1 | ||
| R902126917 | ROTARY GROUP Assembly parts list →L | 1 | ||
| R902182242 | COVER PLATE Assembly parts list →L | 1 | ||
| R902207531 | CONTROL PART Assembly parts list →L | 1 | ||
| R902253048 | COVER Assembly parts list →L | 1 | ||
| R902191651 | FLANGE COVER | 1 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Axial piston unit | Bent-axis design, variable, nominal pressure 450 bar, maximum pressure 530 bar (NG60 to 215) (NG280) | A6V |
| Operating mode | Plug-in motor | E |
| Size (NG) | 85 | 085 |
| Control device | Automatic control High pressure dependent, positive control with pressure increase Δp = 100 bar | HA2 |
| Pressure control/override | Override of the HA1, HA2, and HA3 controls, hydraulically remote controlled, proportional | T3 |
| Without connector (without solenoid, only for hydraulic control) | 0 | |
| Additional function 1 | Without additional function | 0 |
| Additional function 2 | Without additional function | 0 |
| Setting range for displacement | short moderate | F |
| Series | Series 7, Index 1 | 71 |
| Version of port and fastening threads | Metric ports based on ISO 6149 with O-ring seal, metric fastening thread according to DIN | M |
| Direction of rotation | Viewed on drive shaft, bidirectional | W |
| Sealing material | FKM (fluoroelastomer) | V |
| Drive shaft bearing | Standard bearing | 0 |
| Mounting flange | ISO 3019-2 190-2 | Y2 |
| Drive shaft | Splined shaft DIN 5480 W40×2×18×9g | Z9 |
| Working port | SAE working ports A and B at side, opposite | 2 |
| Valve | Without valve | 0 |
| Speed sensor | Prepared for DSA speed sensor | U |
| Standard/special version | Standard version with installation variants, e.g. T ports open and closed contrary to standard | Y |
