Unit · AXIAL-PISTON MOTOR
A6VE055EP600P000B/65MWV0P2Z82BV-0R902237029
Axial piston motor Bosch Rexroth series A6VE, type code A6VE055EP600P000B/65MWV0P2Z82BV-0, material number R902237029. Nominal size: NG 55. Axial piston unit: bent-axis design, variable (A6V). Operating mode: plug-in motor (E). Control device: electric Negative control U = 24 V (EP6). Pressure control/override: without pressure control/override (00). Additional function 1: without additional function (0). Additional function 2: without additional function (0). Stroking time damping: without damping (standard with HP and EP) (0). Setting range for displacement: without setting screw Moderate (B). Version of port and fastening threads: metric ports based on ISO 6149 with O-ring seal, metric fastening threads according to DIN 13 (M). Direction of rotation: viewed on drive shaft, bidirectional (W). Sealing material: FKM (fluorocarbon rubber) (V). Drive shaft bearing: standard bearing (0). Mounting flange: ISO 3019-2 160-2 (P2). Drive shaft: splined shaft DIN 5480 W35×2×16×9g (Z8).
- Number
- R902237029
- Type code
- A6VE055EP600P000B/65MWV0P2Z82BV-0
- Group
- A6VE 55
- Edition
- 06/2020

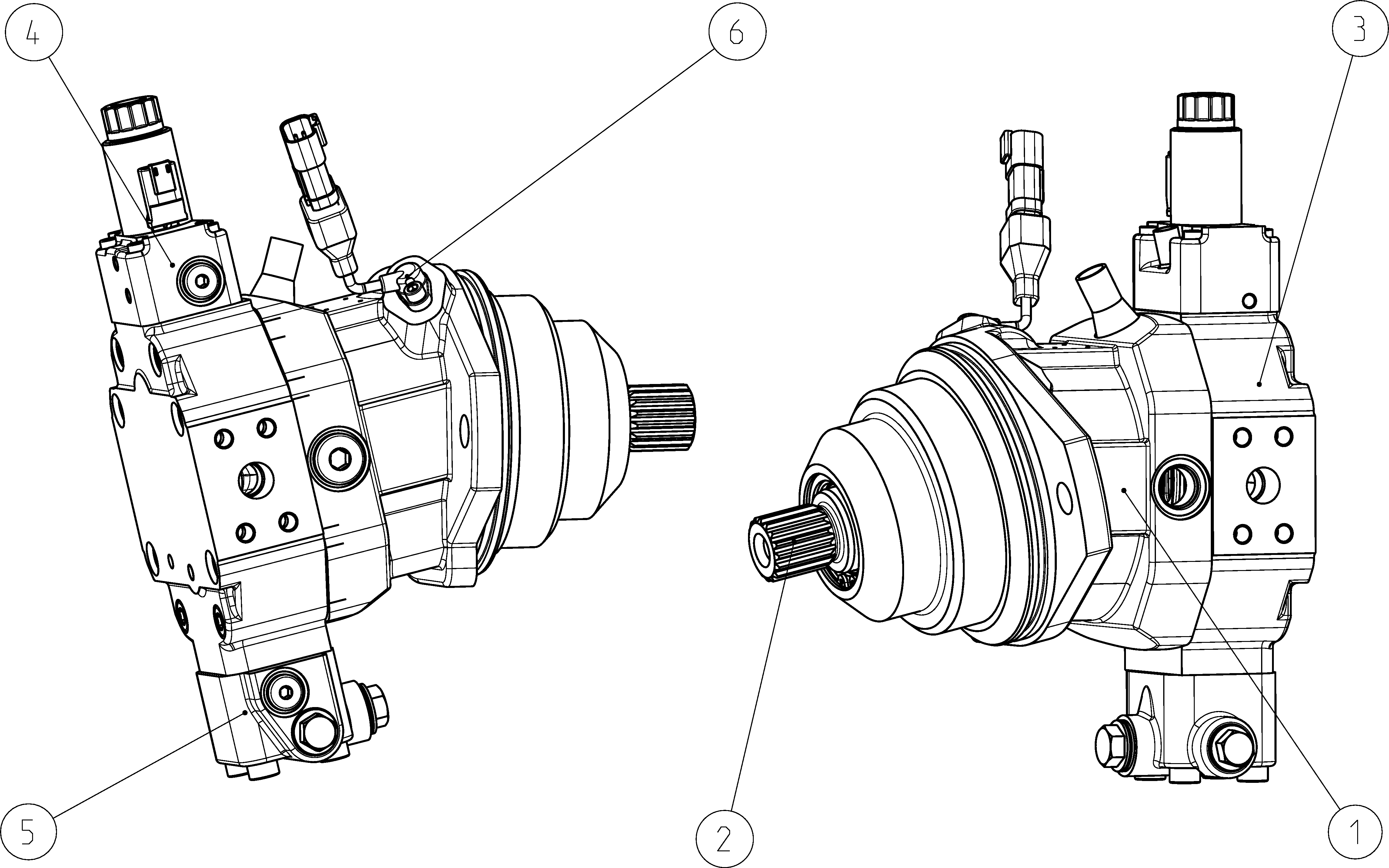

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902194307 | HOUSING Assembly parts list →L | 1 | ||
| R909604698 | ROTARY GROUP Assembly parts list →L | 1 | ||
| R902110222 | COVER PLATE Assembly parts list →L | 1 | ||
| R902151851 | CONTROL PART Assembly parts list →L | 1 | ||
| R902151861 | FLUSH/BOOST PRESSURE VALVE Assembly parts list →L | 1 | ||
| R902236085 | SENSOR Assembly parts list →L | 1 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Axial piston unit | Bent-axis design, variable | A6V |
| Operating mode | Plug-in motor | E |
| Size (NG) | 55 | 055 |
| Control device | electric Negative control U = 24 V | EP6 |
| Pressure control/override | Without pressure control/override | 00 |
| DEUTSCH - molded connector, 2-pin, without suppressor diode | P | |
| Additional function 1 | Without additional function | 0 |
| Additional function 2 | Without additional function | 0 |
| Stroking time damping | Without damping (standard with HP and EP) | 0 |
| Setting range for displacement | Without setting screw Moderate | B |
| Series | Series 6, index 5 | 65 |
| Version of port and fastening threads | Metric ports based on ISO 6149 with O-ring seal, metric fastening threads according to DIN 13 | M |
| Direction of rotation | Viewed on drive shaft, bidirectional | W |
| Sealing material | FKM (fluorocarbon rubber) | V |
| Drive shaft bearing | Standard bearing | 0 |
| Mounting flange | ISO 3019-2 160-2 | P2 |
| Drive shaft | Splined shaft DIN 5480 W35×2×16×9g | Z8 |
| Working port | SAE working ports A and B at side, opposite | 2 |
| Valve | Flushing flow [l/min] qv, δp = pND ‒ = 25 bar and = 10 mm2/s pG ν 5 | B |
| Standard/special version | Standard version | 0 |
