Unit · AXIAL-PISTON PUMP
A4VG145EP2DT0T0/40MRN+A10VO60DFR1R902237328
Axial piston pump Bosch Rexroth series A4VG, type code A4VG145EP2DT0T0/40MRN+A10VO60DFR1, material number R902237328. Nominal size: NG 145. Axial piston unit: swashplate design, variable, nominal pressure 450 bar, maximum pressure 500 bar (A4V). Operating mode: pump, closed circuit (G). Control device: proportional control, electric U = 24 V (EP2). Pressure cut-off: pressure cut-off, with bypass Fixed setting, hydraulic, mechanical (D). Swivel angle sensor: without swivel angle sensor (0). Additional function: stroking chamber pressure port X X (T). DA control valve (only for NG110 and 125): without DA control valve (0). Configuration of port and fastening threads: metric ports according to ISO 6149 with O-ring seal, metric fastening thread according to DIN (M). Direction of rotation: viewed on drive shaft clockwise (R). Sealing material: NBR (nitrile rubber), shaft seal in FKM (fluoroelastomer) (N).
- Number
- R902237328
- Type code
- A4VG145EP2DT0T0/40MRN+A10VO60DFR1
- Group
- A10VO 60
- Edition
- 01/2020

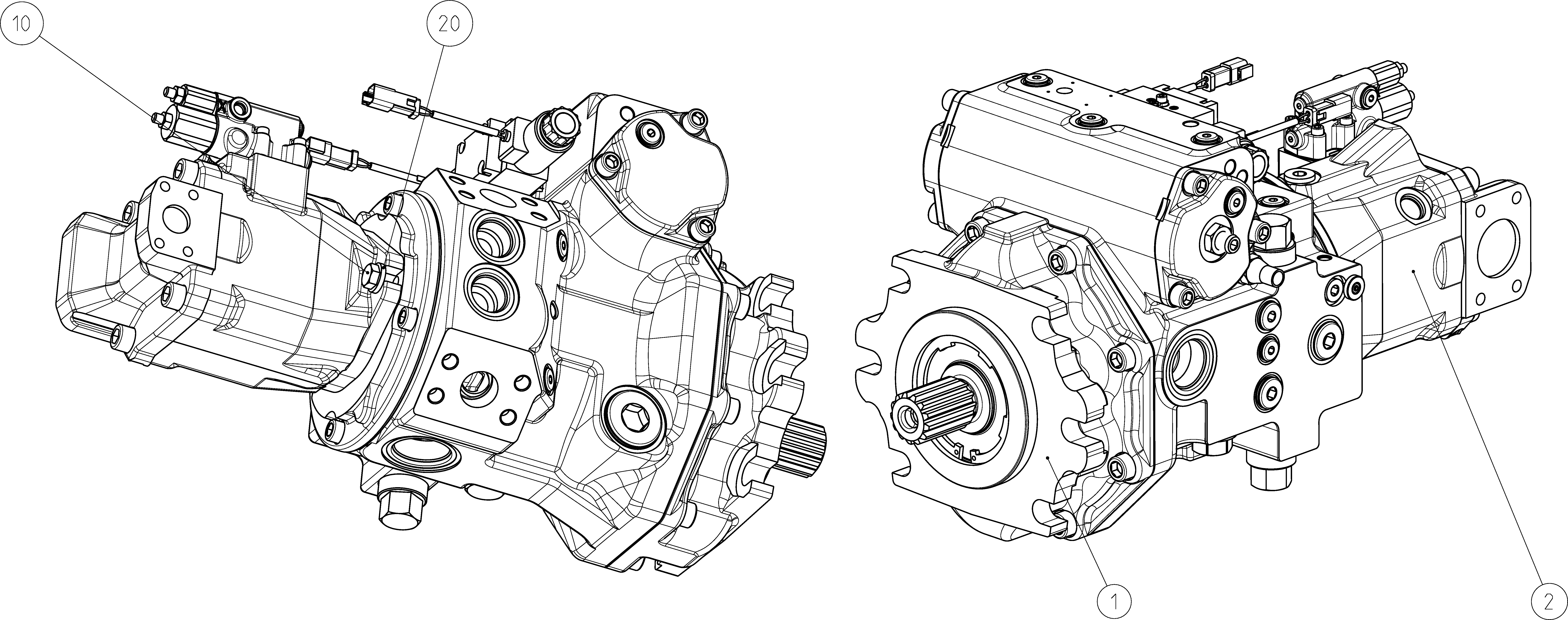

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902237327 | AXIAL-PISTON PUMP Assembly parts list →L | 1 | ||
| R902538652 | AXIAL-PISTON PUMP Assembly parts list →L | 1 | ||
| R909083708 | HEXAGON SCREW | 2 | ||
| R909430409 | WASHER | 2 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Axial piston unit | Swashplate design, variable, nominal pressure 450 bar, maximum pressure 500 bar | A4V |
| Operating mode | Pump, closed circuit | G |
| Size (NG) | 145 | 145 |
| Control device | Proportional control, electric U = 24 V | EP2 |
| Pressure cut-off | Pressure cut-off, with bypass Fixed setting, hydraulic, mechanical | D |
| Swivel angle sensor | Without swivel angle sensor | 0 |
| Additional function | Stroking chamber pressure port X X | T |
| DA control valve (only for NG110 and 125) | Without DA control valve | 0 |
| Configuration of port and fastening threads | Metric ports according to ISO 6149 with O-ring seal, metric fastening thread according to DIN | M |
| Direction of rotation | Viewed on drive shaft clockwise | R |
| Sealing material | NBR (nitrile rubber), shaft seal in FKM (fluoroelastomer) | N |
