Unit · AXIAL-PISTON MOTOR
A6VM115EP100PN00A/71CRV0P4Z91D0-SR902237355
Axial piston motor Bosch Rexroth series A6VM, type code A6VM115EP100PN00A/71CRV0P4Z91D0-S, material number R902237355. Nominal size: NG 115. Axial piston unit: bent-axis design, variable displacement (A6V). Operating mode: motor (M). Control device: proportional control, positive control U = 12 V electric (EP1). Pressure control/override: without pressure control/override (00). Connector for solenoids: DEUTSCH - molded connector, 2-pin, without suppressor diode (P). Swivel angle sensor: neutral position switch (N). Additional function: without additional function (0). Stroking time damping: without damping (standard with HP and EP) (0). Setting range for displacement: without setting screw short (0-adjustable) (A). Sealing material: FKM (fluorocarbon rubber) (V). Drive shaft bearing: standard bearing (0). Mounting flange: ISO 3019-2 160-4 (P4). Drive shaft: splined shaft DIN 5480 W40×2×18×9g (Z9). Working port: SAE working port A and B at rear (1).
- Number
- R902237355
- Type code
- A6VM115EP100PN00A/71CRV0P4Z91D0-S
- Group
- A6VM 115
- Edition
- 06/2020

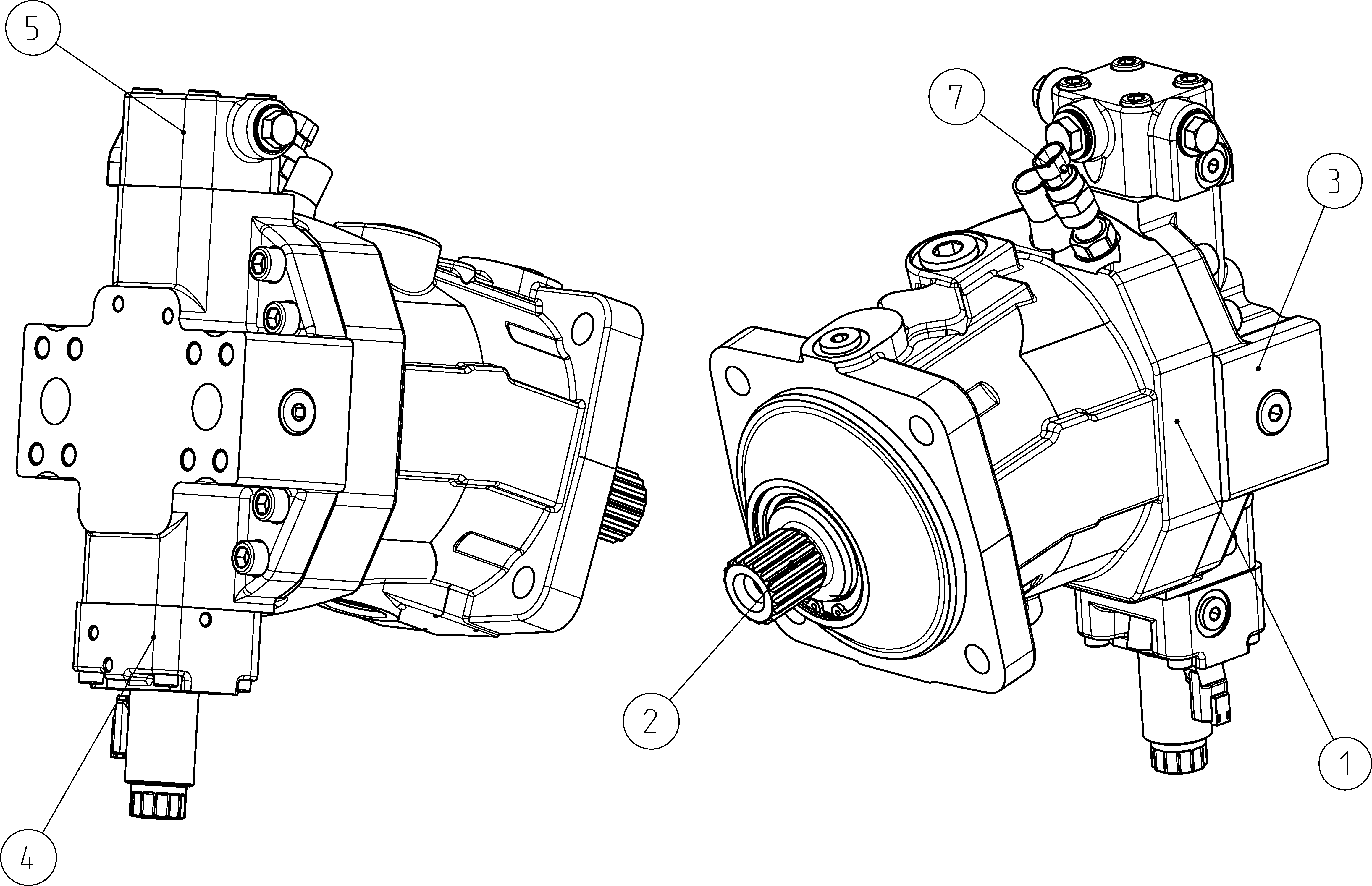

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902238156 | HOUSING Assembly parts list →L | 1 | ||
| R902253132 | ROTARY GROUP Assembly parts list →L | 1 | ||
| R902124355 | COVER PLATE Assembly parts list →L | 1 | ||
| R902139903 | CONTROL PART Assembly parts list →L | 1 | ||
| R902203957 | FLUSH/BOOST PRESSURE VALVE Assembly parts list →L | 1 | ||
| R913039295 | SWITCH | 1 | ||
| 98 | R902095791 | SEAL KIT | 1 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Axial piston unit | Bent-axis design, variable displacement | A6V |
| Operating mode | Motor | M |
| Size (NG) | 115 | 115 |
| Control device | Proportional control, positive control U = 12 V electric | EP1 |
| Pressure control/override | Without pressure control/override | 00 |
| Connector for solenoids | DEUTSCH - molded connector, 2-pin, without suppressor diode | P |
| Swivel angle sensor | Neutral position switch | N |
| Additional function | Without additional function | 0 |
| Stroking time damping | Without damping (standard with HP and EP) | 0 |
| Setting range for displacement | Without setting screw short (0-adjustable) | A |
| Series | Series 7, index 1 (nominal pressure 450 bar) | 71 |
| Sealing material | FKM (fluorocarbon rubber) | V |
| Drive shaft bearing | Standard bearing | 0 |
| Mounting flange | ISO 3019-2 160-4 | P4 |
| Drive shaft | Splined shaft DIN 5480 W40×2×18×9g | Z9 |
| Working port | SAE working port A and B at rear | 1 |
| Valve | 10 | D |
| Speed sensor | Without speed sensor | 0 |
| Standard/special version | Special version | S |
