Unit · AXIAL-PISTON PUMP
A4VG085XX20PR00/40MLNC6T11UB2S5CE00-SR902237440
Axial piston pump Bosch Rexroth series A4VG, type code A4VG085XX20PR00/40MLNC6T11UB2S5CE00-S, material number R902237440. Nominal size: NG 85. Axial piston unit: swashplate design, variable, nominal pressure 450 bar, maximum pressure 500 bar (A4V). Operating mode: pump, closed circuit (G). Pressure cut-off: without pressure cut-off without bypass (0). Connector for solenoids: DEUTSCH molded connector, 2-pin – without suppressor diode (P). Swivel angle sensor: electric swivel angle sensor (DWS20-1, 3-pin) (R). Additional function: without additional function (0). DA control valve (only for NG110 and 125): without DA control valve (0). Configuration of port and fastening threads: metric ports according to ISO 6149 with O-ring seal, metric fastening thread according to DIN (M). Direction of rotation: viewed on drive shaft counter-clockwise (L). Sealing material: NBR (nitrile rubber), shaft seal in FKM (fluoroelastomer) (N). Mounting flange: SAE J744 127-2/ (C6). Drive shaft: splined shaft ANSI B92.1a–1976 1 3/4 in 13T 8/16DP (T1). Working port: SAE working port A and B, on left side (45° left) (1). Boost pump and rotary group configuration: standard rotary group without boost pump (U).
- Number
- R902237440
- Type code
- A4VG085XX20PR00/40MLNC6T11UB2S5CE00-S
- Group
- A4VG 85
- Edition
- 01/2020

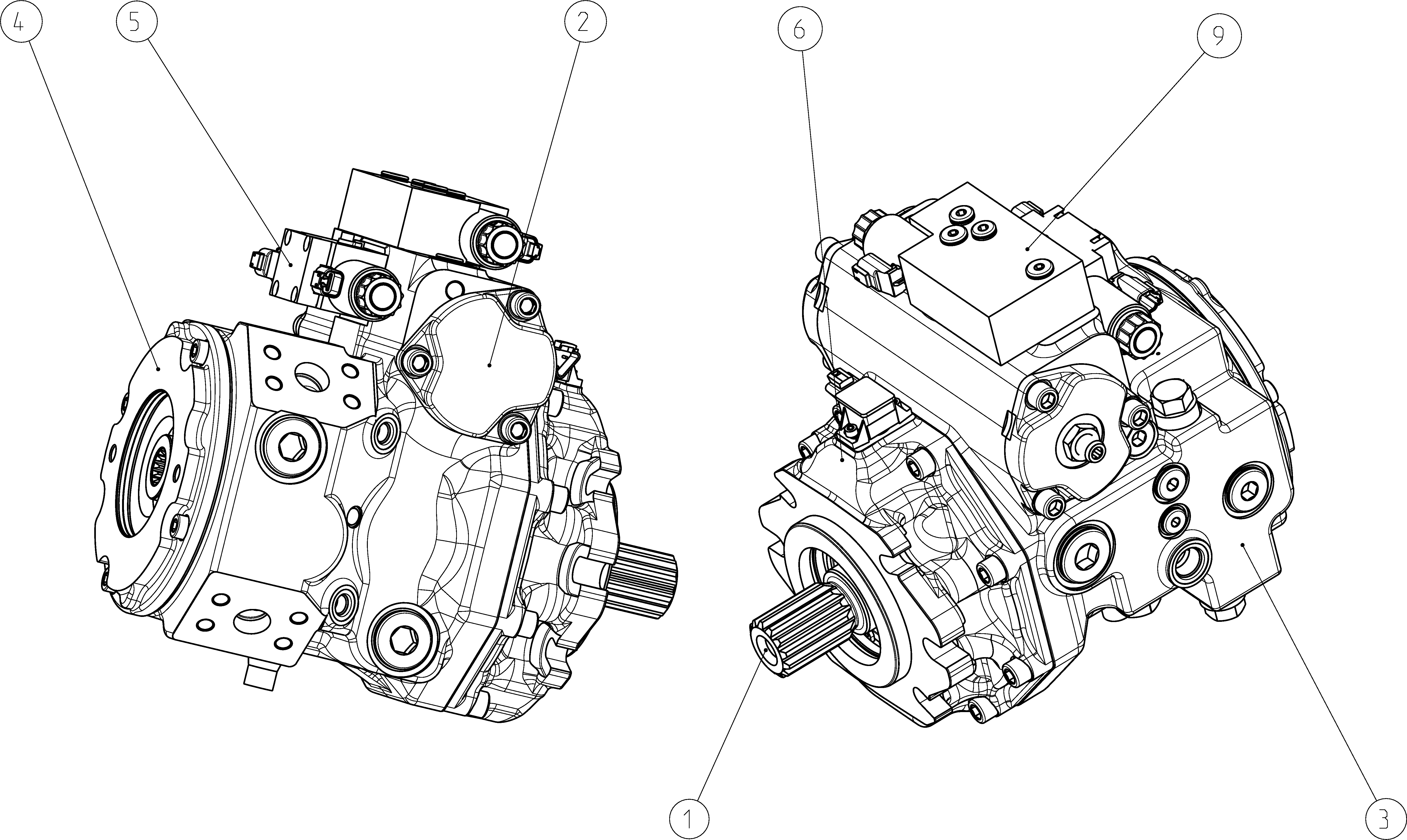

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902244443 | ROTARY GROUP Assembly parts list →L | 1 | ||
| R902114280 | CONTROL Assembly parts list →L | 1 | ||
| R902236652 | PUMP HOUSING Assembly parts list →L | 1 | ||
| R902201268 | BELL HOUSING Assembly parts list →L | 1 | ||
| R902139274 | CONTROL MODULE Assembly parts list →L | 1 | ||
| R902114430 | BEARING FLANGE Assembly parts list →L | 1 | ||
| R902190994 | PRESSURE REDUCING VALVE Assembly parts list →L | 1 | ||
| 17 | R902236905 | PROTECTIVE CAP | 1 | |
| 65 | R909438015 | COVER Assembly parts list →LD | 1 | |
| 98 | R902095815 | SEAL KIT | 1 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Axial piston unit | Swashplate design, variable, nominal pressure 450 bar, maximum pressure 500 bar | A4V |
| Operating mode | Pump, closed circuit | G |
| Size (NG) | 85 | 085 |
| Pressure cut-off | Without pressure cut-off without bypass | 0 |
| Connector for solenoids | DEUTSCH molded connector, 2-pin – without suppressor diode | P |
| Swivel angle sensor | Electric swivel angle sensor (DWS20-1, 3-pin) | R |
| Additional function | Without additional function | 0 |
| DA control valve (only for NG110 and 125) | Without DA control valve | 0 |
| Configuration of port and fastening threads | Metric ports according to ISO 6149 with O-ring seal, metric fastening thread according to DIN | M |
| Direction of rotation | Viewed on drive shaft counter-clockwise | L |
| Sealing material | NBR (nitrile rubber), shaft seal in FKM (fluoroelastomer) | N |
| Mounting flange | SAE J744 127-2/ | C6 |
| Drive shaft | Splined shaft ANSI B92.1a–1976 1 3/4 in 13T 8/16DP | T1 |
| Working port | SAE working port A and B, on left side (45° left) | 1 |
| Boost pump and rotary group configuration | Standard rotary group without boost pump | U |
| Through drive | 101-2 (B) B2 1 in 15T 16/32DP S5 | B2S5 |
| Filtration boost circuit/external boost pressure supply | External boost pressure supply (on version without integrated boost pump) | E |
| Pressure sensor | Without pressure sensor | 0 |
| Other sensors | Without sensor | 0 |
| Standard / special version | Special version | S |
