Unit · AXIAL-PISTON PUMP
A4VG110EP0DPRX0/40NRND6V81FB2S4BS00-SR902237450
Axial piston pump Bosch Rexroth series A4VG, type code A4VG110EP0DPRX0/40NRND6V81FB2S4BS00-S, material number R902237450. Nominal size: NG 110. Axial piston unit: swashplate design, variable, nominal pressure 450 bar, maximum pressure 500 bar (A4V). Operating mode: pump, closed circuit (G). Pressure cut-off: pressure cut-off, with bypass Fixed setting, hydraulic, mechanical (D). Connector for solenoids: DEUTSCH molded connector, 2-pin – without suppressor diode (P). Swivel angle sensor: electric swivel angle sensor (DWS20-1, 3-pin) (R). DA control valve (only for NG110 and 125): without DA control valve (0). Direction of rotation: viewed on drive shaft clockwise (R). Sealing material: NBR (nitrile rubber), shaft seal in FKM (fluoroelastomer) (N). Mounting flange: SAE J744 152-2/4 (D6). Drive shaft: splined shaft 1 3/8 in 21T 16/32DP ANSI B92.1a–1976 (V8). Working port: SAE working port A and B, on left side (45° left) (1). Boost pump and rotary group configuration: standard rotary group boost pump integrated, standard internal gear pump (F). Through drive: 101-2 (B) B2 7/8 in 13T 16/32DP S4 (B2S4). Filtration boost circuit/external boost pressure supply: filtration in the boost pump suction line (S).
- Number
- R902237450
- Type code
- A4VG110EP0DPRX0/40NRND6V81FB2S4BS00-S
- Group
- A4VG 110
- Edition
- 01/2020

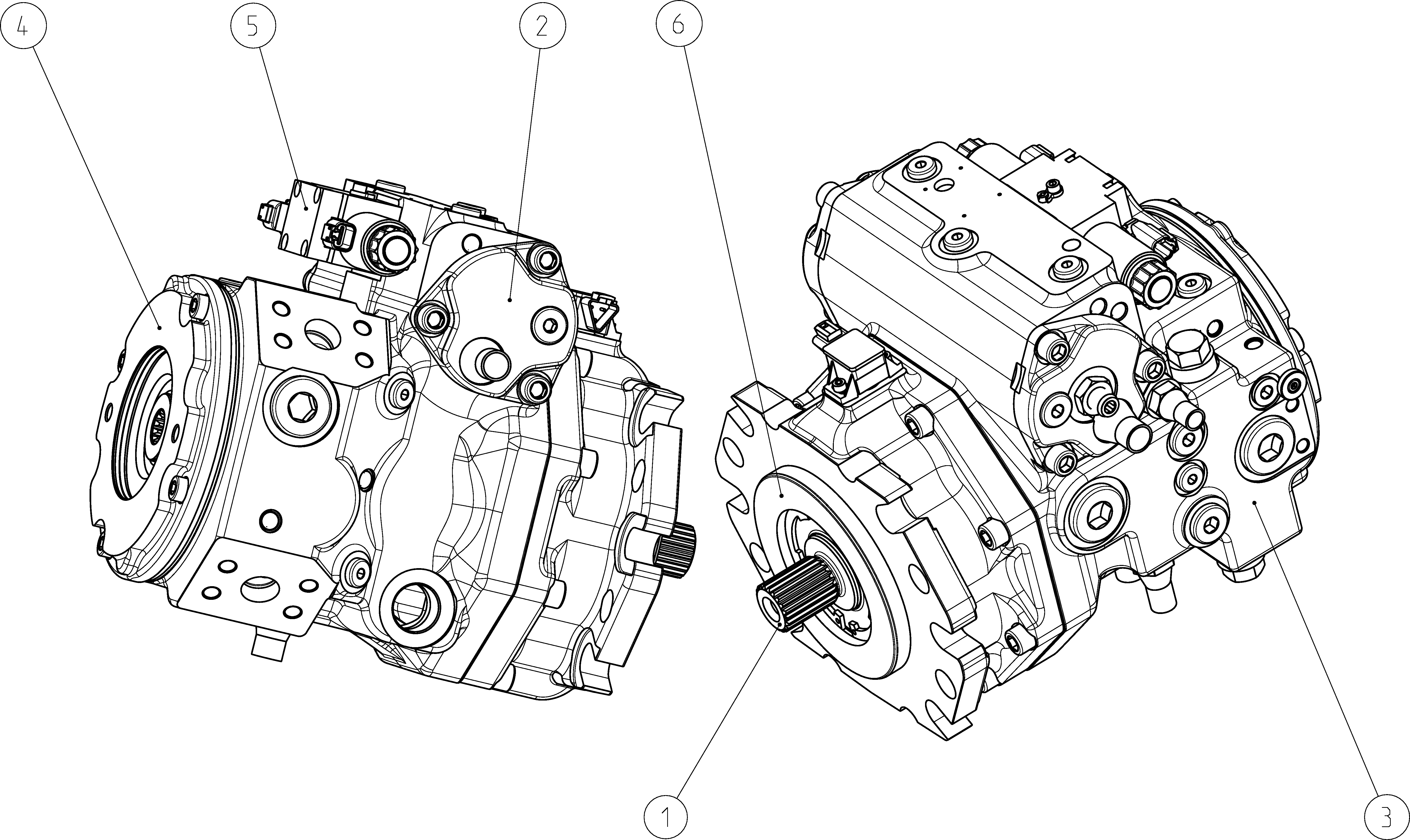

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902236715 | ROTARY GROUP Assembly parts list →L | 1 | ||
| R902236726 | CONTROL Assembly parts list →L | 1 | ||
| R902192585 | PUMP HOUSING Assembly parts list →L | 1 | ||
| R902157058 | INTERNAL GEAR PUMP Assembly parts list →L | 1 | ||
| R902139069 | CONTROL MODULE Assembly parts list →L | 1 | ||
| R902114059 | BEARING FLANGE Assembly parts list →L | 1 | ||
| 98 | R902095817 | SEAL KIT | 1 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Axial piston unit | Swashplate design, variable, nominal pressure 450 bar, maximum pressure 500 bar | A4V |
| Operating mode | Pump, closed circuit | G |
| Size (NG) | 110 | 110 |
| Pressure cut-off | Pressure cut-off, with bypass Fixed setting, hydraulic, mechanical | D |
| Connector for solenoids | DEUTSCH molded connector, 2-pin – without suppressor diode | P |
| Swivel angle sensor | Electric swivel angle sensor (DWS20-1, 3-pin) | R |
| DA control valve (only for NG110 and 125) | Without DA control valve | 0 |
| Direction of rotation | Viewed on drive shaft clockwise | R |
| Sealing material | NBR (nitrile rubber), shaft seal in FKM (fluoroelastomer) | N |
| Mounting flange | SAE J744 152-2/4 | D6 |
| Drive shaft | Splined shaft 1 3/8 in 21T 16/32DP ANSI B92.1a–1976 | V8 |
| Working port | SAE working port A and B, on left side (45° left) | 1 |
| Boost pump and rotary group configuration | Standard rotary group boost pump integrated, standard internal gear pump | F |
| Through drive | 101-2 (B) B2 7/8 in 13T 16/32DP S4 | B2S4 |
| Filtration boost circuit/external boost pressure supply | Filtration in the boost pump suction line | S |
| Pressure sensor | Without pressure sensor | 0 |
| Other sensors | Without sensor | 0 |
| Standard / special version | Special version | S |
