Unit · AXIAL-PISTON MOTOR
A6VM150EPV00L000B/71CWV0D4T18WV-SR902237459
Axial piston motor Bosch Rexroth series A6VM, type code A6VM150EPV00L000B/71CWV0D4T18WV-S, material number R902237459. Nominal size: NG 150. Axial piston unit: bent-axis design, variable, nominal pressure 6500 psi (450 bar), maximum pressure 7700 psi (A6V). Operating mode: motor (M). Pressure control/override: without pressure control/override (00). Swivel angle detection: without (0). Additional function: without additional function (0). Stroking time damping: without damping (standard with HP and EP) (0). Setting range for displacement: no setting screw moderate (B). Version of ports and fastening threads: ports with O-ring seal (ANSI) based on ISO 11926, metric fastening thread according to DIN 13 (C). Direction of rotation: viewed on drive shaft, bidirectional (W). Sealing material: FKM (fluoroelastomer) (V). Drive shaft bearing: standard bearing (0). Mounting flange: SAE J744 152-4 (D4). Drive shaft: splined shaft ANSI B92.1a 1 3/4 in 13T 8/16 DP (T1). Working port: port plate for mounting a counterbalance valve, with 1-stage pressure-relief valve (pilot operated) BVD 25 (8).
- Number
- R902237459
- Type code
- A6VM150EPV00L000B/71CWV0D4T18WV-S
- Group
- A6VM 150
- Edition
- 06/2020

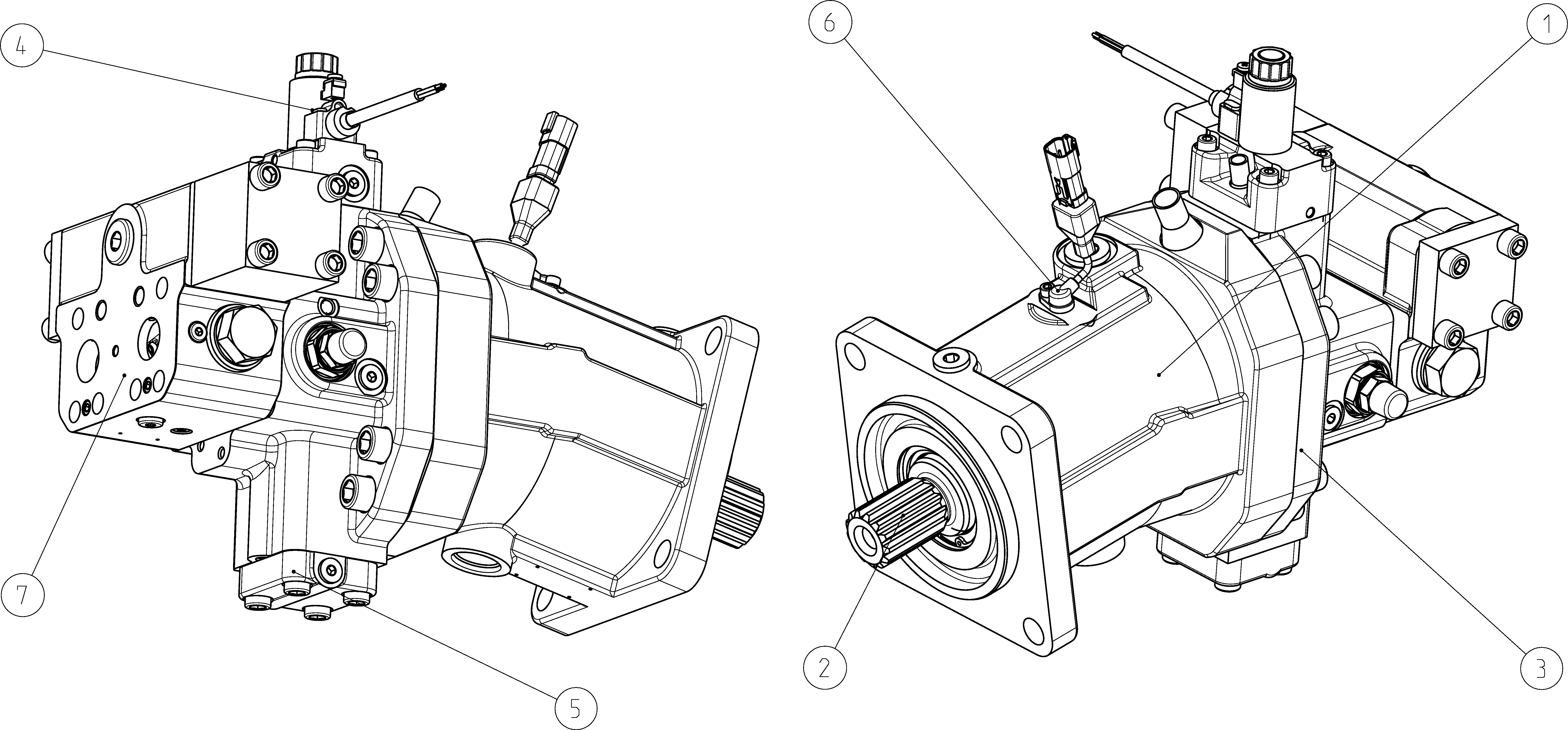

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902196886 | HOUSING Assembly parts list →L | 1 | ||
| R902281644 | ROTARY GROUP Assembly parts list →L | 1 | ||
| R902281555 | COVER PLATE Assembly parts list →L | 1 | ||
| R902238087 | CONTROL PART Assembly parts list →L | 1 | ||
| R902139644 | COVER Assembly parts list →L | 1 | ||
| R902236079 | SENSOR Assembly parts list →L | 1 | ||
| R902107370 | BRAKE VALVE Assembly parts list →L | 1 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Axial piston unit | Bent-axis design, variable, nominal pressure 6500 psi (450 bar), maximum pressure 7700 psi | A6V |
| Operating mode | Motor | M |
| Size (NG) | 150 | 150 |
| Pressure control/override | Without pressure control/override | 00 |
| Swivel angle detection | Without | 0 |
| Additional function | Without additional function | 0 |
| Stroking time damping | Without damping (standard with HP and EP) | 0 |
| Setting range for displacement | No setting screw moderate | B |
| Series | Series 7, Index 1 | 71 |
| Version of ports and fastening threads | Ports with O-ring seal (ANSI) based on ISO 11926, metric fastening thread according to DIN 13 | C |
| Direction of rotation | Viewed on drive shaft, bidirectional | W |
| Sealing material | FKM (fluoroelastomer) | V |
| Drive shaft bearing | Standard bearing | 0 |
| Mounting flange | SAE J744 152-4 | D4 |
| Drive shaft | Splined shaft ANSI B92.1a 1 3/4 in 13T 8/16 DP | T1 |
| Working port | Port plate for mounting a counterbalance valve, with 1-stage pressure-relief valve (pilot operated) BVD 25 | 8 |
| Valve | With BVD/BVE counterbalance valves mounted | W |
| Speed sensor | With DSA/12 speed sensor mounted | V |
| Standard/special version | Special version | S |
