Unit · AXIAL-PISTON MOTOR
AA6VM55EP2/63W-VSD0100PA-SR902239695
Axial piston motor Bosch Rexroth series A6VM, type code AA6VM55EP2/63W-VSD0100PA-S, material number R902239695. Nominal size: NG 55. Axial piston unit: bent-axis design, variable (A6V). Operating mode: motor (M). Control device: proportional control, electric (with HIRSCHMANN connector – without suppressor diode) U = 24 V (EP2). Direction of rotation: viewed on drive shaft variable (W). Sealing material: FKM (fluoroelastomer) (V). Working port: SAE working ports Without valve 0 A and B at rear 01 (010). Beginning of control: at Vg min (standard for HA) (A). Standard/special version: special version (-S).
- Number
- R902239695
- Type code
- AA6VM55EP2/63W-VSD0100PA-S
- Group
- A6VM 55
- Edition
- 06/2020

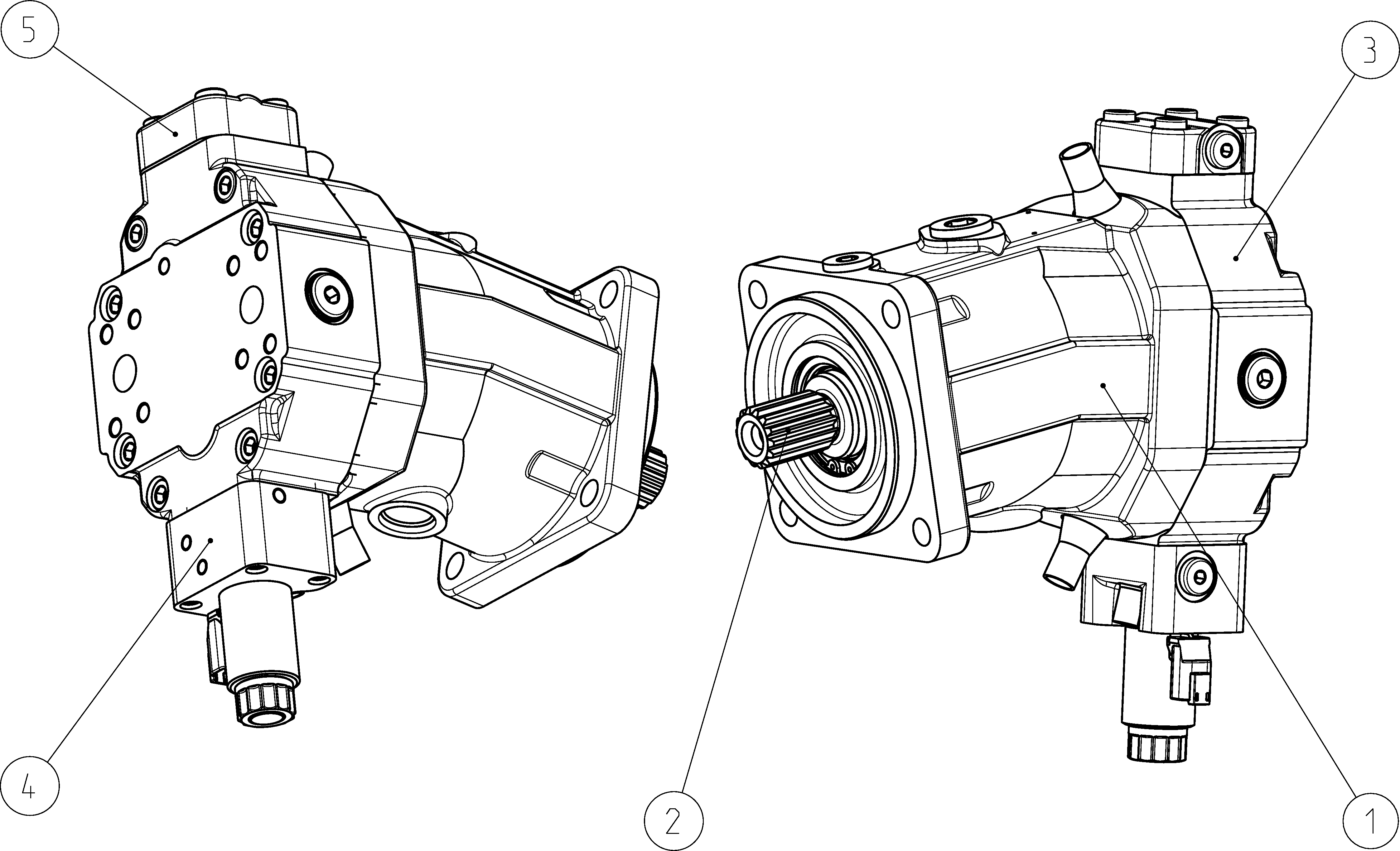

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902206976 | HOUSING Assembly parts list →L | 1 | ||
| R909604149 | ROTARY GROUP Assembly parts list →L | 1 | ||
| R902162101 | COVER PLATE Assembly parts list →L | 1 | ||
| R902186089 | CONTROL PART Assembly parts list →L | 1 | ||
| R902238499 | COVER Assembly parts list →L | 1 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Axial piston unit | Bent-axis design, variable | A6V |
| Operating mode | Motor | M |
| Size (NG) | 55 | 55 |
| Control device | Proportional control, electric (with HIRSCHMANN connector – without suppressor diode) U = 24 V | EP2 |
| Series | Series 6, index 3 | 63 |
| Direction of rotation | Viewed on drive shaft variable | W |
| Sealing material | FKM (fluoroelastomer) | V |
| Working port | SAE working ports Without valve 0 A and B at rear 01 | 010 |
| Beginning of control | At Vg min (standard for HA) | A |
| Standard/special version | Special version | -S |
