Unit · AXIAL-PISTON MOTOR
A6VM160EP8D2P003H/65NWV0R4A280F-SR902239708
Axial piston motor Bosch Rexroth series A6VM, type code A6VM160EP8D2P003H/65NWV0R4A280F-S, material number R902239708. Nominal size: NG 160. Axial piston unit: bent-axis design, variable displacement (A6V). Operating mode: motor (M). Connector for solenoids: DEUTSCH - molded connector, 2-pin, without suppressor diode (P). Swivel angle sensor: without swivel angle sensor (0). Additional function: without additional function (0). Setting range for displacement: short extra long (H). Version of port and fastening threads: metric ports threads with profile sealing ring based on DIN 3852, metric fastening thread according to DIN 13 (N). Direction of rotation: viewed on drive shaft, bi-directional (W). Sealing material: FKM (fluorocarbon rubber) (V). Drive shaft bearing: standard bearing (0). Mounting flange: ISO 3019-2 180-4 (R4). Drive shaft: splined shaft DIN 5480 W50×2×24×9g (A2). Working port: port plate for mounting a counterbalance valve, with 1-stage pressure relief valve (pilot operated) BVD25 (8). Valve: without valve (0).
- Number
- R902239708
- Type code
- A6VM160EP8D2P003H/65NWV0R4A280F-S
- Group
- A6VM 160
- Edition
- 06/2020

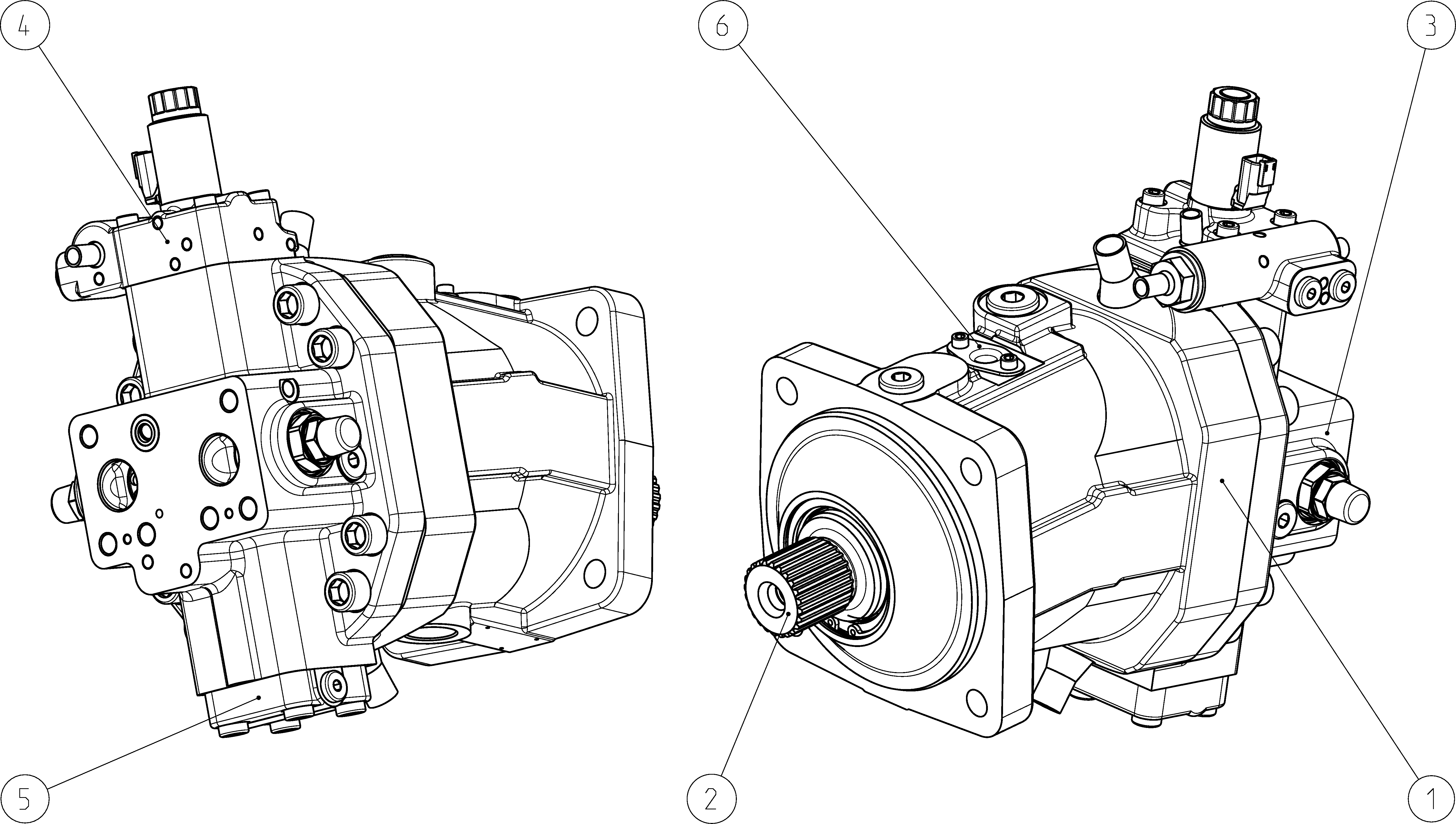

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902238168 | HOUSING Assembly parts list →L | 1 | ||
| R902277864 | ROTARY GROUP Assembly parts list →L | 1 | ||
| R902277884 | COVER PLATE Assembly parts list →L | 1 | ||
| R902196532 | CONTROL PART Assembly parts list →L | 1 | ||
| R902182423 | COVER Assembly parts list →L | 1 | ||
| R902151719 | FLANGE COVER | 1 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Axial piston unit | Bent-axis design, variable displacement | A6V |
| Operating mode | Motor | M |
| Size (NG) | 160 | 160 |
| Connector for solenoids | DEUTSCH - molded connector, 2-pin, without suppressor diode | P |
| Swivel angle sensor | Without swivel angle sensor | 0 |
| Additional function | Without additional function | 0 |
| Setting range for displacement | Short extra long | H |
| Series | Series 6, index 5 (nominal pressure 400 bar) | 65 |
| Version of port and fastening threads | Metric ports threads with profile sealing ring based on DIN 3852, metric fastening thread according to DIN 13 | N |
| Direction of rotation | Viewed on drive shaft, bi-directional | W |
| Sealing material | FKM (fluorocarbon rubber) | V |
| Drive shaft bearing | Standard bearing | 0 |
| Mounting flange | ISO 3019-2 180-4 | R4 |
| Drive shaft | Splined shaft DIN 5480 W50×2×24×9g | A2 |
| Working port | Port plate for mounting a counterbalance valve, with 1-stage pressure relief valve (pilot operated) BVD25 | 8 |
| Valve | Without valve | 0 |
| Standard/special version | Special version | S |
