Unit · PUMP COMBINATION
A4VG110EP2/40ML+A4FO22/32LR902239728
Pump combination Bosch Rexroth series A4VG, type code A4VG110EP2/40ML+A4FO22/32L, material number R902239728. Nominal size: NG 110. Axial piston unit: swashplate design, variable, nominal pressure 450 bar, maximum pressure 500 bar (A4V). Operating mode: pump, closed circuit (G). Control device: proportional control, electric U = 24 V (EP2).
- Number
- R902239728
- Type code
- A4VG110EP2/40ML+A4FO22/32L
- Group
- A4FO 22
- Edition
- 01/2020

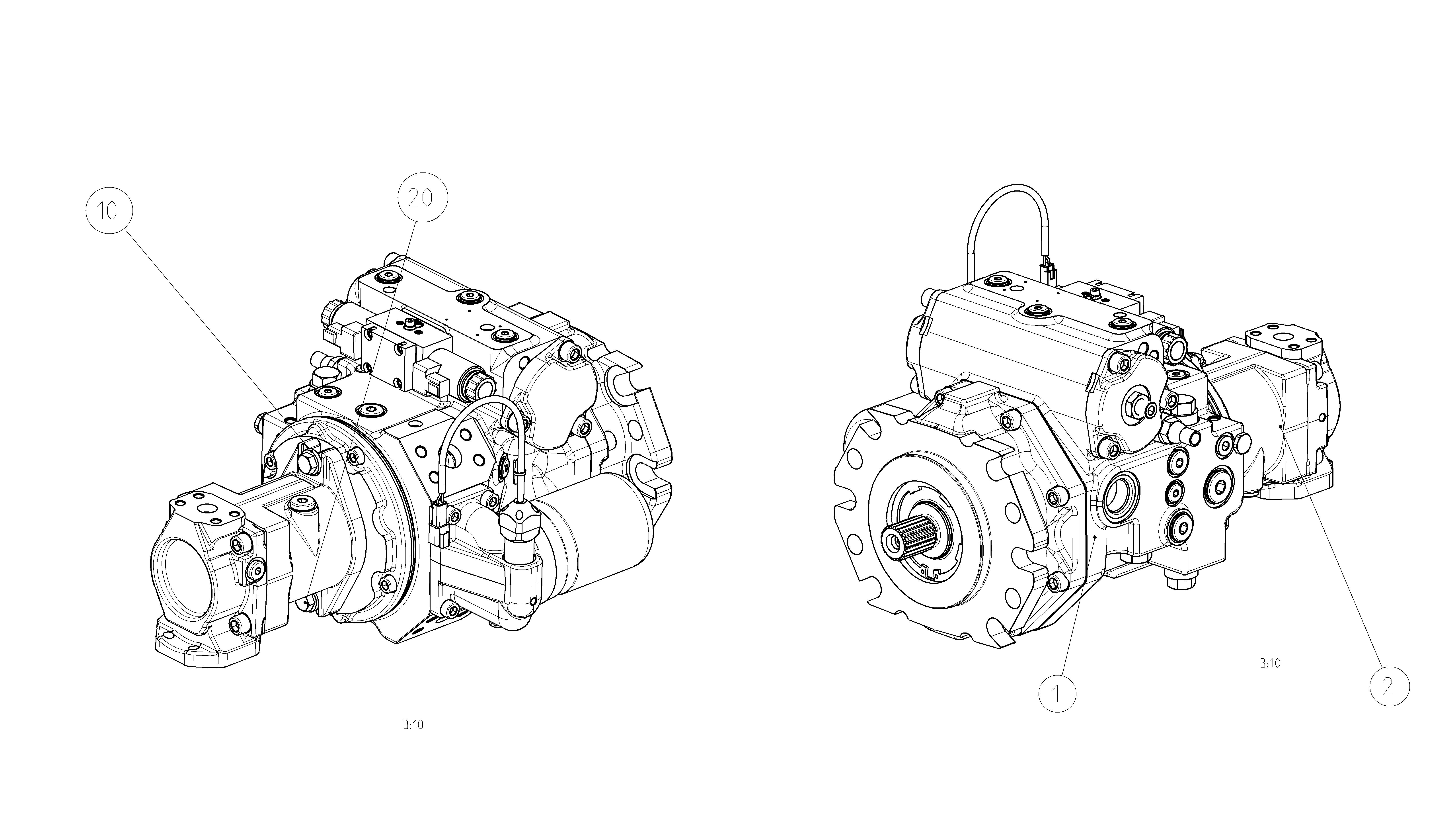

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| 1 | R902239726 | AXIAL-PISTON PUMP Assembly parts list →L | 1 | |
| 2 | R902239727 | AXIAL-PISTON PUMP Assembly parts list →L | 1 | |
| 10 | R909430409 | WASHER | 2 | |
| 20 | R909083707 | HEXAGON SCREW | 2 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Axial piston unit | Swashplate design, variable, nominal pressure 450 bar, maximum pressure 500 bar | A4V |
| Operating mode | Pump, closed circuit | G |
| Size (NG) | 110 | 110 |
| Control device | Proportional control, electric U = 24 V | EP2 |
