Unit · AXIAL-PISTON MOTOR
A6VM215HA1R2P004A/71JWV0S4T2100-YR902239742
Axial piston motor Bosch Rexroth series A6VM, type code A6VM215HA1R2P004A/71JWV0S4T2100-Y, material number R902239742. Nominal size: NG 215. Axial piston unit: bent-axis design, variable, nominal pressure 6500 psi (450 bar), maximum pressure 7700 psi (A6V). Operating mode: motor (M). Control device: automatic control with minimum pressure Δp ≤ approx. 145 psi high-pressure related, increase (10 bar) positive control (HA1). Pressure control/override: override of the HA1 and HA2 controls electric and travel direction valve, electric U = 24 V (R2). Swivel angle detection: without (0). Additional function: without additional function (0). Stroking time damping: damping One-sided in inlet to large stroking chamber (HA) (4). Setting range for displacement: no setting screw short (0-adjustable) (A). Direction of rotation: viewed on drive shaft, bidirectional (W). Sealing material: FKM (fluoroelastomer) (V). Drive shaft bearing: standard bearing (0). Mounting flange: ISO 3019-20 200-4 (S4). Drive shaft: splined shaft ANSI B92.1a 2 in 15T 8/16 DP (T2). Working port: SAE working ports A and B at rear (1).
- Number
- R902239742
- Type code
- A6VM215HA1R2P004A/71JWV0S4T2100-Y
- Group
- A6VM 215
- Edition
- 06/2020

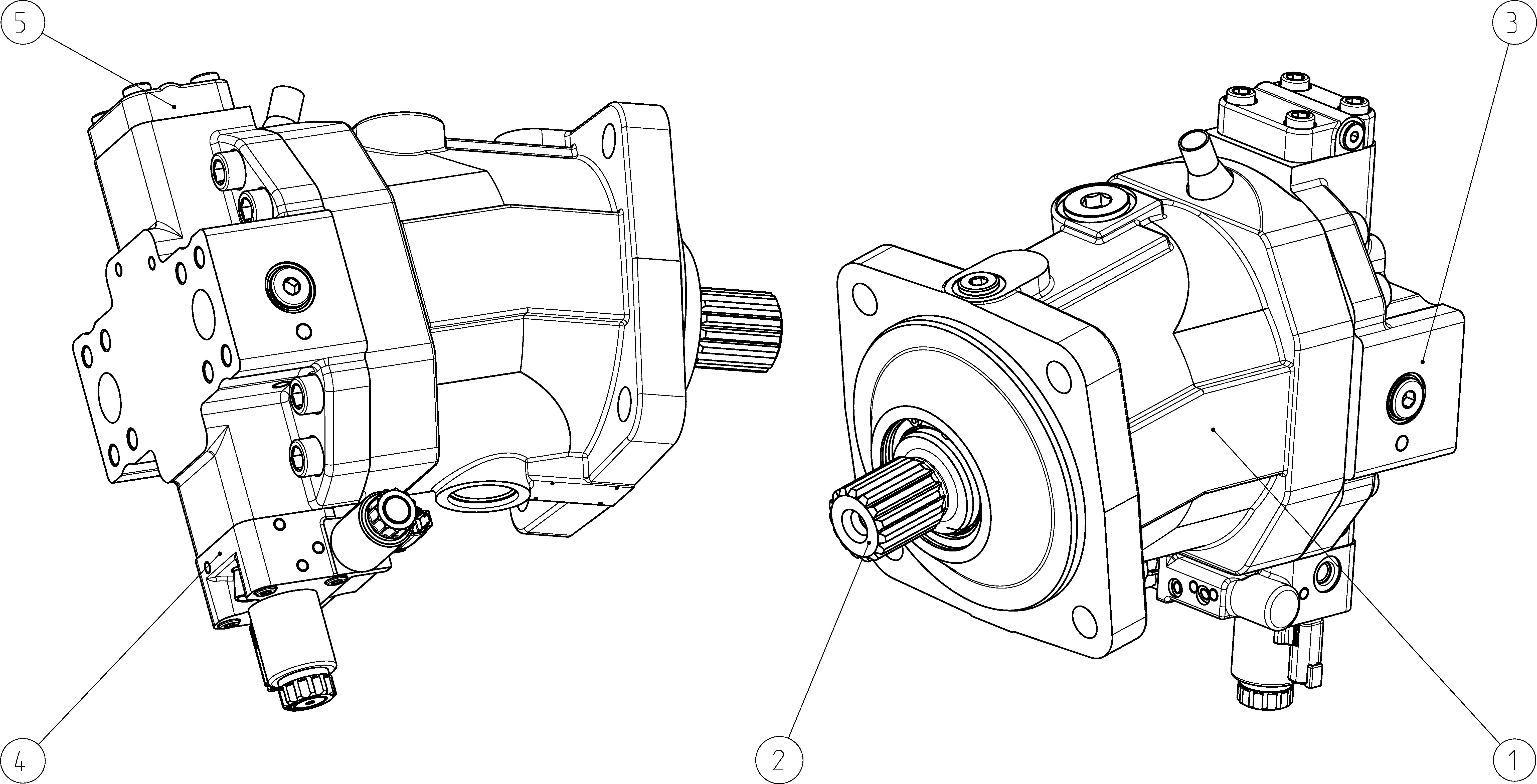

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902235776 | HOUSING Assembly parts list →L | 1 | ||
| R902139650 | ROTARY GROUP Assembly parts list →L | 1 | ||
| R902182421 | COVER PLATE Assembly parts list →L | 1 | ||
| R902238201 | CONTROL PART Assembly parts list →L | 1 | ||
| R902238203 | COVER Assembly parts list →L | 1 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Axial piston unit | Bent-axis design, variable, nominal pressure 6500 psi (450 bar), maximum pressure 7700 psi | A6V |
| Operating mode | Motor | M |
| Size (NG) | 215 | 215 |
| Control device | Automatic control with minimum pressure Δp ≤ approx. 145 psi high-pressure related, increase (10 bar) positive control | HA1 |
| Pressure control/override | Override of the HA1 and HA2 controls electric and travel direction valve, electric U = 24 V | R2 |
| DEUTSCH - molded connector, 2-pin, without suppressor diode | P | |
| Swivel angle detection | Without | 0 |
| Additional function | Without additional function | 0 |
| Stroking time damping | Damping One-sided in inlet to large stroking chamber (HA) | 4 |
| Setting range for displacement | No setting screw short (0-adjustable) | A |
| Series | Series 7, Index 1 | 71 |
| Direction of rotation | Viewed on drive shaft, bidirectional | W |
| Sealing material | FKM (fluoroelastomer) | V |
| Drive shaft bearing | Standard bearing | 0 |
| Mounting flange | ISO 3019-20 200-4 | S4 |
| Drive shaft | Splined shaft ANSI B92.1a 2 in 15T 8/16 DP | T2 |
| Working port | SAE working ports A and B at rear | 1 |
| Valve | Without valve | 0 |
| Speed sensor | Without speed sensor | 0 |
| Standard/special version | Standard version with installation variants, e.g. T ports open and closed contrary to standard | Y |
