Unit · AXIAL-PISTON MOTOR
A6VM115EP6D1P001D/71MWK0P4A1200-0R902241676
Axial piston motor Bosch Rexroth series A6VM, type code A6VM115EP6D1P001D/71MWK0P4A1200-0, material number R902241676. Nominal size: NG 115. Axial piston unit: bent-axis design, variable displacement (A6V). Operating mode: motor (M). Control device: proportional control, electric negative control U = 24 V (EP6). Pressure control/override: pressure control fixed setting, only for HP5, HP6, EP5 and EP6 (D1). Connector for solenoids: DEUTSCH - molded connector, 2-pin, without suppressor diode (P). Swivel angle sensor: without swivel angle sensor (0). Additional function: without additional function (0). Stroking time damping: damping HP, EP, HP5,6D. and EP5,6D., HZ, EZ, HA with (1). Setting range for displacement: without setting screw extra long (D). Version of port and fastening threads: metric ports based on ISO 6149 with O-ring seal, metric fastening thread according to DIN 13 (M). Direction of rotation: viewed on drive shaft, bi-directional (W). Drive shaft bearing: standard bearing (0). Mounting flange: ISO 3019-2 160-4 (P4). Drive shaft: splined shaft DIN 5480 W45×2×21×9g (A1).
- Number
- R902241676
- Type code
- A6VM115EP6D1P001D/71MWK0P4A1200-0
- Group
- A6VM 115
- Edition
- 06/2020

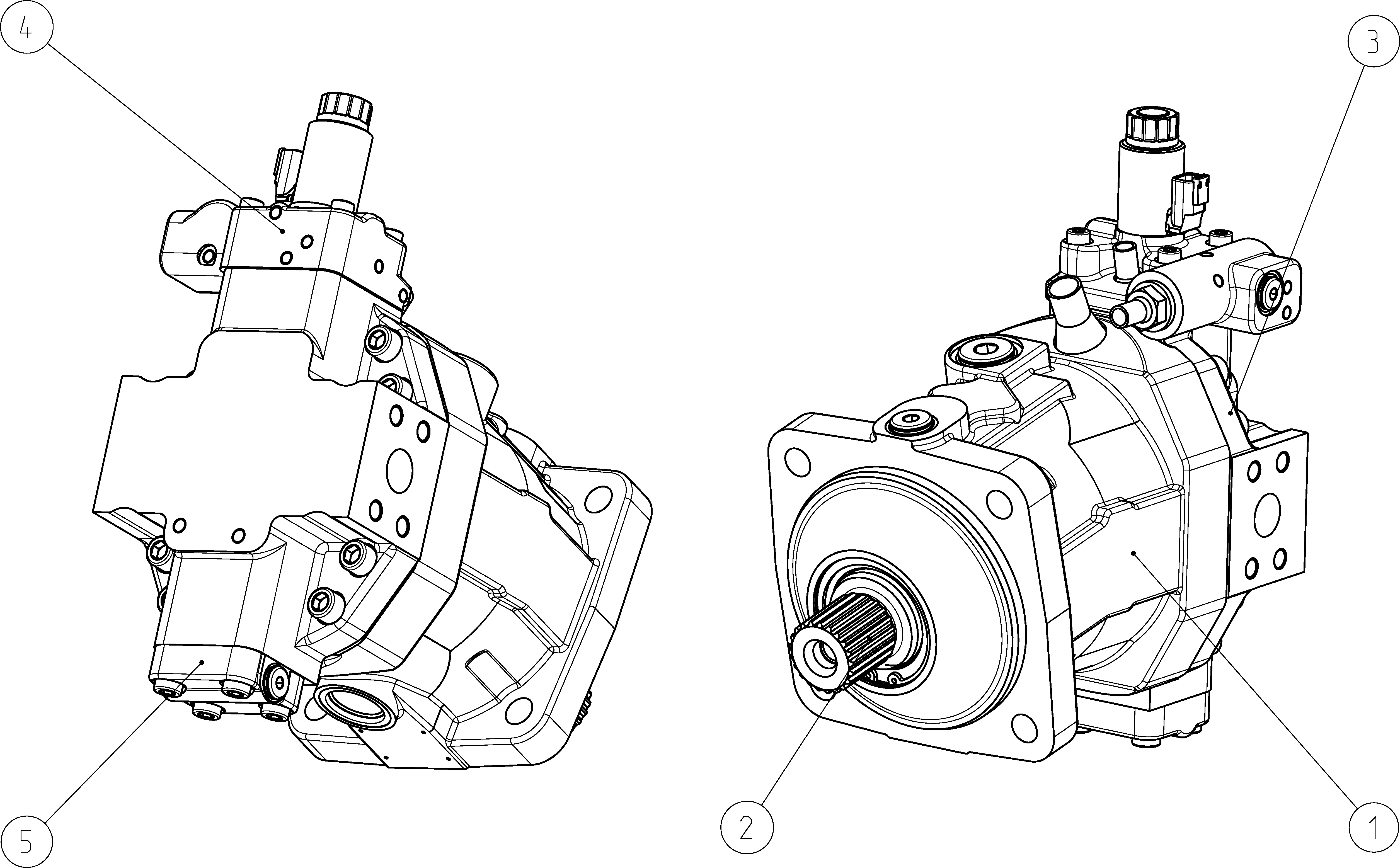

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902241165 | HOUSING Assembly parts list →L | 1 | ||
| R902124479 | ROTARY GROUP Assembly parts list →L | 1 | ||
| R902189255 | COVER PLATE Assembly parts list →L | 1 | ||
| R902163847 | CONTROL PART Assembly parts list →L | 1 | ||
| R902163848 | COVER Assembly parts list →L | 1 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Axial piston unit | Bent-axis design, variable displacement | A6V |
| Operating mode | Motor | M |
| Size (NG) | 115 | 115 |
| Control device | Proportional control, electric negative control U = 24 V | EP6 |
| Pressure control/override | Pressure control fixed setting, only for HP5, HP6, EP5 and EP6 | D1 |
| Connector for solenoids | DEUTSCH - molded connector, 2-pin, without suppressor diode | P |
| Swivel angle sensor | Without swivel angle sensor | 0 |
| Additional function | Without additional function | 0 |
| Stroking time damping | Damping HP, EP, HP5,6D. and EP5,6D., HZ, EZ, HA with | 1 |
| Setting range for displacement | Without setting screw extra long | D |
| Series | Series 7, index 1 (nominal pressure 450 bar) | 71 |
| Version of port and fastening threads | Metric ports based on ISO 6149 with O-ring seal, metric fastening thread according to DIN 13 | M |
| Direction of rotation | Viewed on drive shaft, bi-directional | W |
| Drive shaft bearing | Standard bearing | 0 |
| Mounting flange | ISO 3019-2 160-4 | P4 |
| Drive shaft | Splined shaft DIN 5480 W45×2×21×9g | A1 |
| Working port | SAE working ports A and B lateral, opposite | 2 |
| Valve | Without valve | 0 |
| Speed sensor | Without speed sensor | 0 |
| Standard/special version | Standard version | 0 |
