Unit · AXIAL-PISTON MOTOR
A6VM107EZ800P001B/65MWV0P4A12CU-YR902241804
Axial piston motor Bosch Rexroth series A6VM, type code A6VM107EZ800P001B/65MWV0P4A12CU-Y, material number R902241804. Nominal size: NG 107. Axial piston unit: bent-axis design, variable displacement (A6V). Operating mode: motor (M). Control device: two-point control, electric U = 24 V (EZ8). Pressure control/override: without pressure control/override (00). Connector for solenoids: DEUTSCH - molded connector, 2-pin, without suppressor diode (P). Swivel angle sensor: without swivel angle sensor (0). Additional function: without additional function (0). Stroking time damping: damping HP, EP, HP5,6D. and EP5,6D., HZ, EZ, HA with (1). Setting range for displacement: without setting screw moderate (B). Version of port and fastening threads: metric ports based on ISO 6149 with O-ring seal, metric fastening thread according to DIN 13 (M). Direction of rotation: viewed on drive shaft, bi-directional (W). Sealing material: FKM (fluorocarbon rubber) (V). Drive shaft bearing: standard bearing (0). Mounting flange: ISO 3019-2 160-4 (P4).
- Number
- R902241804
- Type code
- A6VM107EZ800P001B/65MWV0P4A12CU-Y
- Group
- A6VM 107
- Edition
- 06/2020

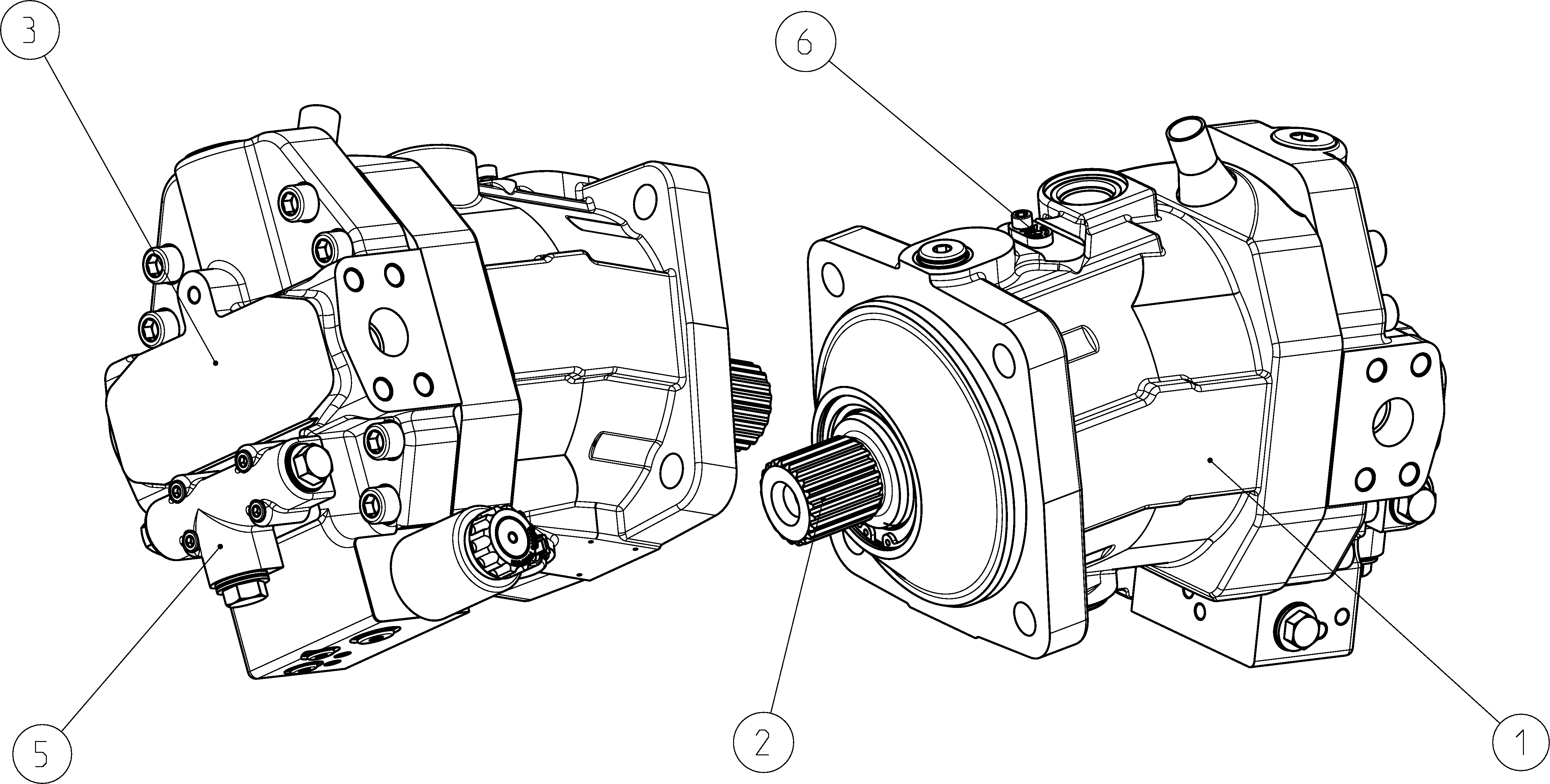

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902241335 | HOUSING Assembly parts list →L | 1 | ||
| R909604700 | ROTARY GROUP Assembly parts list →L | 1 | ||
| R902227055 | COVER PLATE Assembly parts list →L | 1 | ||
| R902194321 | FLUSH/BOOST PRESSURE VALVE Assembly parts list →L | 1 | ||
| R902191651 | FLANGE COVER | 1 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Axial piston unit | Bent-axis design, variable displacement | A6V |
| Operating mode | Motor | M |
| Size (NG) | 107 | 107 |
| Control device | Two-point control, electric U = 24 V | EZ8 |
| Pressure control/override | Without pressure control/override | 00 |
| Connector for solenoids | DEUTSCH - molded connector, 2-pin, without suppressor diode | P |
| Swivel angle sensor | Without swivel angle sensor | 0 |
| Additional function | Without additional function | 0 |
| Stroking time damping | Damping HP, EP, HP5,6D. and EP5,6D., HZ, EZ, HA with | 1 |
| Setting range for displacement | Without setting screw moderate | B |
| Series | Series 6, index 5 (nominal pressure 400 bar) | 65 |
| Version of port and fastening threads | Metric ports based on ISO 6149 with O-ring seal, metric fastening thread according to DIN 13 | M |
| Direction of rotation | Viewed on drive shaft, bi-directional | W |
| Sealing material | FKM (fluorocarbon rubber) | V |
| Drive shaft bearing | Standard bearing | 0 |
| Mounting flange | ISO 3019-2 160-4 | P4 |
| Drive shaft | Splined shaft DIN 5480 W45×2×21×9g | A1 |
| Working port | SAE working ports A and B lateral, opposite | 2 |
| Valve | Only possible with port plates 1, 2 and 4 8 | C |
| Standard/special version | Standard version with installation variants, e.g. T ports open or closed | Y |
