Unit · AXIAL-PISTON PUMP
AA11VO190EP6Z/11L-NSD07K17P-SR902243016
Axial piston pump Bosch Rexroth series A11VO, type code AA11VO190EP6Z/11L-NSD07K17P-S, material number R902243016. Nominal size: NG 190. Axial piston unit: swashplate design, variable, nominal pressure 350 bar, maximum pressure 400 bar (A11V). Operating mode: pump, open circuit without charge pump (O). Direction of rotation: viewed on drive shaft counter-clockwise (L). Sealing material: NBR (nitrile rubber), shaft seal ring FKM (fluorocarbon rubber) (N). Drive shaft: splined shaft ANSI B92.1a‒1976 for single pump (S). Mounting flange: SAE J744 ‒ 4-hole (D). Working port: SAE pressure and suction port lateral, opposite, metric fastening thread according to DIN 13. Port thread, UNF with O-ring based on ISO 11926 (07). Through drive: 152-4 (D) 1 3/4 in 13T 8/16DP D (K17). Connector for solenoids: DEUTSCH connector molded 2-pin, without suppressor diode (P). Standard/special version: special version (S).
- Number
- R902243016
- Type code
- AA11VO190EP6Z/11L-NSD07K17P-S
- Group
- A11VO 190
- Edition
- 06/2020

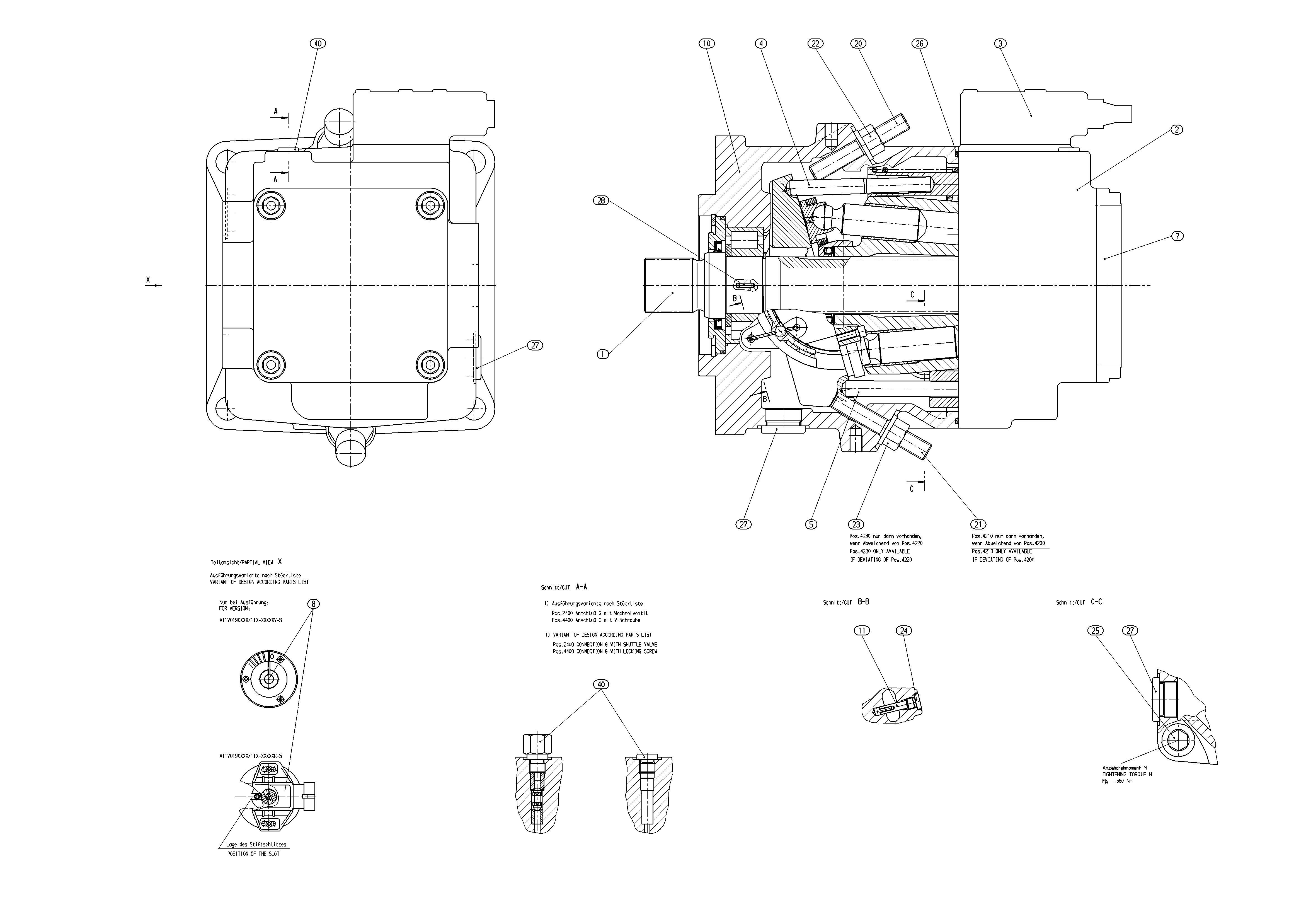

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| 1 | R902105893 | ROTARY GROUP Assembly parts list →L | 1 | |
| R902137271 | CONNECTION PLATE, LL Assembly parts list →L | 1 | ||
| R902138574 | REGULATOR Assembly parts list →L | 1 | ||
| R902007450 | CONTROL Assembly parts list →L | 1 | ||
| 5 | R902007456 | CONTROL Assembly parts list →L | 1 | |
| 7 | R909613610 | BELL HOUSING Assembly parts list →L | 1 | |
| R902120461 | HOUSING | 1 | ||
| 11 | R902132714 | PIVOT PIN | 4 | |
| R909921095 | SETSCREW | 1 | ||
| R902026887 | SETSCREW | 1 | ||
| R909153328 | SEALING NUTD | 1 | ||
| R909152459 | SEALING NUT | 1 | ||
| R909153364 | SCREW PLUGD | 4 | ||
| R909084762 | SOCKET HEAD CAP SCREW | 4 | ||
| R902601050 | O-RINGD | 1 | ||
| R909153378 | SCREW PLUG | 1 | ||
| R913016375 | SLOTTED SPRING PIN | 2 | ||
| R909151979 | SCREW PLUGD | 1 | ||
| 98 | R902095612 | SEAL KIT | 1 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Axial piston unit | Swashplate design, variable, nominal pressure 350 bar, maximum pressure 400 bar | A11V |
| Operating mode | Pump, open circuit without charge pump | O |
| Size (NG) | 190 | 190 |
| Index | Size 145 … 260 | 1 |
| Direction of rotation | Viewed on drive shaft counter-clockwise | L |
| Sealing material | NBR (nitrile rubber), shaft seal ring FKM (fluorocarbon rubber) | N |
| Drive shaft | Splined shaft ANSI B92.1a‒1976 for single pump | S |
| Mounting flange | SAE J744 ‒ 4-hole | D |
| Working port | SAE pressure and suction port lateral, opposite, metric fastening thread according to DIN 13. Port thread, UNF with O-ring based on ISO 11926 | 07 |
| Through drive | 152-4 (D) 1 3/4 in 13T 8/16DP D | K17 |
| Connector for solenoids | DEUTSCH connector molded 2-pin, without suppressor diode | P |
| Standard/special version | Special version | S |
