Unit · AXIAL-PISTON MOTOR
A6VM215EP6D1H006G/71NWV0S4A22D0-YR902243124
Axial piston motor Bosch Rexroth series A6VM, type code A6VM215EP6D1H006G/71NWV0S4A22D0-Y, material number R902243124. Nominal size: NG 215. Axial piston unit: bent-axis design, variable displacement (A6V). Operating mode: motor (M). Control device: proportional control, electric negative control U = 24 V (EP6). Pressure control/override: pressure control fixed setting, only for HP5, HP6, EP5 and EP6 (D1). Swivel angle sensor: without swivel angle sensor (0). Additional function: without additional function (0). Setting range for displacement: short long (G). Version of port and fastening threads: metric ports threads with profile sealing ring based on DIN 3852, metric fastening thread according to DIN 13 (N). Direction of rotation: viewed on drive shaft, bi-directional (W). Sealing material: FKM (fluorocarbon rubber) (V). Drive shaft bearing: standard bearing (0). Mounting flange: ISO 3019-2 200-4 (S4). Drive shaft: splined shaft DIN 5480 W50×2×24×9g (A2). Working port: SAE working ports A and B lateral, opposite (2).
- Number
- R902243124
- Type code
- A6VM215EP6D1H006G/71NWV0S4A22D0-Y
- Group
- A6VM 215
- Edition
- 06/2020

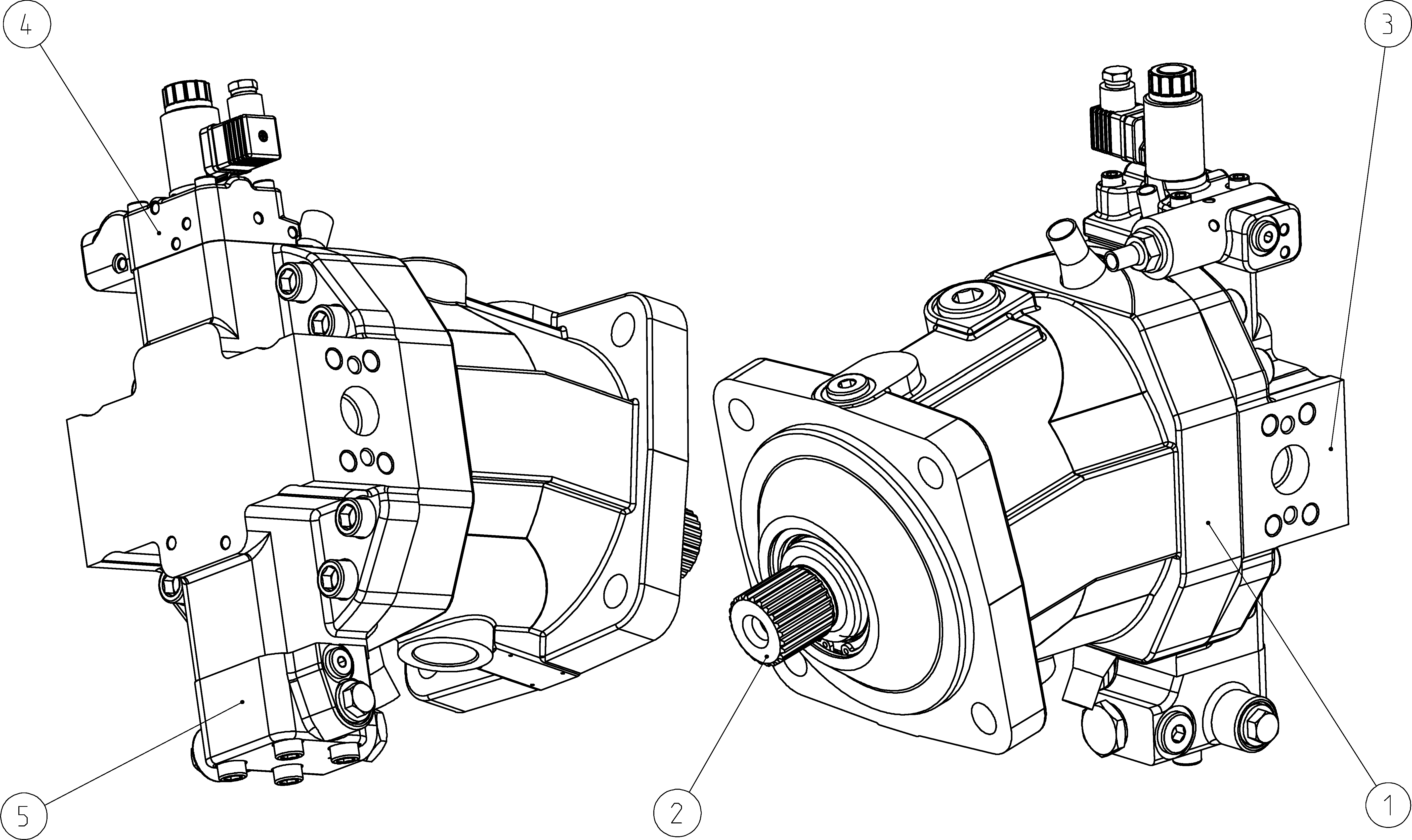

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902242666 | HOUSING Assembly parts list →L | 1 | ||
| R902139777 | ROTARY GROUP Assembly parts list →L | 1 | ||
| R902115726 | COVER PLATE Assembly parts list →L | 1 | ||
| R902163956 | CONTROL PART Assembly parts list →L | 1 | ||
| R902242668 | FLUSH/BOOST PRESSURE VALVE Assembly parts list →L | 1 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Axial piston unit | Bent-axis design, variable displacement | A6V |
| Operating mode | Motor | M |
| Size (NG) | 215 | 215 |
| Control device | Proportional control, electric negative control U = 24 V | EP6 |
| Pressure control/override | Pressure control fixed setting, only for HP5, HP6, EP5 and EP6 | D1 |
| Swivel angle sensor | Without swivel angle sensor | 0 |
| Additional function | Without additional function | 0 |
| Setting range for displacement | Short long | G |
| Series | Series 7, index 1 (nominal pressure 450 bar) | 71 |
| Version of port and fastening threads | Metric ports threads with profile sealing ring based on DIN 3852, metric fastening thread according to DIN 13 | N |
| Direction of rotation | Viewed on drive shaft, bi-directional | W |
| Sealing material | FKM (fluorocarbon rubber) | V |
| Drive shaft bearing | Standard bearing | 0 |
| Mounting flange | ISO 3019-2 200-4 | S4 |
| Drive shaft | Splined shaft DIN 5480 W50×2×24×9g | A2 |
| Working port | SAE working ports A and B lateral, opposite | 2 |
| Valve | 10 | D |
| Speed sensor | Without speed sensor | 0 |
| Standard/special version | Standard version with installation variants, e.g. T ports open or closed | Y |
