Unit · AXIAL-PISTON PUMP
A4VG210EP2DPRWO/40MRNE4T32FC2S7AS00-YR902243196
Axial piston pump Bosch Rexroth series A4VG, type code A4VG210EP2DPRWO/40MRNE4T32FC2S7AS00-Y, material number R902243196. Nominal size: NG 210. Axial piston unit: swashplate design, variable, nominal pressure 450 bar, maximum pressure 500 bar (A4V). Operating mode: pump, closed circuit (G). Control device: proportional control, electric U = 24 V (EP2). Pressure cut-off: pressure cut-off, with bypass Fixed setting, hydraulic, mechanical (D). Connector for solenoids: DEUTSCH molded connector, 2-pin – without suppressor diode (P). Swivel angle sensor: electric swivel angle sensor (DWS20-1, 3-pin) (R). Additional function: neutral valve U = 24 V and ports X X for stroking chamber pressure (W). Configuration of port and fastening threads: metric ports according to ISO 6149 with O-ring seal, metric fastening thread according to DIN (M). Direction of rotation: viewed on drive shaft clockwise (R). Sealing material: NBR (nitrile rubber), shaft seal in FKM (fluoroelastomer) (N). Mounting flange: SAE J744 165-4 (E4). Drive shaft: splined shaft ANSI B92.1a–1976 2 1/4 in 17T 8/16DP (T3). Working port: SAE working port A and B, on right side (45° right) (2). Boost pump and rotary group configuration: standard rotary group boost pump integrated, standard internal gear pump (F).
- Number
- R902243196
- Type code
- A4VG210EP2DPRWO/40MRNE4T32FC2S7AS00-Y
- Group
- A4VG 210
- Edition
- 01/2020

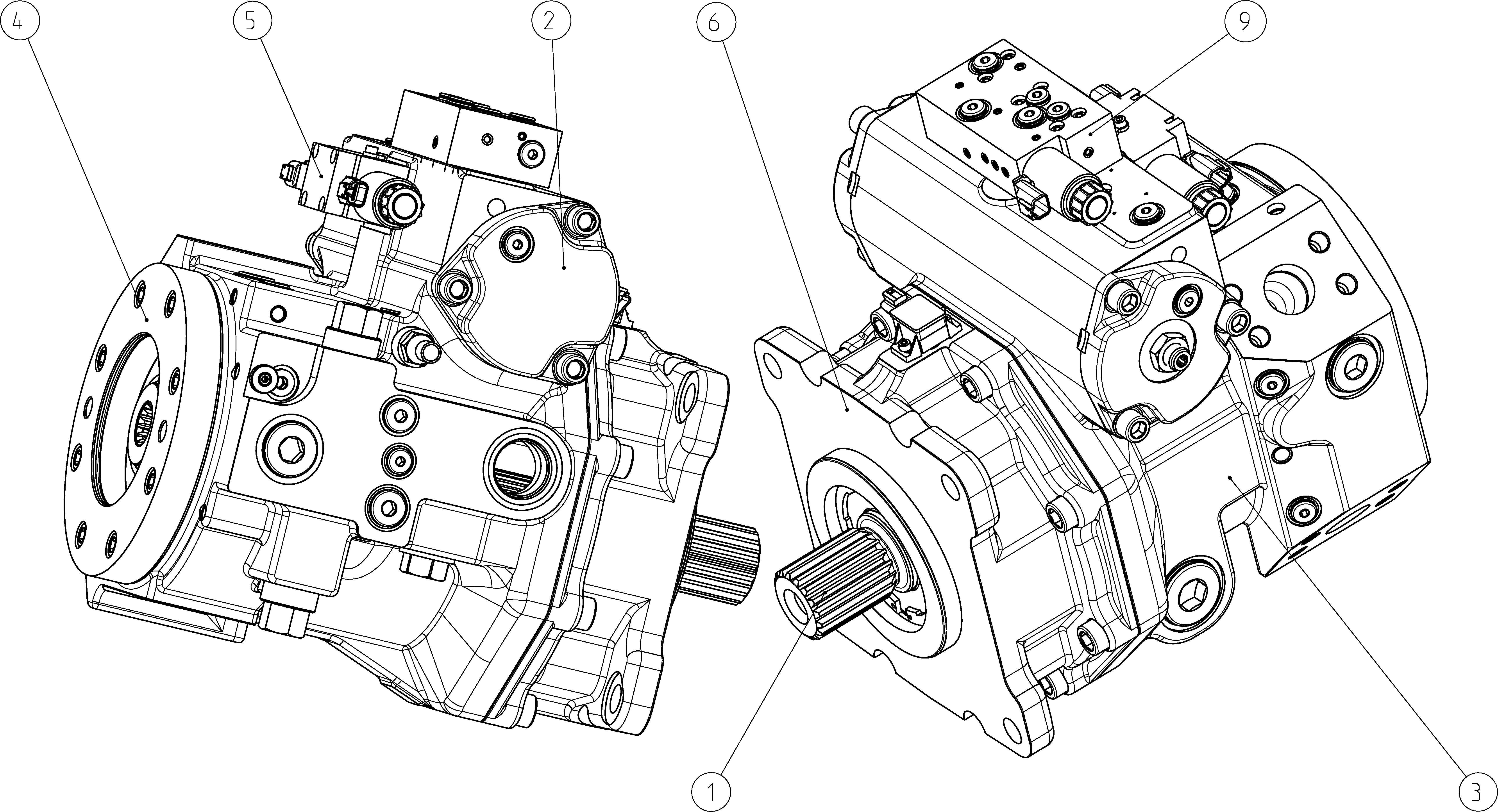

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902236717 | ROTARY GROUP Assembly parts list →L | 1 | ||
| R902167143 | CONTROL Assembly parts list →L | 1 | ||
| R902237886 | PUMP HOUSING Assembly parts list →L | 1 | ||
| R902132558 | INTERNAL GEAR PUMP Assembly parts list →L | 1 | ||
| R902120697 | CONTROL MODULE Assembly parts list →L | 1 | ||
| R902130246 | BEARING FLANGE Assembly parts list →L | 1 | ||
| R902162577 | UNLOADING VALVE Assembly parts list →L | 1 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Axial piston unit | Swashplate design, variable, nominal pressure 450 bar, maximum pressure 500 bar | A4V |
| Operating mode | Pump, closed circuit | G |
| Size (NG) | 210 | 210 |
| Control device | Proportional control, electric U = 24 V | EP2 |
| Pressure cut-off | Pressure cut-off, with bypass Fixed setting, hydraulic, mechanical | D |
| Connector for solenoids | DEUTSCH molded connector, 2-pin – without suppressor diode | P |
| Swivel angle sensor | Electric swivel angle sensor (DWS20-1, 3-pin) | R |
| Additional function | Neutral valve U = 24 V and ports X X for stroking chamber pressure | W |
| Configuration of port and fastening threads | Metric ports according to ISO 6149 with O-ring seal, metric fastening thread according to DIN | M |
| Direction of rotation | Viewed on drive shaft clockwise | R |
| Sealing material | NBR (nitrile rubber), shaft seal in FKM (fluoroelastomer) | N |
| Mounting flange | SAE J744 165-4 | E4 |
| Drive shaft | Splined shaft ANSI B92.1a–1976 2 1/4 in 17T 8/16DP | T3 |
| Working port | SAE working port A and B, on right side (45° right) | 2 |
| Boost pump and rotary group configuration | Standard rotary group boost pump integrated, standard internal gear pump | F |
| Through drive | 127-2 (C) C2 1 1/4 in 14T 12/24DP S7 | C2S7 |
| High-pressure relief valve | High-pressure relief valve, direct operated, fixed setting, with low-pressure relief valve, fixed setting | A |
| Filtration boost circuit/external boost pressure supply | Filtration in the boost pump suction line | S |
| Pressure sensor | Without pressure sensor | 0 |
| Other sensors | Without sensor | 0 |
| Standard / special version | Standard version with installation variants, e.g. T ports against standard open or closed | Y |
