Unit · AXIAL-PISTON MOTOR
A6VM215EP6D1P007B/71MWVLS4A22DU-0R902243309
Axial piston motor Bosch Rexroth series A6VM, type code A6VM215EP6D1P007B/71MWVLS4A22DU-0, material number R902243309. Nominal size: NG 215. Axial piston unit: bent-axis design, variable displacement (A6V). Operating mode: motor (M). Control device: proportional control, electric negative control U = 24 V (EP6). Pressure control/override: pressure control fixed setting, only for HP5, HP6, EP5 and EP6 (D1). Connector for solenoids: DEUTSCH - molded connector, 2-pin, without suppressor diode (P). Swivel angle sensor: without swivel angle sensor (0). Additional function: without additional function (0). Stroking time damping: damping One-sided in outlet from large stroking chamber (7). Setting range for displacement: without setting screw moderate (B). Version of port and fastening threads: metric ports based on ISO 6149 with O-ring seal, metric fastening thread according to DIN 13 (M). Direction of rotation: viewed on drive shaft, bi-directional (W). Sealing material: FKM (fluorocarbon rubber) (V). Mounting flange: ISO 3019-2 200-4 (S4). Drive shaft: splined shaft DIN 5480 W50×2×24×9g (A2).
- Number
- R902243309
- Type code
- A6VM215EP6D1P007B/71MWVLS4A22DU-0
- Group
- A6VM 215
- Edition
- 06/2020

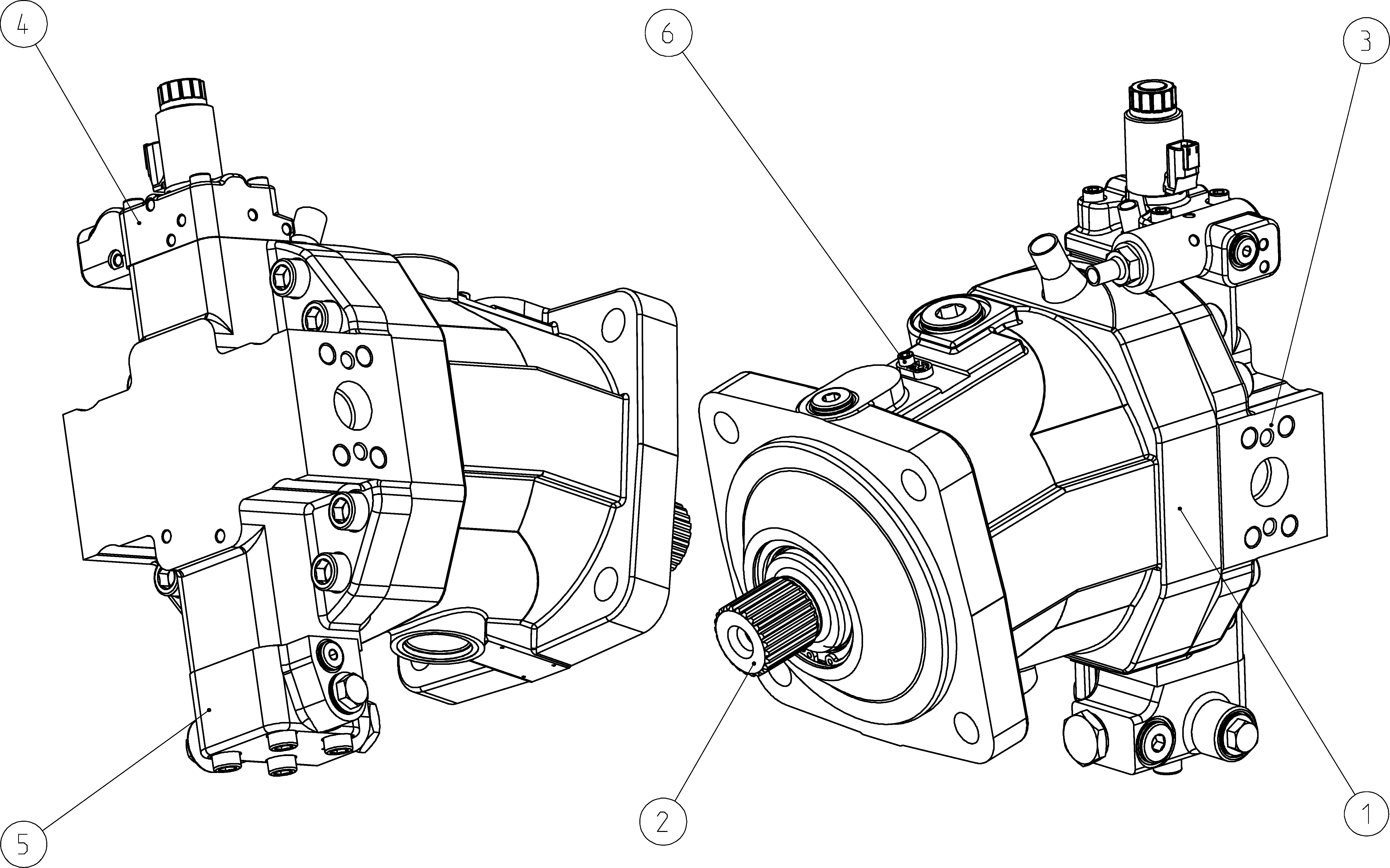

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902206579 | HOUSING Assembly parts list →L | 1 | ||
| R902224360 | ROTARY GROUP Assembly parts list →L | 1 | ||
| R902115726 | COVER PLATE Assembly parts list →L | 1 | ||
| R902139504 | CONTROL PART Assembly parts list →L | 1 | ||
| R902139503 | FLUSH/BOOST PRESSURE VALVE Assembly parts list →L | 1 | ||
| R902191651 | FLANGE COVER | 1 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Axial piston unit | Bent-axis design, variable displacement | A6V |
| Operating mode | Motor | M |
| Size (NG) | 215 | 215 |
| Control device | Proportional control, electric negative control U = 24 V | EP6 |
| Pressure control/override | Pressure control fixed setting, only for HP5, HP6, EP5 and EP6 | D1 |
| Connector for solenoids | DEUTSCH - molded connector, 2-pin, without suppressor diode | P |
| Swivel angle sensor | Without swivel angle sensor | 0 |
| Additional function | Without additional function | 0 |
| Stroking time damping | Damping One-sided in outlet from large stroking chamber | 7 |
| Setting range for displacement | Without setting screw moderate | B |
| Series | Series 7, index 1 (nominal pressure 450 bar) | 71 |
| Version of port and fastening threads | Metric ports based on ISO 6149 with O-ring seal, metric fastening thread according to DIN 13 | M |
| Direction of rotation | Viewed on drive shaft, bi-directional | W |
| Sealing material | FKM (fluorocarbon rubber) | V |
| Mounting flange | ISO 3019-2 200-4 | S4 |
| Drive shaft | Splined shaft DIN 5480 W50×2×24×9g | A2 |
| Working port | SAE working ports A and B lateral, opposite | 2 |
| Valve | 10 | D |
| Standard/special version | Standard version | 0 |
