Unit · AXIAL-PISTON MOTOR
A6VM080EP500P000D/65MWV0N4Z82CV-0R902245532
Axial piston motor Bosch Rexroth series A6VM, type code A6VM080EP500P000D/65MWV0N4Z82CV-0, material number R902245532. Nominal size: NG 80. Axial piston unit: bent-axis design, variable displacement (A6V). Operating mode: motor (M). Control device: proportional control, electric negative control U = 12 V (EP5). Pressure control/override: without pressure control/override (00). Connector for solenoids: DEUTSCH - molded connector, 2-pin, without suppressor diode (P). Swivel angle sensor: without swivel angle sensor (0). Additional function: without additional function (0). Stroking time damping: without damping (standard with HP and EP) (0). Setting range for displacement: without setting screw extra long (D). Version of port and fastening threads: metric ports based on ISO 6149 with O-ring seal, metric fastening thread according to DIN 13 (M). Direction of rotation: viewed on drive shaft, bi-directional (W). Sealing material: FKM (fluorocarbon rubber) (V). Drive shaft bearing: standard bearing (0). Mounting flange: ISO 3019-2 140-4 (N4).
- Number
- R902245532
- Type code
- A6VM080EP500P000D/65MWV0N4Z82CV-0
- Group
- A6VM 80
- Edition
- 06/2020

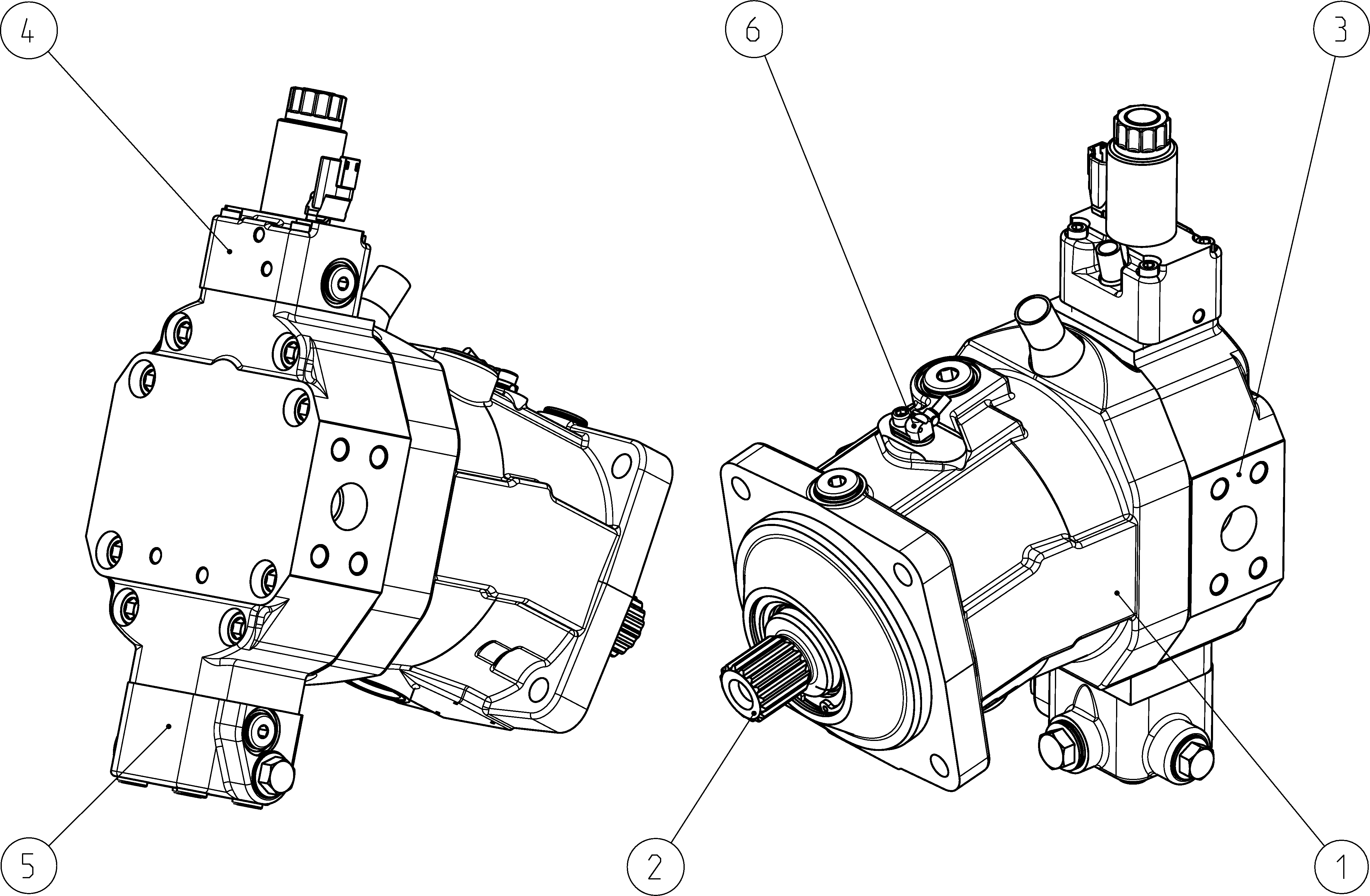

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902251224 | HOUSING Assembly parts list →L | 1 | ||
| R909604693 | ROTARY GROUP Assembly parts list →L | 1 | ||
| R902110103 | COVER PLATE Assembly parts list →L | 1 | ||
| R902110004 | CONTROL PART Assembly parts list →L | 1 | ||
| R902126739 | FLUSH/BOOST PRESSURE VALVE Assembly parts list →L | 1 | ||
| R902107666 | SENSOR Assembly parts list →L | 1 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Axial piston unit | Bent-axis design, variable displacement | A6V |
| Operating mode | Motor | M |
| Size (NG) | 80 | 080 |
| Control device | Proportional control, electric negative control U = 12 V | EP5 |
| Pressure control/override | Without pressure control/override | 00 |
| Connector for solenoids | DEUTSCH - molded connector, 2-pin, without suppressor diode | P |
| Swivel angle sensor | Without swivel angle sensor | 0 |
| Additional function | Without additional function | 0 |
| Stroking time damping | Without damping (standard with HP and EP) | 0 |
| Setting range for displacement | Without setting screw extra long | D |
| Series | Series 6, index 5 (nominal pressure 400 bar) | 65 |
| Version of port and fastening threads | Metric ports based on ISO 6149 with O-ring seal, metric fastening thread according to DIN 13 | M |
| Direction of rotation | Viewed on drive shaft, bi-directional | W |
| Sealing material | FKM (fluorocarbon rubber) | V |
| Drive shaft bearing | Standard bearing | 0 |
| Mounting flange | ISO 3019-2 140-4 | N4 |
| Drive shaft | Splined shaft DIN 5480 W35×2×16×9g | Z8 |
| Working port | SAE working ports A and B lateral, opposite | 2 |
| Valve | Only possible with port plates 1, 2 and 4 8 | C |
| Standard/special version | Standard version | 0 |
