Unit · AXIAL-PISTON MOTOR
PT-A6VM170EP6D1P00XB/71MWV0D4T12HV-SR902248010
Axial piston motor Bosch Rexroth series A6VM, type code PT-A6VM170EP6D1P00XB/71MWV0D4T12HV-S, material number R902248010. Nominal size: NG 170. Axial piston unit: bent-axis design, variable, nominal pressure 6500 psi (450 bar), maximum pressure 7700 psi (A6V). Operating mode: motor (M). Control device: proportional control, electric negative control U = 24 V (EP6). Pressure control/override: pressure control fixed setting, only for HP5, HP6, EP5 and EP6 (D1). Swivel angle detection: without (0). Additional function: without additional function (0). Setting range for displacement: no setting screw moderate (B). Direction of rotation: viewed on drive shaft, bidirectional (W). Sealing material: FKM (fluoroelastomer) (V). Drive shaft bearing: standard bearing (0). Mounting flange: SAE J744 152-4 (D4). Drive shaft: splined shaft ANSI B92.1a 1 3/4 in 13T 8/16 DP (T1). Working port: SAE working ports A and B at side, opposite (2). Valve: 4.23 (16) (H).
- Number
- R902248010
- Type code
- PT-A6VM170EP6D1P00XB/71MWV0D4T12HV-S
- Group
- A6VM 170
- Edition
- 06/2020

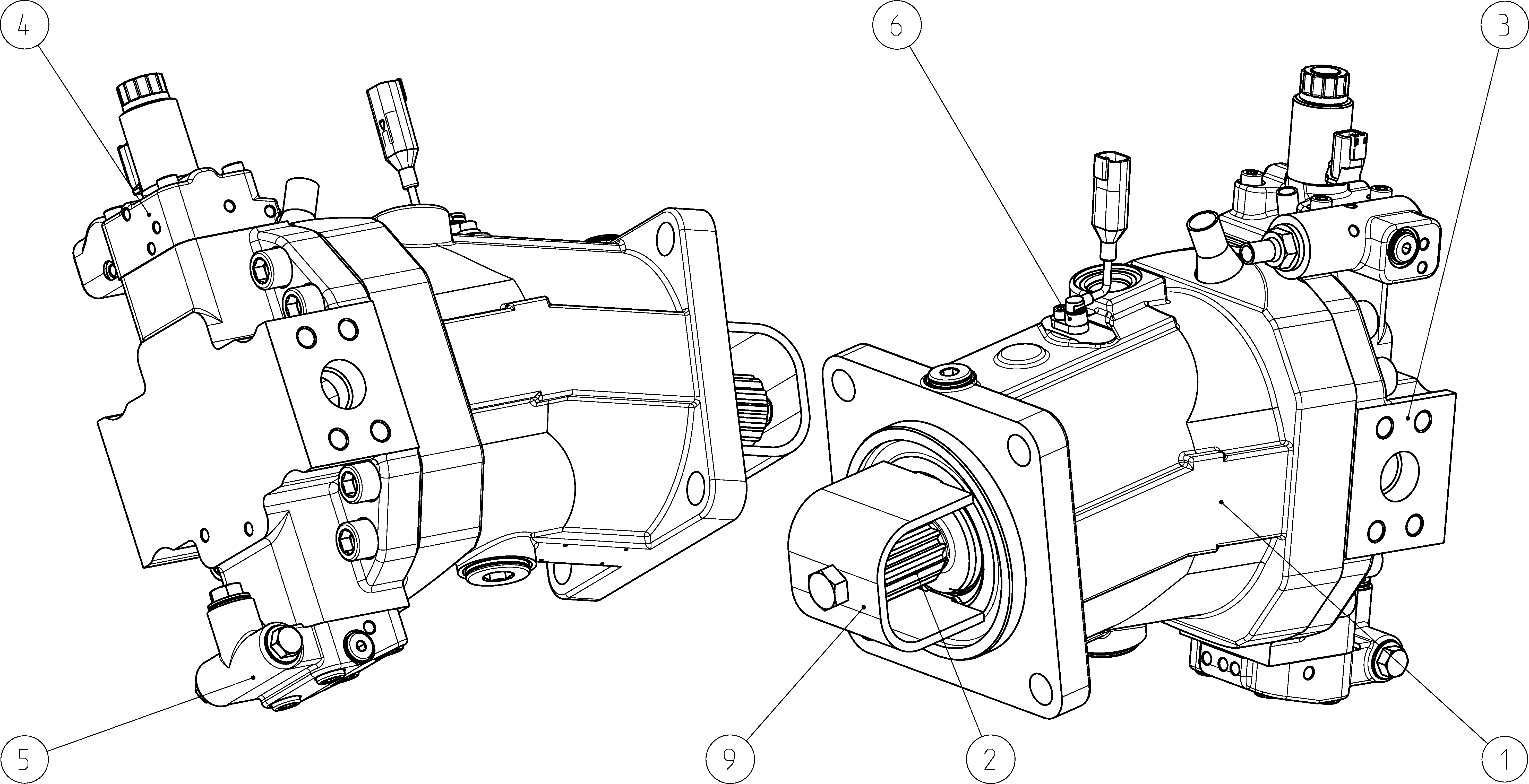

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902242652 | HOUSING Assembly parts list →L | 1 | ||
| R902277878 | ROTARY GROUP Assembly parts list →L | 1 | ||
| R902279415 | COVER PLATE Assembly parts list →L | 1 | ||
| R902139957 | CONTROL PART Assembly parts list →L | 1 | ||
| R902200119 | FLUSH/BOOST PRESSURE VALVE Assembly parts list →L | 1 | ||
| R902236082 | SENSOR Assembly parts list →L | 1 | ||
| R902126591 | SHIPPING PROTECTION Assembly parts list →L | 1 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Axial piston unit | Bent-axis design, variable, nominal pressure 6500 psi (450 bar), maximum pressure 7700 psi | A6V |
| Operating mode | Motor | M |
| Size (NG) | 170 | 170 |
| Control device | Proportional control, electric negative control U = 24 V | EP6 |
| Pressure control/override | Pressure control fixed setting, only for HP5, HP6, EP5 and EP6 | D1 |
| DEUTSCH - molded connector, 2-pin, without suppressor diode | P | |
| Swivel angle detection | Without | 0 |
| Additional function | Without additional function | 0 |
| Setting range for displacement | No setting screw moderate | B |
| Series | Series 7, Index 1 | 71 |
| Direction of rotation | Viewed on drive shaft, bidirectional | W |
| Sealing material | FKM (fluoroelastomer) | V |
| Drive shaft bearing | Standard bearing | 0 |
| Mounting flange | SAE J744 152-4 | D4 |
| Drive shaft | Splined shaft ANSI B92.1a 1 3/4 in 13T 8/16 DP | T1 |
| Working port | SAE working ports A and B at side, opposite | 2 |
| Valve | 4.23 (16) | H |
| Speed sensor | With DSA/12 speed sensor mounted | V |
| Standard/special version | Special version | S |
