Unit · AXIAL-PISTON MOTOR
A6VM200HP5D1000XG/65XWV0S4A25WV-SR902248320
Axial piston motor Bosch Rexroth series A6VM, type code A6VM200HP5D1000XG/65XWV0S4A25WV-S, material number R902248320. Nominal size: NG 200. Axial piston unit: bent-axis design, variable displacement (A6V). Operating mode: motor (M). Control device: proportional control, hydraulic negative control ΔpSt = 10 bar (HP5). Pressure control/override: pressure control fixed setting, only for HP5, HP6, EP5 and EP6 (D1). Connector for solenoids: without connectors (only for purely hydraulic control) (0). Swivel angle sensor: without swivel angle sensor (0). Additional function: without additional function (0). Setting range for displacement: short long (G). Direction of rotation: viewed on drive shaft, bi-directional (W). Sealing material: FKM (fluorocarbon rubber) (V). Drive shaft bearing: standard bearing (0). Mounting flange: ISO 3019-2 200-4 (S4). Drive shaft: splined shaft DIN 5480 W50×2×24×9g (A2). Working port: port plate for mounting a counterbalance valve, with BVD25 1-stage pressure relief valve (direct operated) (5).
- Number
- R902248320
- Type code
- A6VM200HP5D1000XG/65XWV0S4A25WV-S
- Group
- A6VM 200
- Edition
- 06/2020

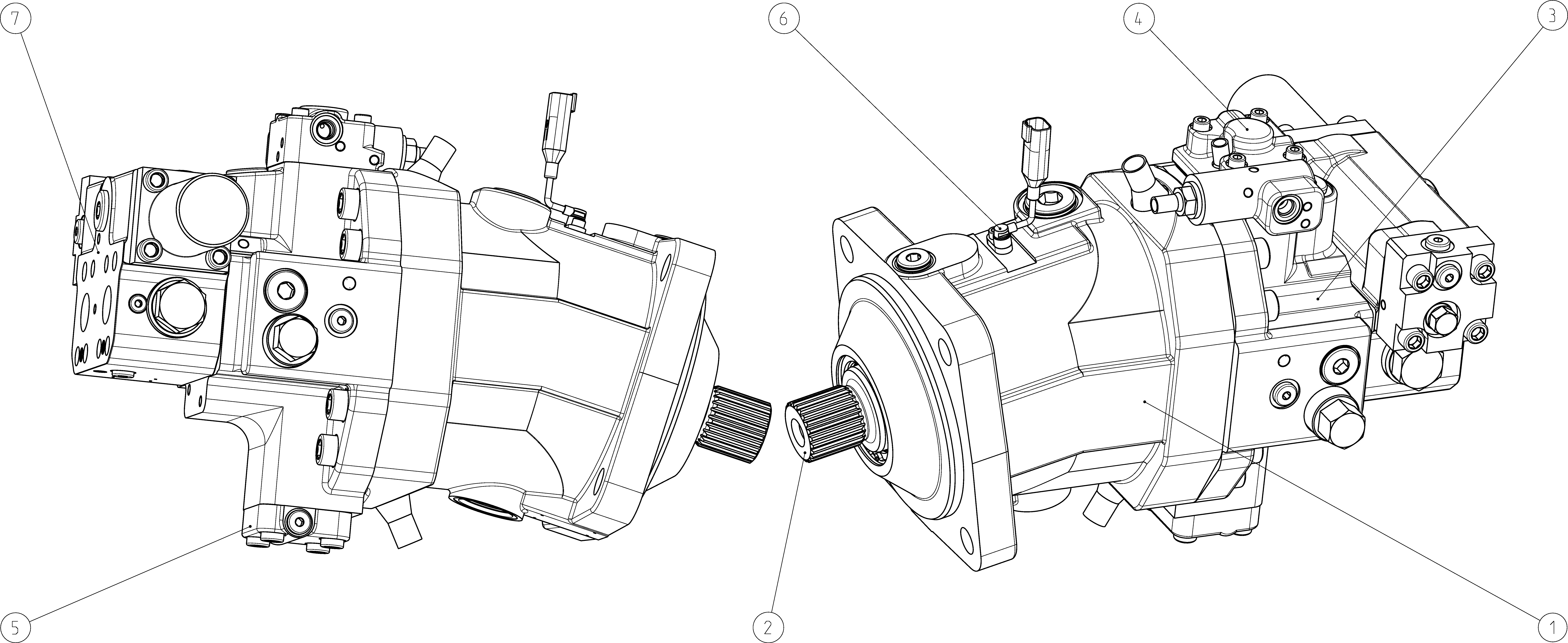

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902189183 | HOUSING Assembly parts list →L | 1 | ||
| R902276236 | ROTARY GROUP Assembly parts list →L | 1 | ||
| R902276259 | COVER PLATE Assembly parts list →L | 1 | ||
| R902248624 | CONTROL PART Assembly parts list →L | 1 | ||
| R902242634 | COVER Assembly parts list →L | 1 | ||
| R902236082 | SENSOR Assembly parts list →L | 1 | ||
| R902168453 | BRAKE VALVE Assembly parts list →L | 1 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Axial piston unit | Bent-axis design, variable displacement | A6V |
| Operating mode | Motor | M |
| Size (NG) | 200 | 200 |
| Control device | Proportional control, hydraulic negative control ΔpSt = 10 bar | HP5 |
| Pressure control/override | Pressure control fixed setting, only for HP5, HP6, EP5 and EP6 | D1 |
| Connector for solenoids | Without connectors (only for purely hydraulic control) | 0 |
| Swivel angle sensor | Without swivel angle sensor | 0 |
| Additional function | Without additional function | 0 |
| Setting range for displacement | Short long | G |
| Series | Series 6, index 5 (nominal pressure 400 bar) | 65 |
| Direction of rotation | Viewed on drive shaft, bi-directional | W |
| Sealing material | FKM (fluorocarbon rubber) | V |
| Drive shaft bearing | Standard bearing | 0 |
| Mounting flange | ISO 3019-2 200-4 | S4 |
| Drive shaft | Splined shaft DIN 5480 W50×2×24×9g | A2 |
| Working port | Port plate for mounting a counterbalance valve, with BVD25 1-stage pressure relief valve (direct operated) | 5 |
| Valve | With BVD/BVE counterbalance valves mounted | W |
| Standard/special version | Special version | S |
