Unit · AXIAL-PISTON MOTOR
A6VM107EP100P000B/65AWV0D4T12BV-0R902249669
Axial piston motor Bosch Rexroth series A6VM, type code A6VM107EP100P000B/65AWV0D4T12BV-0, material number R902249669. Nominal size: NG 107. Axial piston unit: bent-axis design, variable, nominal pressure 5800 psi (400 bar), maximum pressure (A6V). Operating mode: motor (M). Control device: proportional control positive control U = 12 V DC electrical (EP1). Pressure control/override: without pressure control/override (00). Additional function 1: without additional function (0). Additional function 2: without additional function (0). Response time damping: without damping (standard with HP and EP) (0). Setting range for displacement: without setting screw medium (B). Configuration of ports and fastening threads: ANSI, port threads with O-ring sealing according to ISO 11926 (A). Direction of rotation: viewed on drive shaft, bidirectional (W). Sealing material: FKM (fluoroelastomer) (V). Drive shaft bearing: standard bearing (0). Mounting flange: SAE J744 152-4 (D4). Drive shaft: splined shaft ANSI B92.1a 1 3/4 in 13T 8/16 DP (T1).
- Number
- R902249669
- Type code
- A6VM107EP100P000B/65AWV0D4T12BV-0
- Group
- A6VM 107
- Edition
- 06/2020

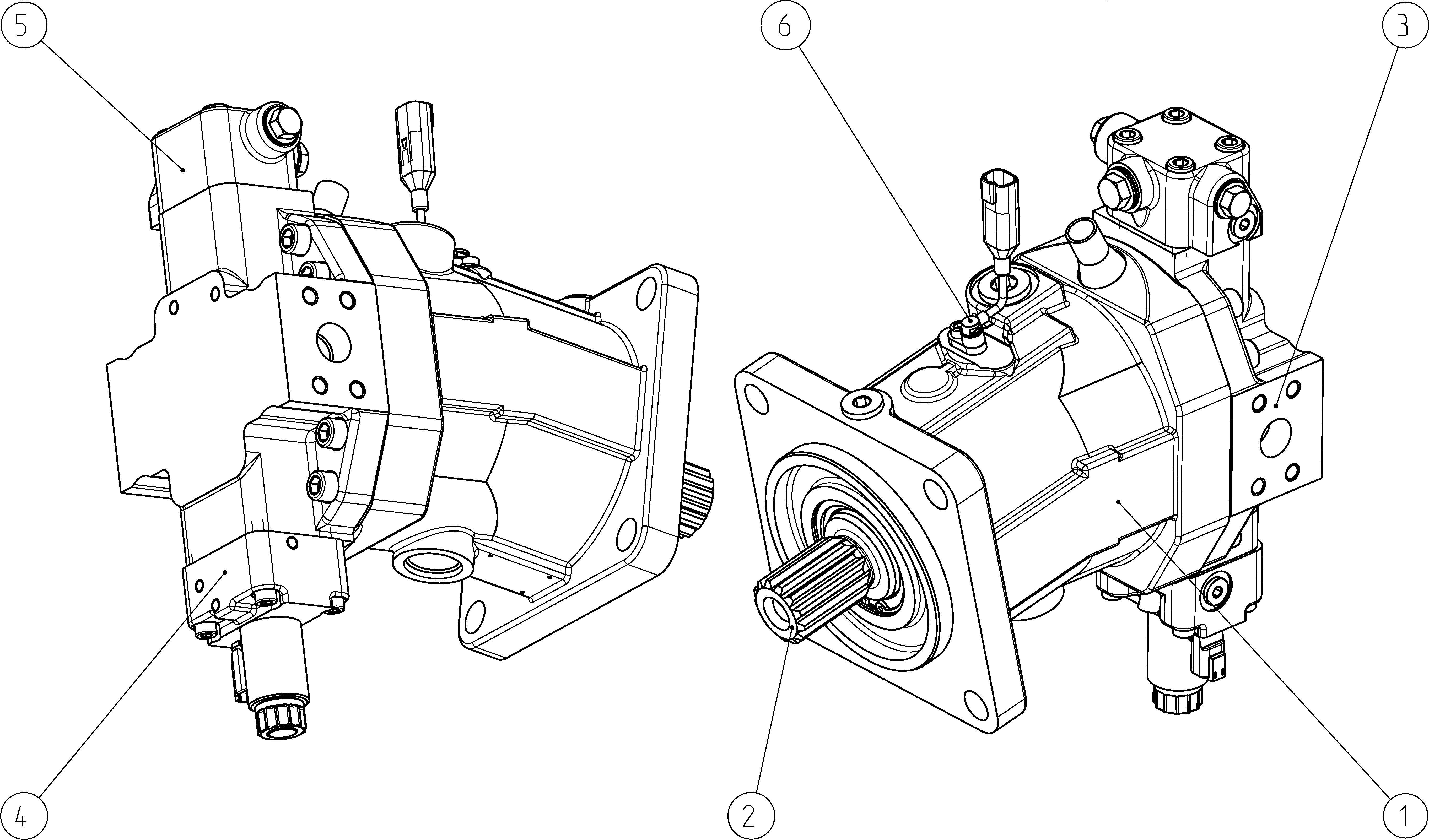

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902200243 | HOUSING Assembly parts list →L | 1 | ||
| R909604706 | ROTARY GROUP Assembly parts list →L | 1 | ||
| R902162368 | COVER PLATE Assembly parts list →L | 1 | ||
| R902139903 | CONTROL PART Assembly parts list →L | 1 | ||
| R902163660 | FLUSH/BOOST PRESSURE VALVE Assembly parts list →L | 1 | ||
| R902236083 | SENSOR Assembly parts list →L | 1 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Axial piston unit | Bent-axis design, variable, nominal pressure 5800 psi (400 bar), maximum pressure | A6V |
| Operating mode | Motor | M |
| Size (NG) | 107 | 107 |
| Control device | Proportional control positive control U = 12 V DC electrical | EP1 |
| Pressure control/override | Without pressure control/override | 00 |
| DEUTSCH - molded connector, 2-pin, without suppressor diode | P | |
| Additional function 1 | Without additional function | 0 |
| Additional function 2 | Without additional function | 0 |
| Response time damping | Without damping (standard with HP and EP) | 0 |
| Setting range for displacement | Without setting screw medium | B |
| Series | Series 6, index 5 | 65 |
| Configuration of ports and fastening threads | ANSI, port threads with O-ring sealing according to ISO 11926 | A |
| Direction of rotation | Viewed on drive shaft, bidirectional | W |
| Sealing material | FKM (fluoroelastomer) | V |
| Drive shaft bearing | Standard bearing | 0 |
| Mounting flange | SAE J744 152-4 | D4 |
| Drive shaft | Splined shaft ANSI B92.1a 1 3/4 in 13T 8/16 DP | T1 |
| Port plate for working ports | SAE working ports A and B at side, opposite | 2 |
| Valve | Flushing flow qv [gpm (l/min)], flushing flow at: Δp = pND ‒ = 365 psi (25 bar) and pG 1.3 (5) | B |
| Speed sensor | With speed sensor DSM/DSA mounted | V |
| Standard / special version | Standard version | 0 |
