Unit · PUMP COMBINATION
A4VG145EP2/40MR+A10VO60DFR1/52RR902250510
Pump combination Bosch Rexroth series A4VG, type code A4VG145EP2/40MR+A10VO60DFR1/52R, material number R902250510. Nominal size: NG 145. Axial piston unit: swashplate design, variable, nominal pressure 450 bar, maximum pressure 500 bar (A4V). Operating mode: pump, closed circuit (G). Control device: proportional control, electric U = 24 V (EP2). Connector for solenoids: without connector (only for purely hydraulic control) (0). Additional function: neutral valve U = 12 V and ports X X for stroking chamber pressure (R).
- Number
- R902250510
- Type code
- A4VG145EP2/40MR+A10VO60DFR1/52R
- Group
- A10VO 60
- Edition
- 01/2020

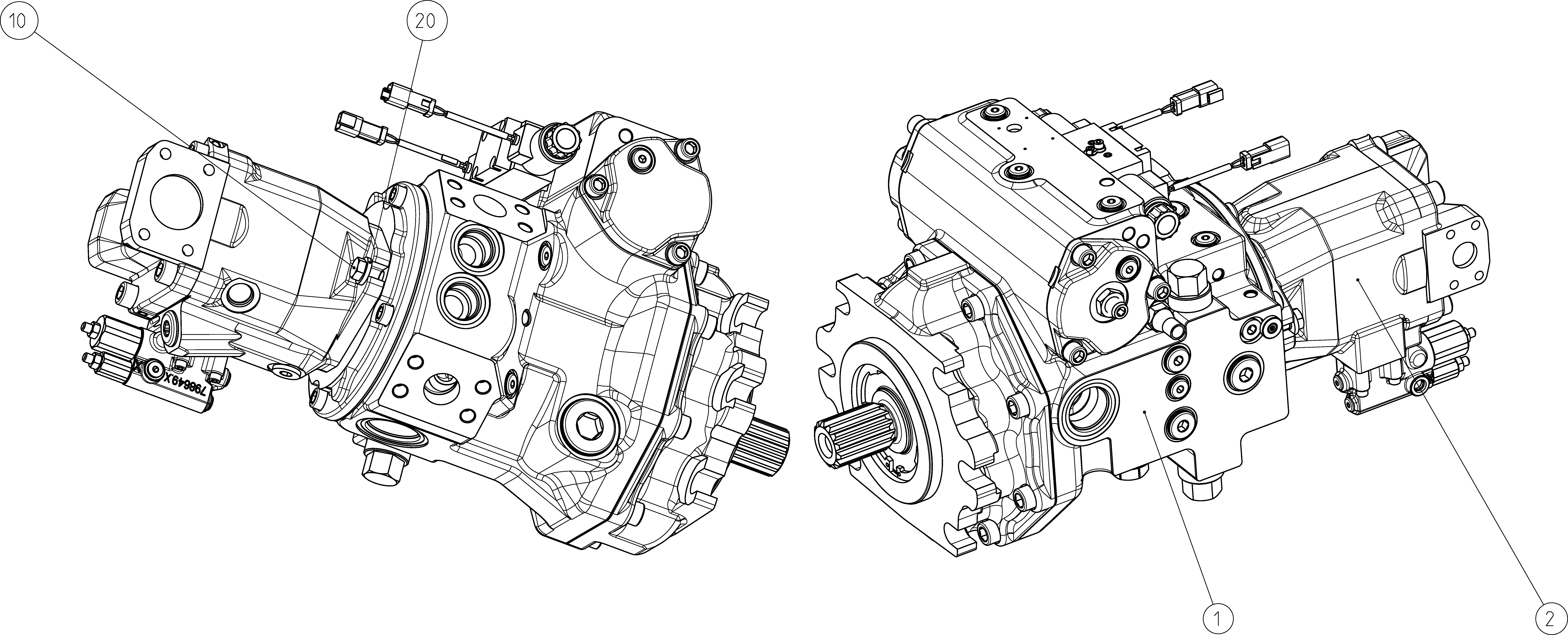

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902250509 | AXIAL-PISTON PUMP Assembly parts list →L | 1 | ||
| R902538652 | AXIAL-PISTON PUMP Assembly parts list →L | 1 | ||
| R909083708 | HEXAGON SCREW | 2 | ||
| R909430409 | WASHER | 2 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Axial piston unit | Swashplate design, variable, nominal pressure 450 bar, maximum pressure 500 bar | A4V |
| Operating mode | Pump, closed circuit | G |
| Size (NG) | 145 | 145 |
| Control device | Proportional control, electric U = 24 V | EP2 |
| Connector for solenoids | Without connector (only for purely hydraulic control) | 0 |
| Additional function | Neutral valve U = 12 V and ports X X for stroking chamber pressure | R |
