Unit · AXIAL-PISTON MOTOR
A6VM115EPWD1L001G/71MWV0P4Z9100-0R902250517
Axial piston motor Bosch Rexroth series A6VM, type code A6VM115EPWD1L001G/71MWV0P4Z9100-0, material number R902250517. Nominal size: NG 115. Axial piston unit: bent-axis design, variable displacement (A6V). Operating mode: motor (M). Control device: proportional control, electric negative control U = 24 V (EPW). Pressure control/override: pressure control fixed setting, only for HP5, HP6, EPV and EPW (D1). Connector for solenoids: cable without connector (end-splice) (L). Additional function: without (0). Additional function: without (0). Stroking time damping: damping HP, EP, HP5,6D. and EPV,WD., HZ, HA with (1). Setting range for displacement: short Long (G). Version of port and fastening threads: metric ports based on ISO 6149 with O-ring seal, metric fastening threads according to DIN 13 (M). Direction of rotation: viewed on drive shaft, bi-directional (W). Drive shaft bearing: standard bearing (0). Mounting flange: ISO 3019-2 160-4 (P4). Drive shaft: splined shaft DIN 5480 W40×2×18×9g (Z9).
- Number
- R902250517
- Type code
- A6VM115EPWD1L001G/71MWV0P4Z9100-0
- Group
- A6VM 115
- Edition
- 06/2020

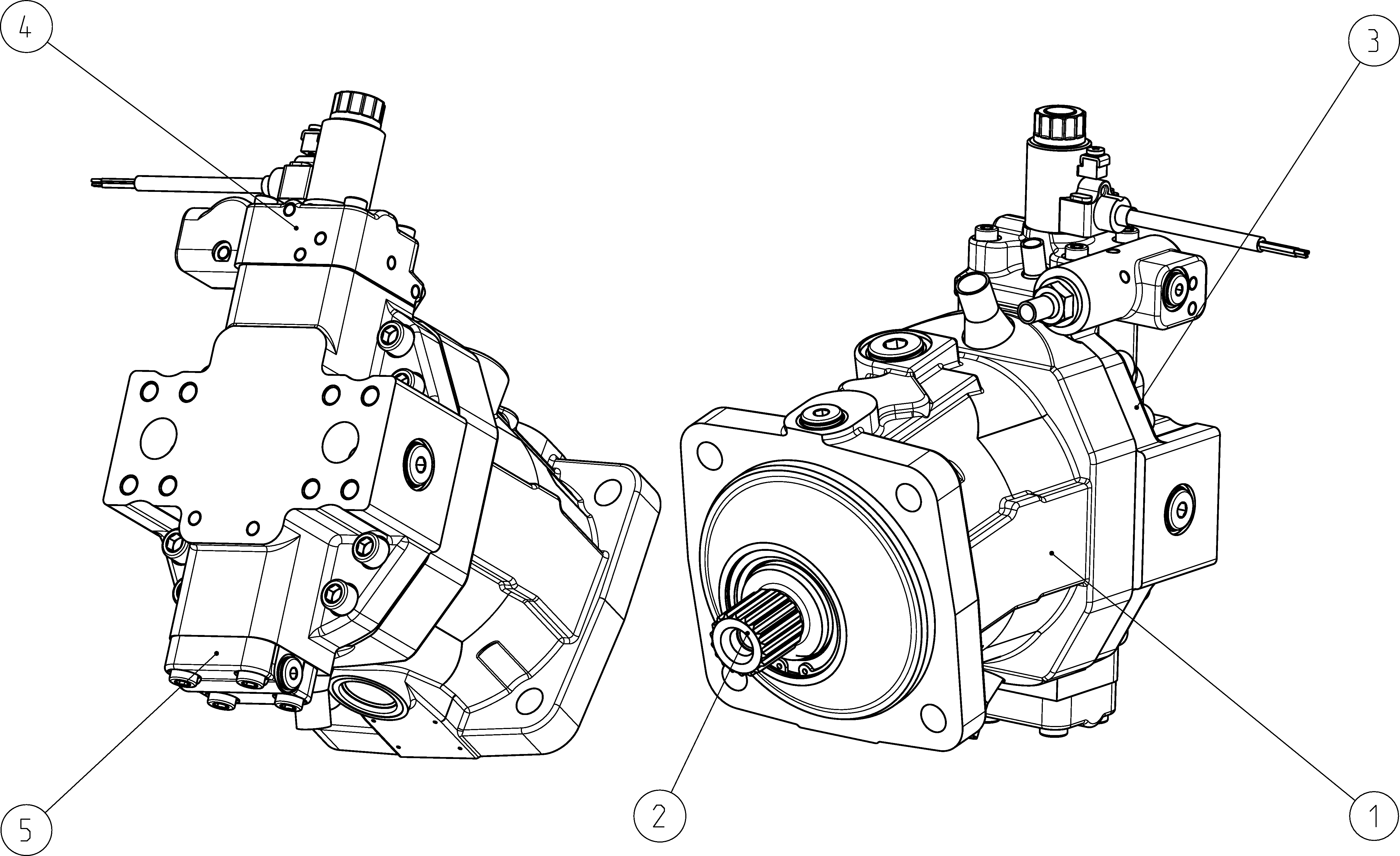

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902230099 | HOUSING Assembly parts list →L | 1 | ||
| R902124393 | ROTARY GROUP Assembly parts list →L | 1 | ||
| R902132215 | COVER PLATE Assembly parts list →L | 1 | ||
| R902248917 | CONTROL PART Assembly parts list →L | 1 | ||
| R902163848 | COVER Assembly parts list →L | 1 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Axial piston unit | Bent-axis design, variable displacement | A6V |
| Operating mode | Motor | M |
| Size (NG) | 115 | 115 |
| Control device | Proportional control, electric negative control U = 24 V | EPW |
| Pressure control/override | Pressure control fixed setting, only for HP5, HP6, EPV and EPW | D1 |
| Connector for solenoids | Cable without connector (end-splice) | L |
| Additional function | Without | 0 |
| Additional function | Without | 0 |
| Stroking time damping | Damping HP, EP, HP5,6D. and EPV,WD., HZ, HA with | 1 |
| Setting range for displacement | Short Long | G |
| Series | Series 7, index 1 | 71 |
| Version of port and fastening threads | Metric ports based on ISO 6149 with O-ring seal, metric fastening threads according to DIN 13 | M |
| Direction of rotation | Viewed on drive shaft, bi-directional | W |
| Drive shaft bearing | Standard bearing | 0 |
| Mounting flange | ISO 3019-2 160-4 | P4 |
| Drive shaft | Splined shaft DIN 5480 W40×2×18×9g | Z9 |
| Working port | SAE working ports A and B at rear | 1 |
| Valve | Without valve | 0 |
| Additional function | Without | 0 |
| Standard/special version | Standard version | 0 |
