Unit · AXIAL-PISTON PUMP
A4VG110EP4DP+A4VG110EP4DPR902250675
Axial piston pump Bosch Rexroth series A4VG, type code A4VG110EP4DP+A4VG110EP4DP, material number R902250675. Nominal size: NG 110. Axial piston unit: swashplate design, variable, nominal pressure 450 bar, maximum pressure 500 bar (A4V). Operating mode: pump, closed circuit (G). Control device: proportional control, electric with manual override and spring return U = 24 V (EP4). Pressure cut-off: pressure cut-off, with bypass Fixed setting, hydraulic, mechanical (D). Connector for solenoids: DEUTSCH molded connector, 2-pin – without suppressor diode (P).
- Number
- R902250675
- Type code
- A4VG110EP4DP+A4VG110EP4DP
- Group
- A4VG 110
- Edition
- 06/2020

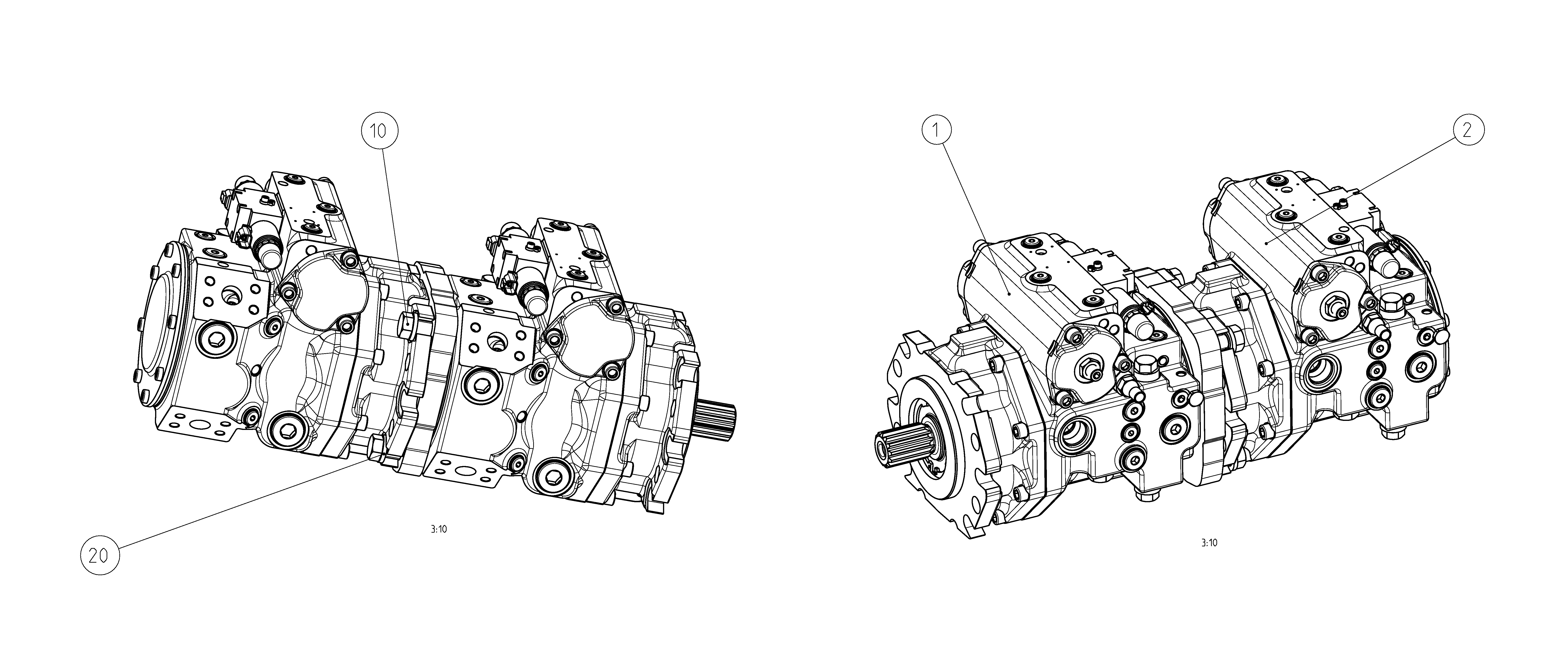

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902250674 | AXIAL-PISTON PUMP Assembly parts list →L | 1 | ||
| R902250673 | AXIAL-PISTON PUMP Assembly parts list →L | 1 | ||
| R909152538 | HEXAGON SCREW | 4 | ||
| R909436988 | WASHER | 4 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Axial piston unit | Swashplate design, variable, nominal pressure 450 bar, maximum pressure 500 bar | A4V |
| Operating mode | Pump, closed circuit | G |
| Size (NG) | 110 | 110 |
| Control device | Proportional control, electric with manual override and spring return U = 24 V | EP4 |
| Pressure cut-off | Pressure cut-off, with bypass Fixed setting, hydraulic, mechanical | D |
| Connector for solenoids | DEUTSCH molded connector, 2-pin – without suppressor diode | P |
