Unit · AXIAL-PISTON MOTOR
A6VE055DA0000007C/65MWV0P2Z6200-0R902250980
Axial piston motor Bosch Rexroth series A6VE, type code A6VE055DA0000007C/65MWV0P2Z6200-0, material number R902250980. Nominal size: NG 55. Axial piston unit: bent-axis design, variable (A6V). Operating mode: plug-in motor (E). Control device: speed related, negative Hydr. travel direction valve control pSt / pHD = 5/100 (DA0). Pressure control/override: without pressure control/override (00). Additional function 1: without additional function (0). Additional function 2: without additional function (0). Setting range for displacement: without setting screw Long (C). Version of port and fastening threads: metric ports based on ISO 6149 with O-ring seal, metric fastening threads according to DIN 13 (M). Direction of rotation: viewed on drive shaft, bidirectional (W). Sealing material: FKM (fluorocarbon rubber) (V). Drive shaft bearing: standard bearing (0). Mounting flange: ISO 3019-2 160-2 (P2). Drive shaft: splined shaft DIN 5480 W30×2×14×9g (Z6). Working port: SAE working ports A and B at side, opposite (2).
- Number
- R902250980
- Type code
- A6VE055DA0000007C/65MWV0P2Z6200-0
- Group
- A6VE 55
- Edition
- 06/2020

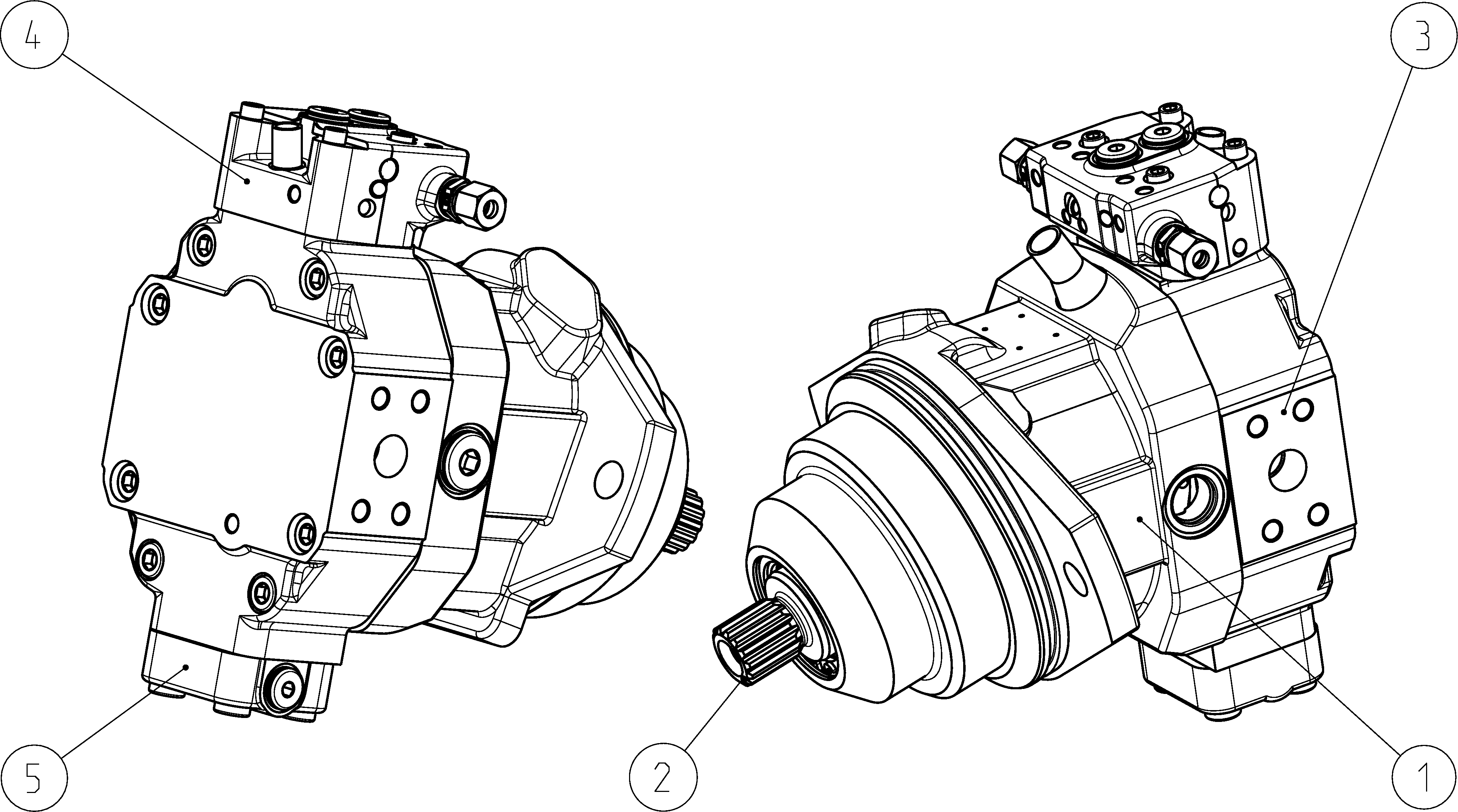

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902216099 | HOUSING Assembly parts list →L | 1 | ||
| R909603915 | ROTARY GROUP Assembly parts list →L | 1 | ||
| R902200131 | COVER PLATE Assembly parts list →L | 1 | ||
| R902126773 | CONTROL PART Assembly parts list →L | 1 | ||
| R902196883 | COVER Assembly parts list →L | 1 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Axial piston unit | Bent-axis design, variable | A6V |
| Operating mode | Plug-in motor | E |
| Size (NG) | 55 | 055 |
| Control device | speed related, negative Hydr. travel direction valve control pSt / pHD = 5/100 | DA0 |
| Pressure control/override | Without pressure control/override | 00 |
| Without connector (without solenoid, only for hydraulic control) | 0 | |
| Additional function 1 | Without additional function | 0 |
| Additional function 2 | Without additional function | 0 |
| Setting range for displacement | Without setting screw Long | C |
| Series | Series 6, index 5 | 65 |
| Version of port and fastening threads | Metric ports based on ISO 6149 with O-ring seal, metric fastening threads according to DIN 13 | M |
| Direction of rotation | Viewed on drive shaft, bidirectional | W |
| Sealing material | FKM (fluorocarbon rubber) | V |
| Drive shaft bearing | Standard bearing | 0 |
| Mounting flange | ISO 3019-2 160-2 | P2 |
| Drive shaft | Splined shaft DIN 5480 W30×2×14×9g | Z6 |
| Working port | SAE working ports A and B at side, opposite | 2 |
| Valve | Without valve | 0 |
| Standard/special version | Standard version | 0 |
