Unit · AXIAL-PISTON MOTOR
A6VM140EZ100P001X/65MWV0D4XX1K0-SR902251613
Axial piston motor Bosch Rexroth series A6VM, type code A6VM140EZ100P001X/65MWV0D4XX1K0-S, material number R902251613. Nominal size: NG 140. Axial piston unit: bent-axis design, variable, nominal pressure 5800 psi (400 bar), maximum pressure (A6V). Operating mode: motor (M). Pressure control/override: without pressure control/override (00). Additional function 1: without additional function (0). Additional function 2: without additional function (0). Response time damping: damping HP, EP, HP5,6D. and EP5,6D., HZ, EZ, HA with counterbalance (1). Direction of rotation: viewed on drive shaft, bidirectional (W). Sealing material: FKM (fluoroelastomer) (V). Drive shaft bearing: standard bearing (0). Mounting flange: SAE J744 152-4 (D4). Port plate for working ports: SAE working ports A and B at rear (1). Valve: flushing flow qv [gpm (l/min)], 7.1 (27) (K). Speed sensor: without speed sensor (0). Standard / special version: special version (S).
- Number
- R902251613
- Type code
- A6VM140EZ100P001X/65MWV0D4XX1K0-S
- Group
- A6VM 140
- Edition
- 06/2020

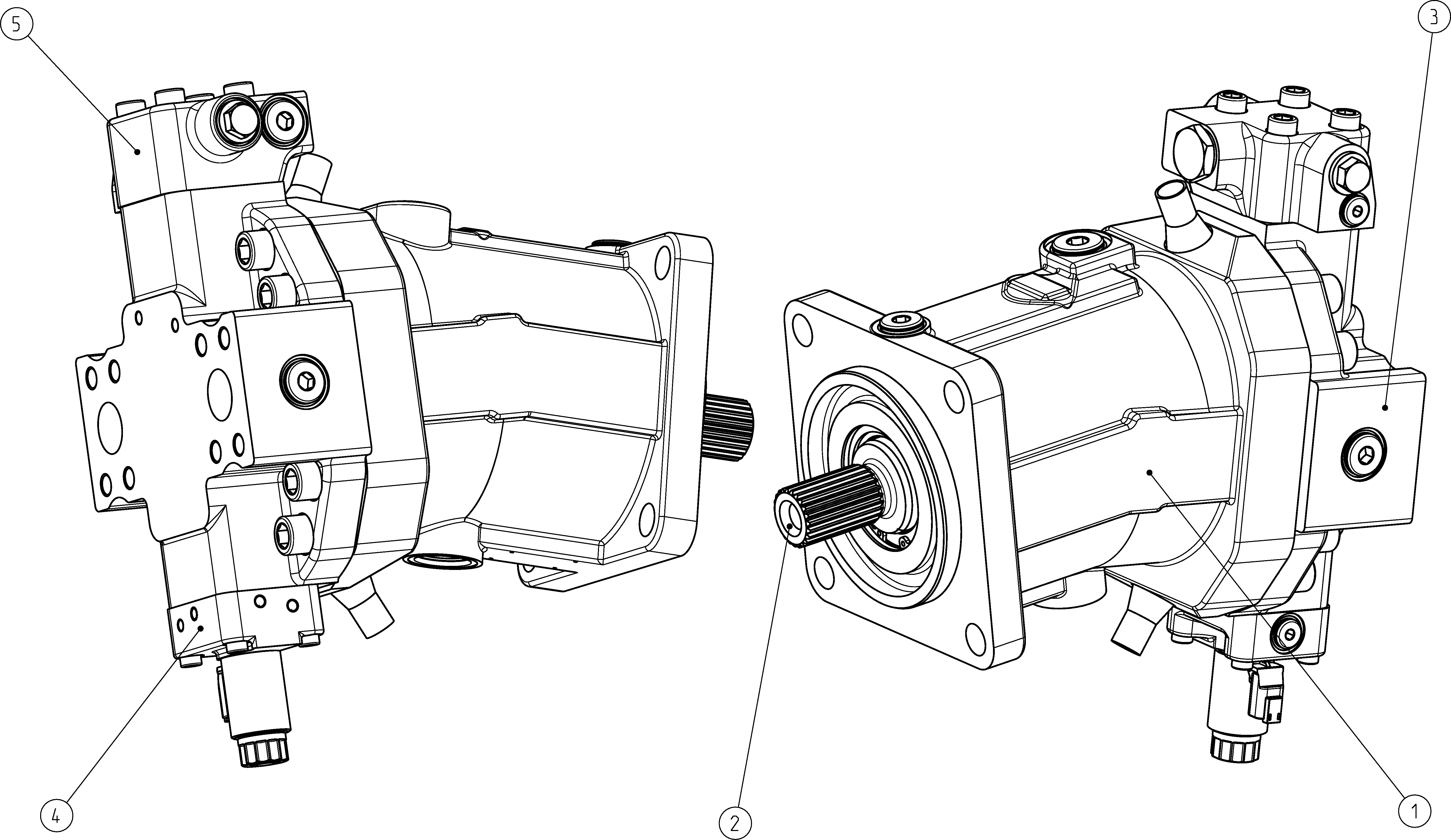

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902253174 | HOUSING Assembly parts list →L | 1 | ||
| R902253136 | ROTARY GROUP Assembly parts list →L | 1 | ||
| R902251389 | COVER PLATE Assembly parts list →L | 1 | ||
| R902221960 | CONTROL PART Assembly parts list →L | 1 | ||
| R902248541 | FLUSH/BOOST PRESSURE VALVE Assembly parts list →L | 1 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Axial piston unit | Bent-axis design, variable, nominal pressure 5800 psi (400 bar), maximum pressure | A6V |
| Operating mode | Motor | M |
| Size (NG) | 140 | 140 |
| Pressure control/override | Without pressure control/override | 00 |
| DEUTSCH - molded connector, 2-pin, without suppressor diode | P | |
| Additional function 1 | Without additional function | 0 |
| Additional function 2 | Without additional function | 0 |
| Response time damping | Damping HP, EP, HP5,6D. and EP5,6D., HZ, EZ, HA with counterbalance | 1 |
| Series | Series 6, index 5 | 65 |
| Direction of rotation | Viewed on drive shaft, bidirectional | W |
| Sealing material | FKM (fluoroelastomer) | V |
| Drive shaft bearing | Standard bearing | 0 |
| Mounting flange | SAE J744 152-4 | D4 |
| Port plate for working ports | SAE working ports A and B at rear | 1 |
| Valve | Flushing flow qv [gpm (l/min)], 7.1 (27) | K |
| Speed sensor | Without speed sensor | 0 |
| Standard / special version | Special version | S |
