Unit · PUMP COMBINATION
A4VG110EP1D/40AL+A4VG110EP1D/40ALR902251873
Pump combination Bosch Rexroth series A4VG, type code A4VG110EP1D/40AL+A4VG110EP1D/40AL, material number R902251873. Axial piston unit: swashplate design, variable, nominal pressure 6500 psi (450 bar), maximum pressure 7250 psi (A4V). Operating mode: pump, closed circuit (G). Control device: proportional control, U = 12 V electric (EP1). Pressure cut-off: pressure cut-off, with bypass Fixed setting, hydraulic, mechanical (D). Configuration of port and fastening threads: ports according to ISO 11926 with O-ring seal (ANSI), fastening thread according to ASME (A). Direction of rotation: viewed on drive shaft counter-clockwise (L).
- Number
- R902251873
- Type code
- A4VG110EP1D/40AL+A4VG110EP1D/40AL
- Group
- A4VG 110
- Edition
- 01/2020

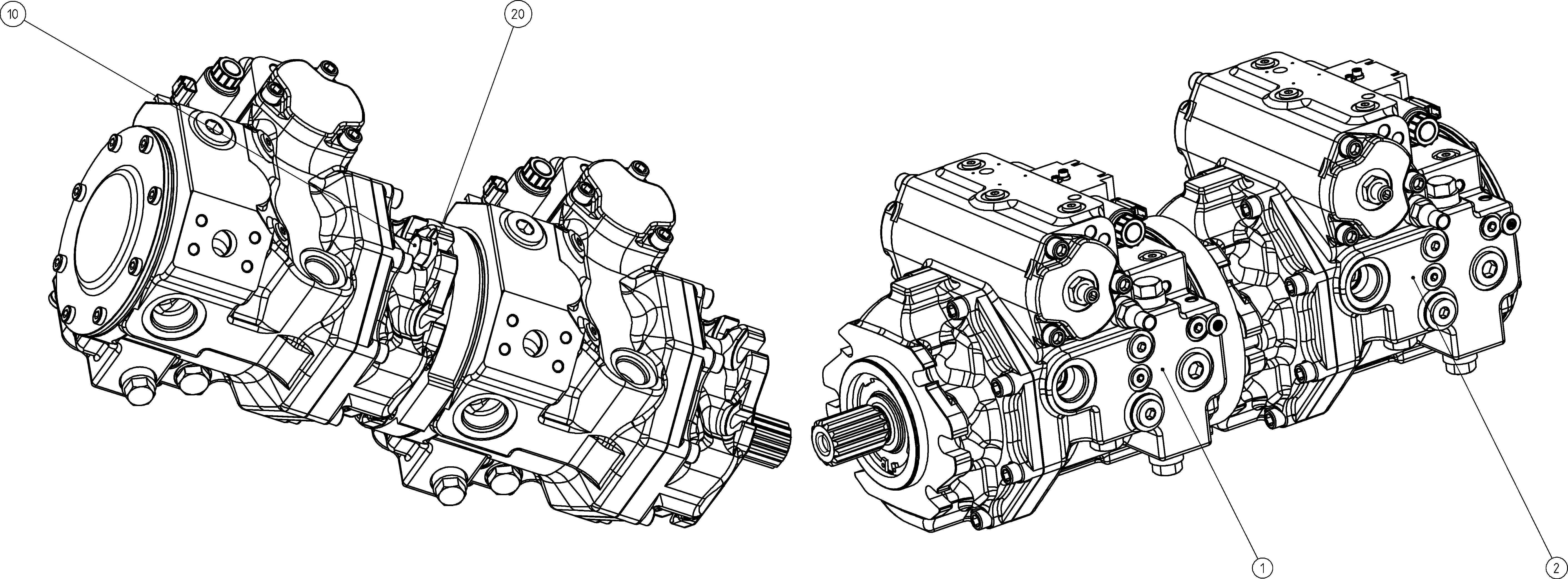

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902251870 | AXIAL-PISTON PUMP Assembly parts list →L | 1 | ||
| R902251871 | AXIAL-PISTON PUMP Assembly parts list →L | 1 | ||
| R909153318 | HEXAGON SCREW | 2 | ||
| R902040708 | WASHER | 2 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Axial piston unit | Swashplate design, variable, nominal pressure 6500 psi (450 bar), maximum pressure 7250 psi | A4V |
| Operating mode | Pump, closed circuit | G |
| Control device | Proportional control, U = 12 V electric | EP1 |
| Pressure cut-off | Pressure cut-off, with bypass Fixed setting, hydraulic, mechanical | D |
| Series | Series 4, index 0 | 40 |
| Configuration of port and fastening threads | Ports according to ISO 11926 with O-ring seal (ANSI), fastening thread according to ASME | A |
| Direction of rotation | Viewed on drive shaft counter-clockwise | L |
