Unit · AXIAL-PISTON MOTOR
A6VM150HA1R2Q0X4F/71XWV0R4A11XV-SR902251950
Axial piston motor Bosch Rexroth series A6VM, type code A6VM150HA1R2Q0X4F/71XWV0R4A11XV-S, material number R902251950. Nominal size: NG 150. Axial piston unit: bent-axis design, variable displacement (A6V). Operating mode: motor (M). Control device: automatic high-pressure With minimum pressure Δp ≤ approx. related control, positive increase 10 bar control (HA1). Pressure control/override: override of the HA1 and HA2 controls electric and travel direction valve, electric U = 24 V (R2). Swivel angle sensor: without swivel angle sensor (0). Stroking time damping: damping One-sided in inlet to large stroking chamber (HA) (4). Setting range for displacement: short moderate (F). Direction of rotation: viewed on drive shaft, bi-directional (W). Sealing material: FKM (fluorocarbon rubber) (V). Drive shaft bearing: standard bearing (0). Mounting flange: ISO 3019-2 180-4 (R4). Drive shaft: splined shaft DIN 5480 W45×2×21×9g (A1). Working port: SAE working port A and B at rear (1). Standard/special version: special version (S).
- Number
- R902251950
- Type code
- A6VM150HA1R2Q0X4F/71XWV0R4A11XV-S
- Group
- A6VM 150
- Edition
- 06/2020

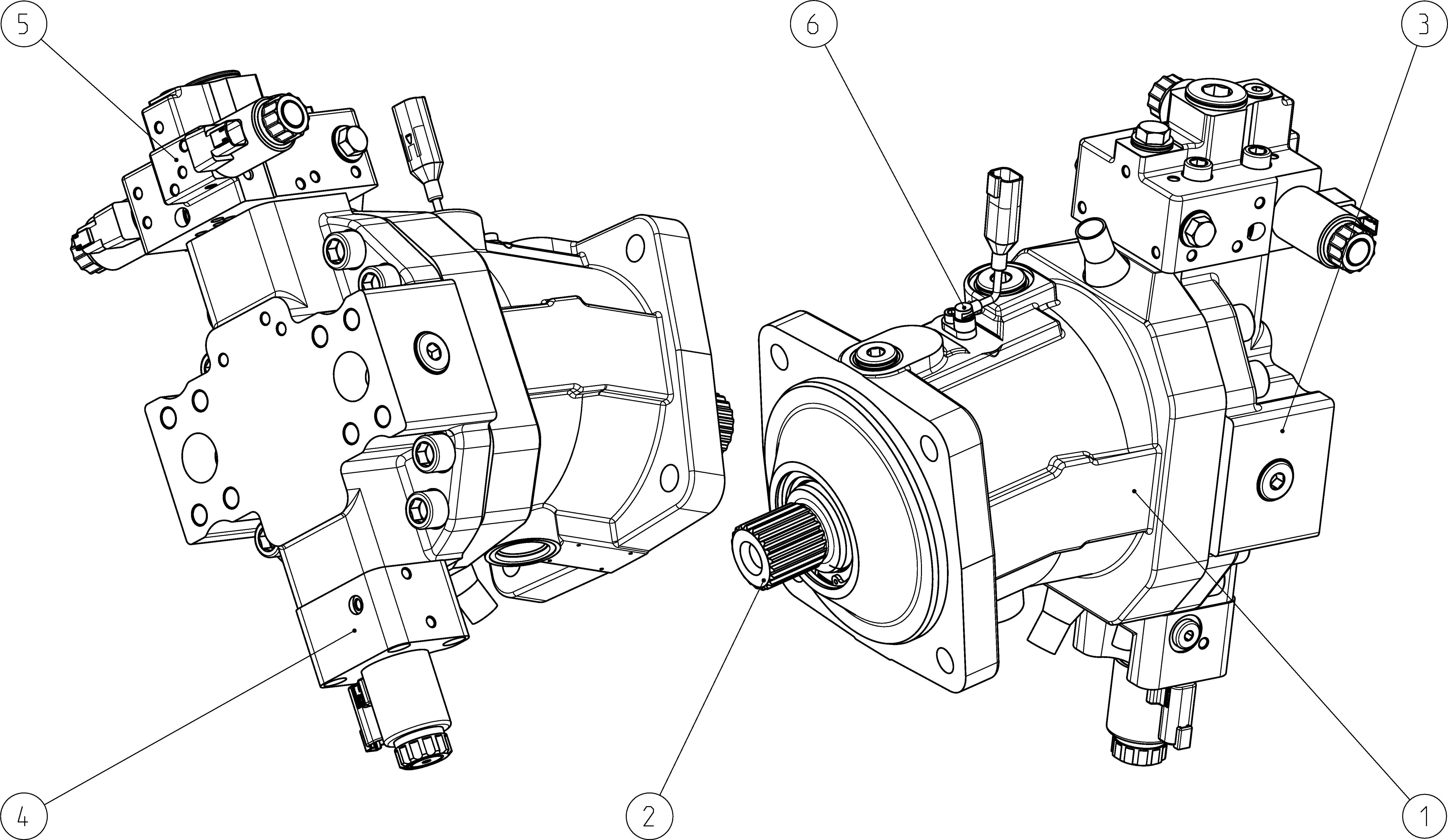

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902230280 | HOUSING Assembly parts list →L | 1 | ||
| R902130542 | ROTARY GROUP Assembly parts list →L | 1 | ||
| R902134572 | COVER PLATE Assembly parts list →L | 1 | ||
| R902251492 | CONTROL PART Assembly parts list →L | 1 | ||
| R902251494 | STROKE LIMITER Assembly parts list →L | 1 | ||
| R902236078 | SENSOR Assembly parts list →L | 1 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Axial piston unit | Bent-axis design, variable displacement | A6V |
| Operating mode | Motor | M |
| Size (NG) | 150 | 150 |
| Control device | Automatic high-pressure With minimum pressure Δp ≤ approx. related control, positive increase 10 bar control | HA1 |
| Pressure control/override | Override of the HA1 and HA2 controls electric and travel direction valve, electric U = 24 V | R2 |
| Swivel angle sensor | Without swivel angle sensor | 0 |
| Stroking time damping | Damping One-sided in inlet to large stroking chamber (HA) | 4 |
| Setting range for displacement | Short moderate | F |
| Series | Series 7, index 1 (nominal pressure 450 bar) | 71 |
| Direction of rotation | Viewed on drive shaft, bi-directional | W |
| Sealing material | FKM (fluorocarbon rubber) | V |
| Drive shaft bearing | Standard bearing | 0 |
| Mounting flange | ISO 3019-2 180-4 | R4 |
| Drive shaft | Splined shaft DIN 5480 W45×2×21×9g | A1 |
| Working port | SAE working port A and B at rear | 1 |
| Standard/special version | Special version | S |
