Unit · AXIAL-PISTON PUMP
A10VG45EP4/10+A10VG28EZ2/10R902253526
Axial piston pump Bosch Rexroth series A10VG, type code A10VG45EP4/10+A10VG28EZ2/10, material number R902253526. Nominal size: NG 45. Operating mode: pump, closed circuit (G). Control device: proportional control, electric (EP4).
- Number
- R902253526
- Type code
- A10VG45EP4/10+A10VG28EZ2/10
- Group
- A10VG 45
- Edition
- 06/2020

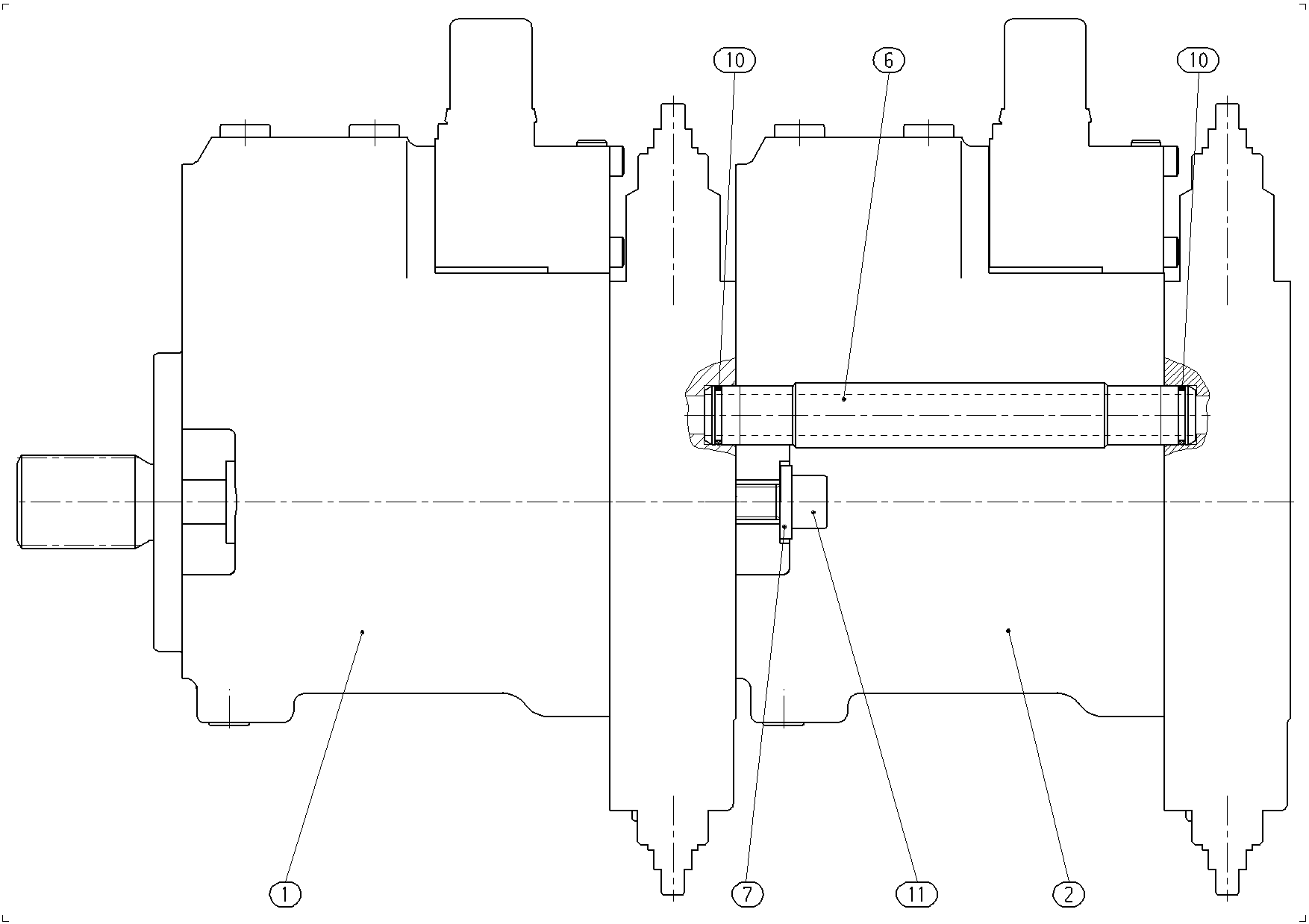

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902253524 | AXIAL-PISTON PUMP Assembly parts list →L | 1 | ||
| R902253525 | AXIAL-PISTON PUMP Assembly parts list →L | 1 | ||
| R909651425 | SOCKET PIPE | 1 | ||
| R909430409 | WASHER | 2 | ||
| R909084939 | O-RING | 2 | ||
| R909083089 | SOCKET HEAD CAP SCREW | 2 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Operating mode | Pump, closed circuit | G |
| Size (NG) | 45 | 45 |
| Control device | Proportional control, electric | EP4 |
| Series | Series 1, index 0 | 10 |
