Unit · AXIAL-PISTON MOTOR
A6VM107HA2R2Q004B/65MWV0P4A11C0-0R902253638
Axial piston motor Bosch Rexroth series A6VM, type code A6VM107HA2R2Q004B/65MWV0P4A11C0-0, material number R902253638. Nominal size: NG 107. Axial piston unit: bent-axis design, variable displacement (A6V). Operating mode: motor (M). Control device: automatic high-pressure related control, positive control with pressure increase Δp = 100 bar (HA2). Pressure control/override: override of the HA1 and HA2 controls electric and travel direction valve, electric U = 24 V (R2). Swivel angle sensor: without swivel angle sensor (0). Additional function: without additional function (0). Stroking time damping: damping One-sided in inlet to large stroking chamber (HA) (4). Setting range for displacement: without setting screw moderate (B). Version of port and fastening threads: metric ports based on ISO 6149 with O-ring seal, metric fastening thread according to DIN 13 (M). Direction of rotation: viewed on drive shaft, bi-directional (W). Sealing material: FKM (fluorocarbon rubber) (V). Drive shaft bearing: standard bearing (0). Mounting flange: ISO 3019-2 160-4 (P4). Drive shaft: splined shaft DIN 5480 W45×2×21×9g (A1).
- Number
- R902253638
- Type code
- A6VM107HA2R2Q004B/65MWV0P4A11C0-0
- Group
- A6VM 107
- Edition
- 06/2020

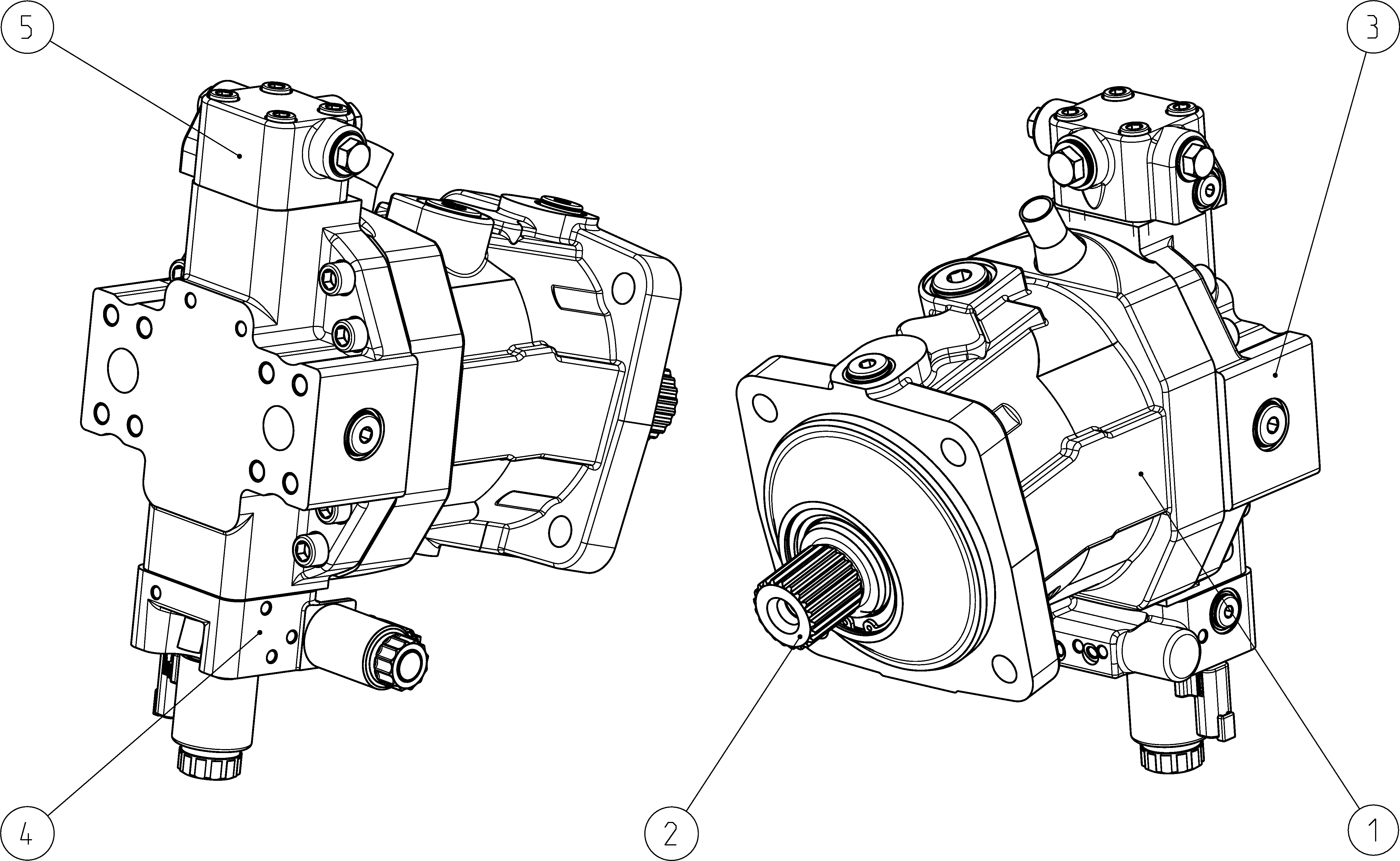

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902124352 | HOUSING Assembly parts list →L | 1 | ||
| R909604146 | ROTARY GROUP Assembly parts list →L | 1 | ||
| R902126995 | COVER PLATE Assembly parts list →L | 1 | ||
| R902253311 | CONTROL PART Assembly parts list →L | 1 | ||
| R902126791 | FLUSH/BOOST PRESSURE VALVE Assembly parts list →L | 1 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Axial piston unit | Bent-axis design, variable displacement | A6V |
| Operating mode | Motor | M |
| Size (NG) | 107 | 107 |
| Control device | Automatic high-pressure related control, positive control with pressure increase Δp = 100 bar | HA2 |
| Pressure control/override | Override of the HA1 and HA2 controls electric and travel direction valve, electric U = 24 V | R2 |
| Swivel angle sensor | Without swivel angle sensor | 0 |
| Additional function | Without additional function | 0 |
| Stroking time damping | Damping One-sided in inlet to large stroking chamber (HA) | 4 |
| Setting range for displacement | Without setting screw moderate | B |
| Series | Series 6, index 5 (nominal pressure 400 bar) | 65 |
| Version of port and fastening threads | Metric ports based on ISO 6149 with O-ring seal, metric fastening thread according to DIN 13 | M |
| Direction of rotation | Viewed on drive shaft, bi-directional | W |
| Sealing material | FKM (fluorocarbon rubber) | V |
| Drive shaft bearing | Standard bearing | 0 |
| Mounting flange | ISO 3019-2 160-4 | P4 |
| Drive shaft | Splined shaft DIN 5480 W45×2×21×9g | A1 |
| Working port | SAE working port A and B at rear | 1 |
| Valve | Only possible with port plates 1, 2 and 4 8 | C |
| Speed sensor | Without speed sensor | 0 |
| Standard/special version | Standard version | 0 |
