Unit · PUMP COMBINATION
A4VG250EP4DT1/32R+A4VG250EP4DT1/32R-KR902253866
Pump combination Bosch Rexroth series A4VG, type code A4VG250EP4DT1/32R+A4VG250EP4DT1/32R-K, material number R902253866. Nominal size: NG 250. Axial piston unit: swashplate design, variable, nominal pressure 5800 psi (400 bar), maximum pressure 6500 psi (A4V). Operating mode: pump, closed circuit (G). Control device: proportional control electric with inlet filtration in P U = 24 V (EP4). Pressure cut-off: pressure cut-off (D). Stroking chamber pressure port: stroking chamber pressure port X X (T). DA control valve: without DA control valve (1). Direction of rotation: viewed on drive shaft clockwise (R).
- Number
- R902253866
- Type code
- A4VG250EP4DT1/32R+A4VG250EP4DT1/32R-K
- Group
- A4VG 250
- Edition
- 06/2020

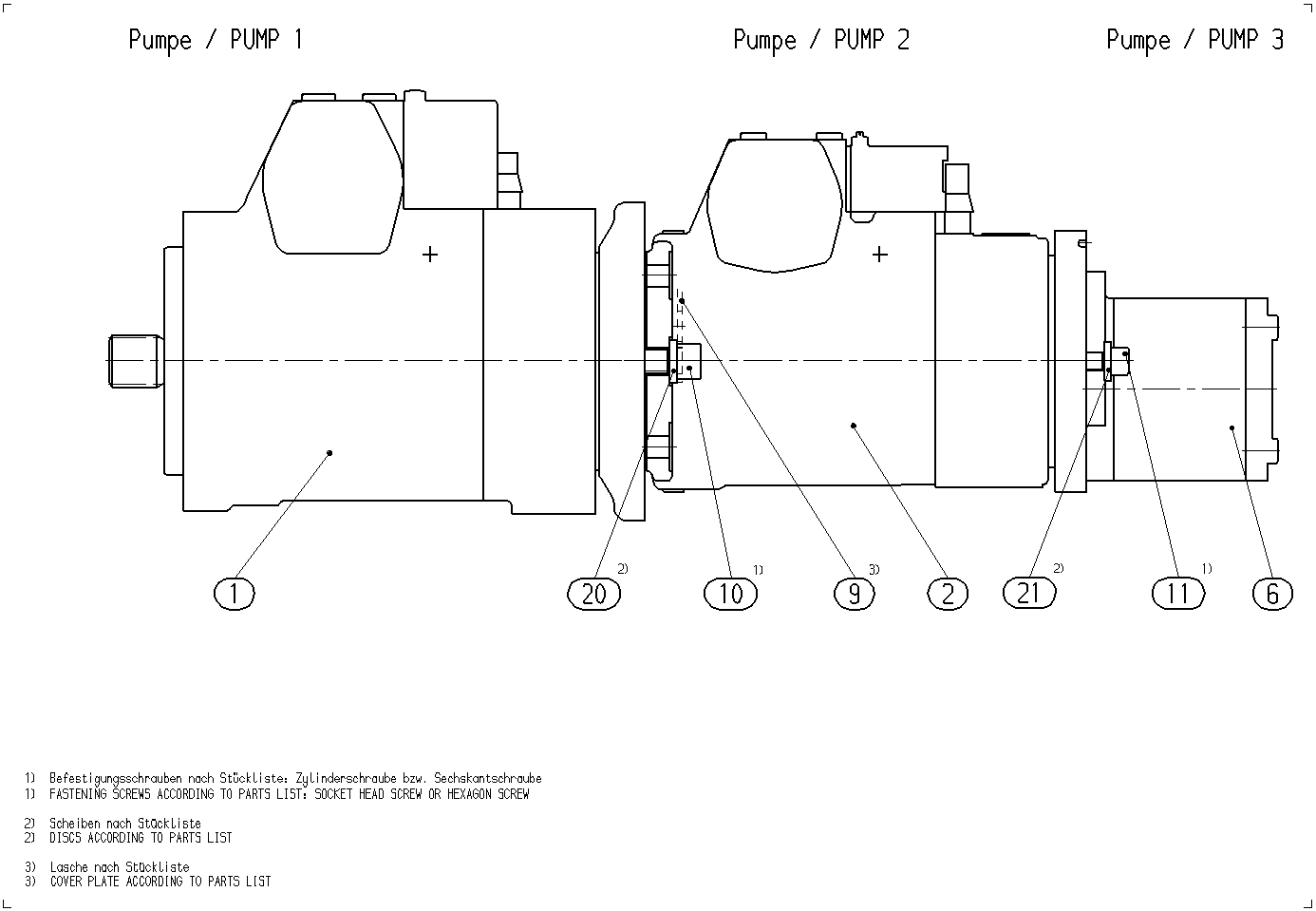

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902253865 | AXIAL-PISTON PUMP Assembly parts list →L | 1 | ||
| R902253864 | AXIAL-PISTON PUMP Assembly parts list →L | 1 | ||
| 0510425041 | HYDRAULIC GEAR PUMPL | 1 | ||
| R909083058 | SOCKET HEAD CAP SCREW | 2 | ||
| R909152538 | HEXAGON SCREW | 4 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Axial piston unit | Swashplate design, variable, nominal pressure 5800 psi (400 bar), maximum pressure 6500 psi | A4V |
| Operating mode | Pump, closed circuit | G |
| Size (NG) | 250 | 250 |
| Control device | Proportional control electric with inlet filtration in P U = 24 V | EP4 |
| Pressure cut-off | Pressure cut-off | D |
| Stroking chamber pressure port | Stroking chamber pressure port X X | T |
| DA control valve | Without DA control valve | 1 |
| Series | Series 3, index 2 | 32 |
| Direction of rotation | Viewed on drive shaft clockwise | R |
