Unit · AXIAL-PISTON MOTOR
A6VM150EP500P000A/71MLV0D4XX2KH-SR902253900
Axial piston motor Bosch Rexroth series A6VM, type code A6VM150EP500P000A/71MLV0D4XX2KH-S, material number R902253900. Nominal size: NG 150. Axial piston unit: bent-axis design, variable, nominal pressure 6500 psi (450 bar), maximum pressure 7700 psi (A6V). Operating mode: motor (M). Control device: proportional control, electric negative control U = 12 V (EP5). Pressure control/override: without pressure control/override (00). Swivel angle detection: without (0). Additional function: without additional function (0). Stroking time damping: without damping (standard with HP and EP) (0). Setting range for displacement: no setting screw short (0-adjustable) (A). Sealing material: FKM (fluoroelastomer) (V). Drive shaft bearing: standard bearing (0). Mounting flange: SAE J744 152-4 (D4). Working port: SAE working ports A and B at side, opposite (2). Valve: 7.13 (27) (K). Standard/special version: special version (S).
- Number
- R902253900
- Type code
- A6VM150EP500P000A/71MLV0D4XX2KH-S
- Group
- A6VM 150
- Edition
- 06/2020

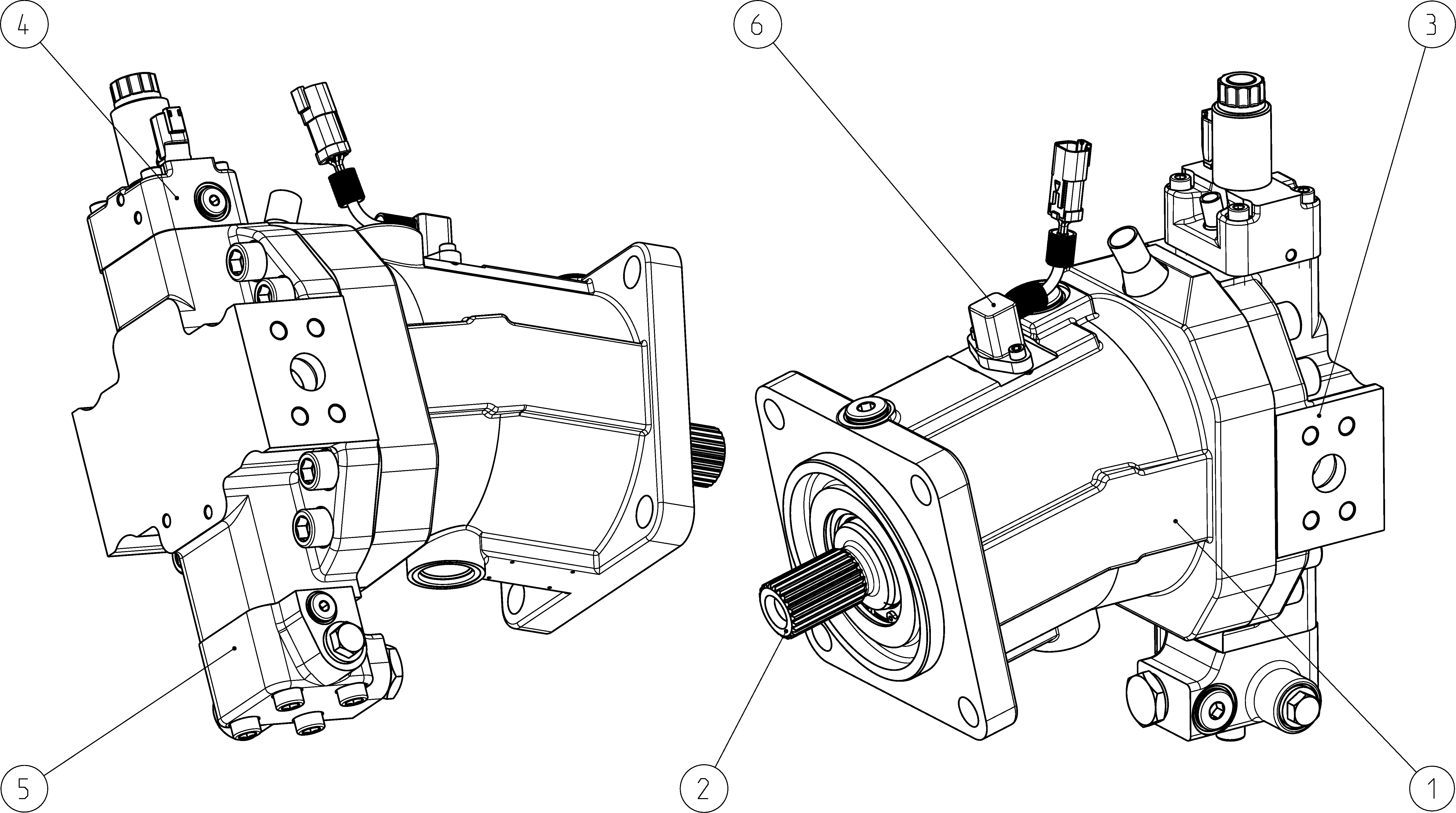

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902227409 | HOUSING Assembly parts list →L | 1 | ||
| R902256536 | ROTARY GROUP Assembly parts list →L | 1 | ||
| R902163672 | COVER PLATE Assembly parts list →L | 1 | ||
| R902238126 | CONTROL PART Assembly parts list →L | 1 | ||
| R902253253 | FLUSH/BOOST PRESSURE VALVE Assembly parts list →L | 1 | ||
| R902085686 | ROTATIONAL SPEED SENSOR Assembly parts list →L | 1 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Axial piston unit | Bent-axis design, variable, nominal pressure 6500 psi (450 bar), maximum pressure 7700 psi | A6V |
| Operating mode | Motor | M |
| Size (NG) | 150 | 150 |
| Control device | Proportional control, electric negative control U = 12 V | EP5 |
| Pressure control/override | Without pressure control/override | 00 |
| DEUTSCH - molded connector, 2-pin, without suppressor diode | P | |
| Swivel angle detection | Without | 0 |
| Additional function | Without additional function | 0 |
| Stroking time damping | Without damping (standard with HP and EP) | 0 |
| Setting range for displacement | No setting screw short (0-adjustable) | A |
| Series | Series 7, Index 1 | 71 |
| Sealing material | FKM (fluoroelastomer) | V |
| Drive shaft bearing | Standard bearing | 0 |
| Mounting flange | SAE J744 152-4 | D4 |
| Working port | SAE working ports A and B at side, opposite | 2 |
| Valve | 7.13 (27) | K |
| Standard/special version | Special version | S |
