Unit · AXIAL-PISTON MOTOR
A6VM080EP500P00XC/65AWV0C4S71DV-YR902255546
Axial piston motor Bosch Rexroth series A6VM, type code A6VM080EP500P00XC/65AWV0C4S71DV-Y, material number R902255546. Nominal size: NG 80. Axial piston unit: bent-axis design, variable, nominal pressure 5800 psi (400 bar), maximum pressure (A6V). Operating mode: motor (M). Control device: proportional control electrical negative control U = 12 V DC (EP5). Pressure control/override: without pressure control/override (00). Additional function 1: without additional function (0). Additional function 2: without additional function (0). Setting range for displacement: without setting screw long (C). Configuration of ports and fastening threads: ANSI, port threads with O-ring sealing according to ISO 11926 (A). Direction of rotation: viewed on drive shaft, bidirectional (W). Sealing material: FKM (fluoroelastomer) (V). Drive shaft bearing: standard bearing (0). Mounting flange: SAE J744 127-4 (C4). Drive shaft: splined shaft 1 1/4 in 14T 12/24 DP ANSI B92.1a (S7). Port plate for working ports: SAE working ports A and B at rear (1).
- Number
- R902255546
- Type code
- A6VM080EP500P00XC/65AWV0C4S71DV-Y
- Group
- A6VM 80
- Edition
- 06/2020

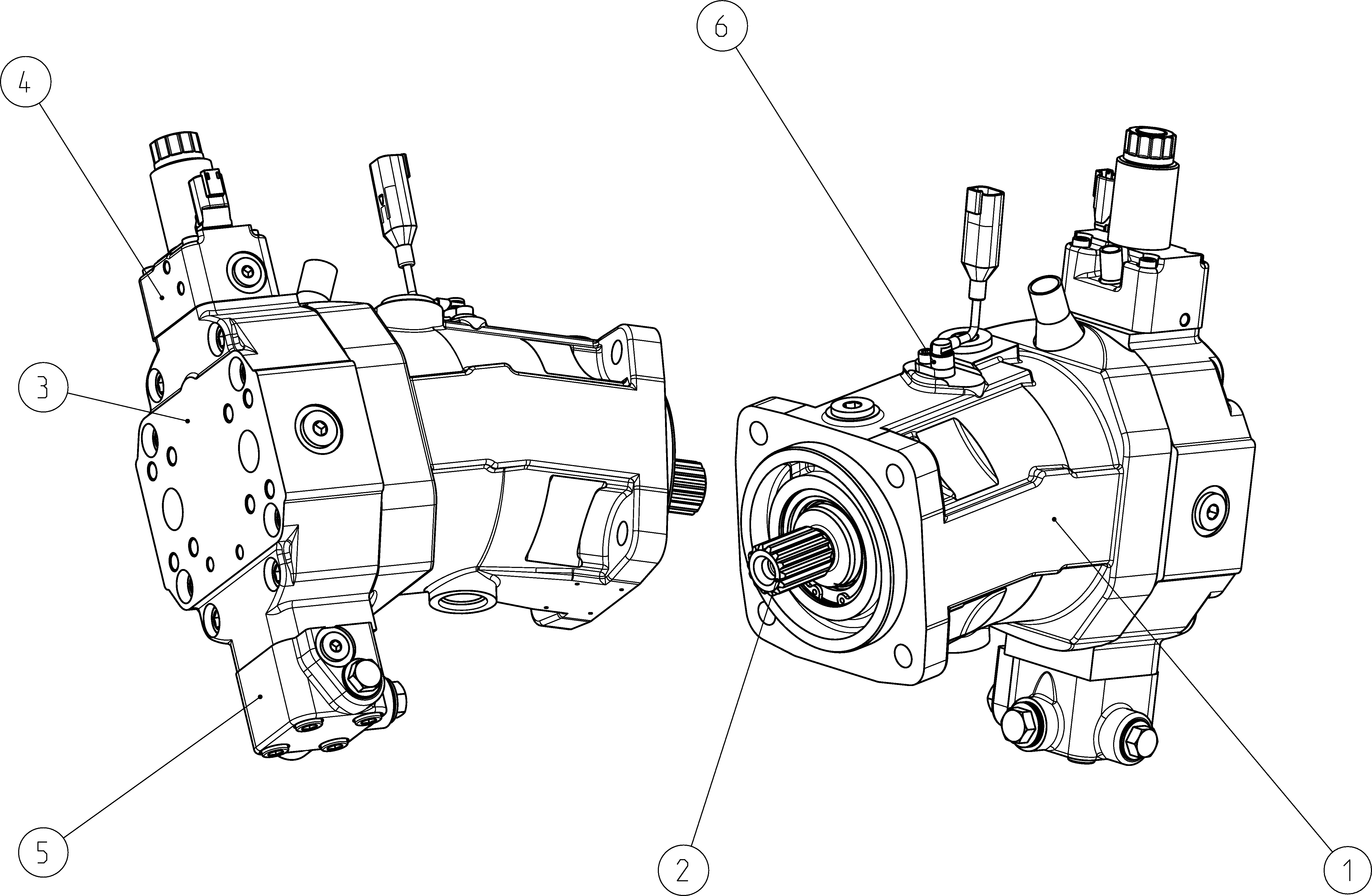

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902253421 | HOUSING Assembly parts list →L | 1 | ||
| R909604705 | ROTARY GROUP Assembly parts list →L | 1 | ||
| R902253422 | COVER PLATE Assembly parts list →L | 1 | ||
| R902149064 | CONTROL PART Assembly parts list →L | 1 | ||
| R902253426 | FLUSH/BOOST PRESSURE VALVE Assembly parts list →L | 1 | ||
| R902236078 | SENSOR Assembly parts list →L | 1 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Axial piston unit | Bent-axis design, variable, nominal pressure 5800 psi (400 bar), maximum pressure | A6V |
| Operating mode | Motor | M |
| Size (NG) | 80 | 080 |
| Control device | Proportional control electrical negative control U = 12 V DC | EP5 |
| Pressure control/override | Without pressure control/override | 00 |
| DEUTSCH - molded connector, 2-pin, without suppressor diode | P | |
| Additional function 1 | Without additional function | 0 |
| Additional function 2 | Without additional function | 0 |
| Setting range for displacement | Without setting screw long | C |
| Series | Series 6, index 5 | 65 |
| Configuration of ports and fastening threads | ANSI, port threads with O-ring sealing according to ISO 11926 | A |
| Direction of rotation | Viewed on drive shaft, bidirectional | W |
| Sealing material | FKM (fluoroelastomer) | V |
| Drive shaft bearing | Standard bearing | 0 |
| Mounting flange | SAE J744 127-4 | C4 |
| Drive shaft | Splined shaft 1 1/4 in 14T 12/24 DP ANSI B92.1a | S7 |
| Port plate for working ports | SAE working ports A and B at rear | 1 |
| Valve | Flushing flow qv [gpm (l/min)], (pND = low pressure, = case pressure) pG 2.6 (10) | D |
| Speed sensor | With speed sensor DSM/DSA mounted | V |
| Standard / special version | Standard version with installation variants, e. g. T ports against standard open and | Y |
