Unit · AXIAL-PISTON MOTOR
A6VM200EPP00P000E/65CWV0S4A21IF-SR902255581
Axial piston motor Bosch Rexroth series A6VM, type code A6VM200EPP00P000E/65CWV0S4A21IF-S, material number R902255581. Nominal size: NG 200. Axial piston unit: bent-axis design, variable displacement (A6V). Operating mode: motor (M). Pressure control/override: without pressure control/override (00). Connector for solenoids: DEUTSCH - molded connector, 2-pin, without suppressor diode (P). Swivel angle sensor: without swivel angle sensor (0). Additional function: without additional function (0). Stroking time damping: without damping (standard with HP and EP) (0). Setting range for displacement: short short (0-adjustable) (E). Direction of rotation: viewed on drive shaft, bi-directional (W). Sealing material: FKM (fluorocarbon rubber) (V). Drive shaft bearing: standard bearing (0). Mounting flange: ISO 3019-2 200-4 (S4). Drive shaft: splined shaft DIN 5480 W50×2×24×9g (A2). Working port: SAE working port A and B at rear (1).
- Number
- R902255581
- Type code
- A6VM200EPP00P000E/65CWV0S4A21IF-S
- Group
- A6VM 200
- Edition
- 06/2020

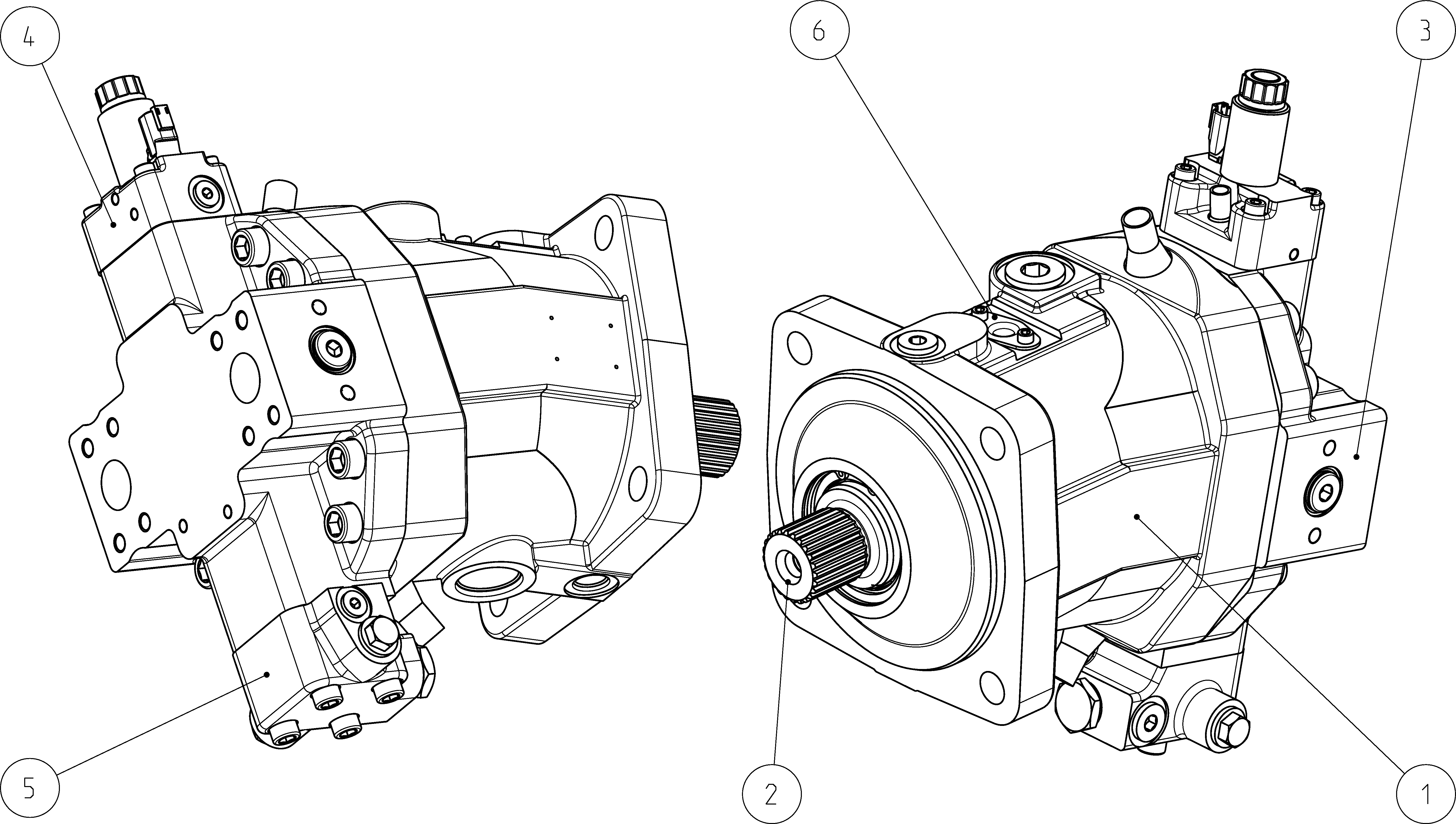

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902253440 | HOUSING Assembly parts list →L | 1 | ||
| R909604703 | ROTARY GROUP Assembly parts list →L | 1 | ||
| R902210537 | COVER PLATE Assembly parts list →L | 1 | ||
| R902210539 | CONTROL PART Assembly parts list →L | 1 | ||
| R902253410 | FLUSH/BOOST PRESSURE VALVE Assembly parts list →L | 1 | ||
| R902151719 | FLANGE COVER | 1 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Axial piston unit | Bent-axis design, variable displacement | A6V |
| Operating mode | Motor | M |
| Size (NG) | 200 | 200 |
| Pressure control/override | Without pressure control/override | 00 |
| Connector for solenoids | DEUTSCH - molded connector, 2-pin, without suppressor diode | P |
| Swivel angle sensor | Without swivel angle sensor | 0 |
| Additional function | Without additional function | 0 |
| Stroking time damping | Without damping (standard with HP and EP) | 0 |
| Setting range for displacement | Short short (0-adjustable) | E |
| Series | Series 6, index 5 (nominal pressure 400 bar) | 65 |
| Direction of rotation | Viewed on drive shaft, bi-directional | W |
| Sealing material | FKM (fluorocarbon rubber) | V |
| Drive shaft bearing | Standard bearing | 0 |
| Mounting flange | ISO 3019-2 200-4 | S4 |
| Drive shaft | Splined shaft DIN 5480 W50×2×24×9g | A2 |
| Working port | SAE working port A and B at rear | 1 |
| Valve | 18 | I |
| Standard/special version | Special version | S |
