Unit · AXIAL-PISTON MOTOR
A6VM160EP600P000E/65CRV0D4T110F-S *AE*R902255773
Axial piston motor Bosch Rexroth series A6VM, type code A6VM160EP600P000E/65CRV0D4T110F-S*AE*, material number R902255773. Nominal size: NG 160. Axial piston unit: bent-axis design, variable, nominal pressure 5800 psi (400 bar), maximum pressure (A6V). Operating mode: motor (M). Control device: proportional control electrical negative control U = 24 V DC (EP6). Pressure control/override: without pressure control/override (00). Additional function 1: without additional function (0). Additional function 2: without additional function (0). Response time damping: without damping (standard with HP and EP) (0). Setting range for displacement: short short (0-adjustable) (E). Sealing material: FKM (fluoroelastomer) (V). Drive shaft bearing: standard bearing (0). Mounting flange: SAE J744 152-4 (D4). Drive shaft: splined shaft ANSI B92.1a 1 3/4 in 13T 8/16 DP (T1). Port plate for working ports: SAE working ports A and B at rear (1). Valve: without valve (0).
- Number
- R902255773
- Type code
- A6VM160EP600P000E/65CRV0D4T110F-S *AE*
- Group
- A6VM 160
- Edition
- 06/2020

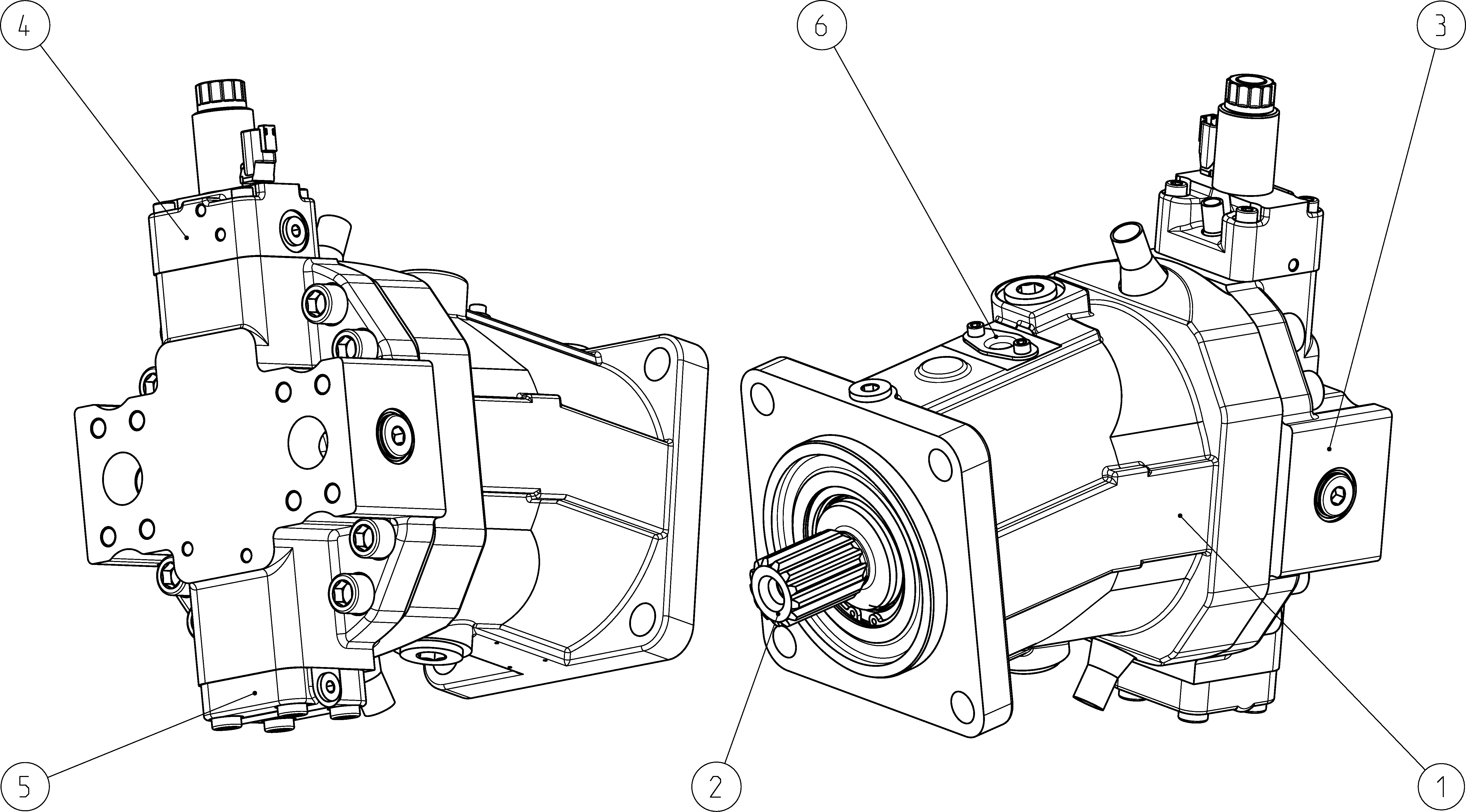

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902256706 | HOUSING Assembly parts list →L | 1 | ||
| R909604707 | ROTARY GROUP Assembly parts list →L | 1 | ||
| R902256707 | COVER PLATE Assembly parts list →L | 1 | ||
| R902149400 | CONTROL PART Assembly parts list →L | 1 | ||
| R902139644 | COVER Assembly parts list →L | 1 | ||
| R902151719 | FLANGE COVER | 1 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Axial piston unit | Bent-axis design, variable, nominal pressure 5800 psi (400 bar), maximum pressure | A6V |
| Operating mode | Motor | M |
| Size (NG) | 160 | 160 |
| Control device | Proportional control electrical negative control U = 24 V DC | EP6 |
| Pressure control/override | Without pressure control/override | 00 |
| DEUTSCH - molded connector, 2-pin, without suppressor diode | P | |
| Additional function 1 | Without additional function | 0 |
| Additional function 2 | Without additional function | 0 |
| Response time damping | Without damping (standard with HP and EP) | 0 |
| Setting range for displacement | Short short (0-adjustable) | E |
| Series | Series 6, index 5 | 65 |
| Sealing material | FKM (fluoroelastomer) | V |
| Drive shaft bearing | Standard bearing | 0 |
| Mounting flange | SAE J744 152-4 | D4 |
| Drive shaft | Splined shaft ANSI B92.1a 1 3/4 in 13T 8/16 DP | T1 |
| Port plate for working ports | SAE working ports A and B at rear | 1 |
| Valve | Without valve | 0 |
| Standard / special version | Special version | S |
