Unit · AXIAL-PISTON MOTOR
A6VE170HA200000XG/71MWV0S2A11JV-SR902255821
Axial piston motor Bosch Rexroth series A6VE, type code A6VE170HA200000XG/71MWV0S2A11JV-S, material number R902255821. Nominal size: NG 170. Axial piston unit: bent-axis design, variable, nominal pressure 450 bar, maximum pressure 530 bar (NG60 to 215) (NG280) (A6V). Operating mode: plug-in motor (E). Control device: automatic control High pressure dependent, positive control with pressure increase Δp = 100 bar (HA2). Pressure control/override: without pressure control/override (00). Additional function 1: without additional function (0). Additional function 2: without additional function (0). Setting range for displacement: short long (G). Version of port and fastening threads: metric ports based on ISO 6149 with O-ring seal, metric fastening thread according to DIN (M). Direction of rotation: viewed on drive shaft, bidirectional (W). Sealing material: FKM (fluoroelastomer) (V). Drive shaft bearing: standard bearing (0). Mounting flange: ISO 3019-2 200-2 (S2). Drive shaft: splined shaft DIN 5480 W45×2×21×9g (A1). Working port: SAE working ports A and B at rear (1).
- Number
- R902255821
- Type code
- A6VE170HA200000XG/71MWV0S2A11JV-S
- Group
- A6VE 170
- Edition
- 06/2020

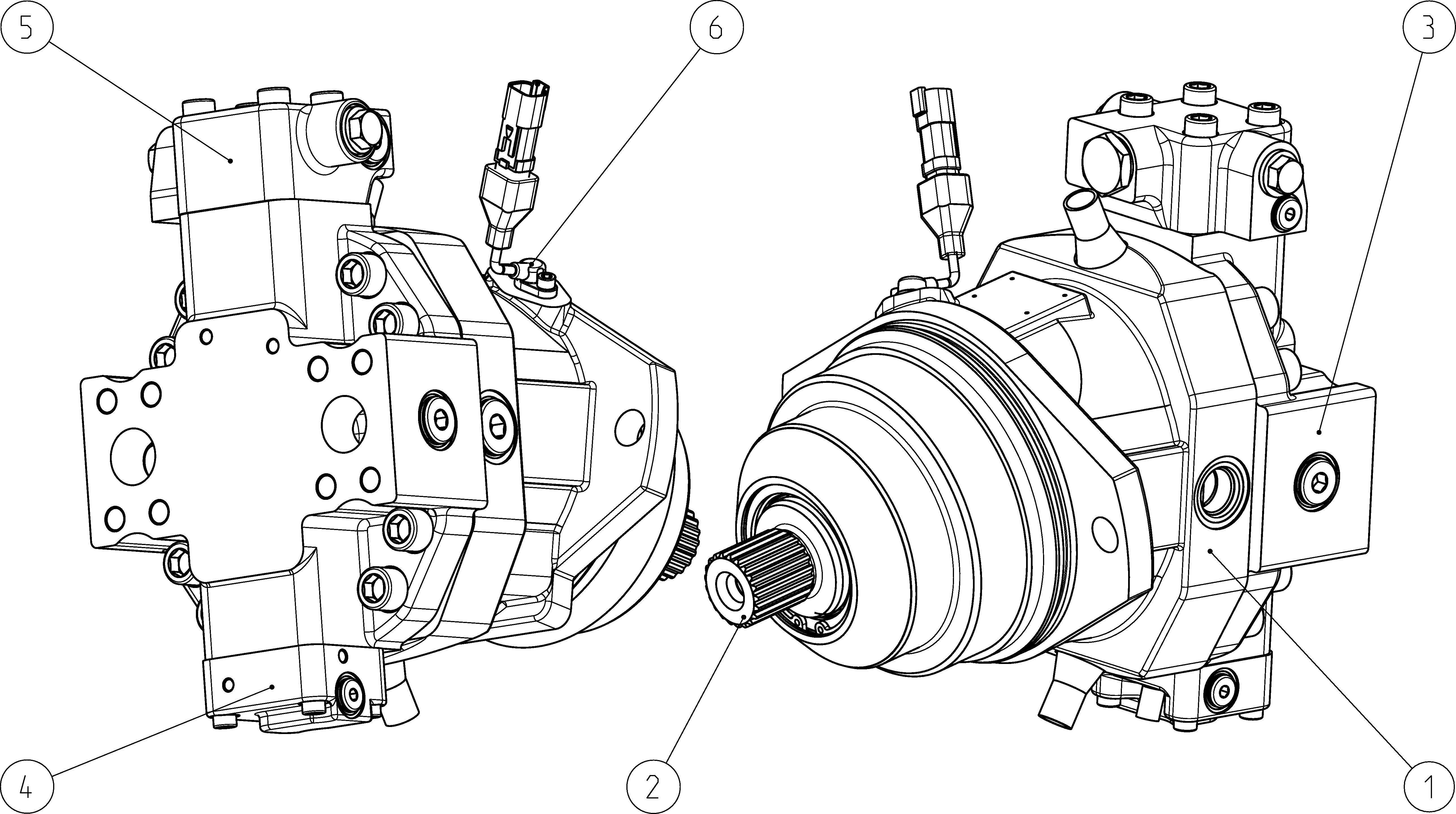

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902238025 | HOUSING Assembly parts list →L | 1 | ||
| R902277876 | ROTARY GROUP Assembly parts list →L | 1 | ||
| R902279463 | COVER PLATE Assembly parts list →L | 1 | ||
| R902216175 | CONTROL PART Assembly parts list →L | 1 | ||
| R902256726 | FLUSH/BOOST PRESSURE VALVE Assembly parts list →L | 1 | ||
| R902236084 | SENSOR Assembly parts list →L | 1 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Axial piston unit | Bent-axis design, variable, nominal pressure 450 bar, maximum pressure 530 bar (NG60 to 215) (NG280) | A6V |
| Operating mode | Plug-in motor | E |
| Size (NG) | 170 | 170 |
| Control device | Automatic control High pressure dependent, positive control with pressure increase Δp = 100 bar | HA2 |
| Pressure control/override | Without pressure control/override | 00 |
| Without connector (without solenoid, only for hydraulic control) | 0 | |
| Additional function 1 | Without additional function | 0 |
| Additional function 2 | Without additional function | 0 |
| Setting range for displacement | short long | G |
| Series | Series 7, Index 1 | 71 |
| Version of port and fastening threads | Metric ports based on ISO 6149 with O-ring seal, metric fastening thread according to DIN | M |
| Direction of rotation | Viewed on drive shaft, bidirectional | W |
| Sealing material | FKM (fluoroelastomer) | V |
| Drive shaft bearing | Standard bearing | 0 |
| Mounting flange | ISO 3019-2 200-2 | S2 |
| Drive shaft | Splined shaft DIN 5480 W45×2×21×9g | A1 |
| Working port | SAE working ports A and B at rear | 1 |
| Valve | Flushing flow qv [l/min], 21 | J |
| Speed sensor | With DSA speed sensor mounted | V |
| Standard/special version | Special version | S |
