Unit · AXIAL-PISTON PUMP
A4VG90DGDM1/32R-NAF02K071ER902259319
Axial piston pump Bosch Rexroth series A4VG, type code A4VG90DGDM1/32R-NAF02K071E, material number R902259319. Nominal size: NG 90. Axial piston unit: swashplate design, variable, nominal pressure 400 bar, maximum pressure 450 bar (A4V). Operating mode: pump, closed circuit (G). Control device: hydraulic control, direct operated (DG). Pressure cut-off: pressure cut-off (D). Mechanical stroke limiter: mechanical stroke limiter, externally adjustable (M). DA control valve: without DA control valve (1). Direction of rotation: viewed on drive shaft clockwise (R). Sealing material: NBR (nitrile rubber), shaft seal made of FKM (fluorocarbon rubber) (N). Drive shaft: splined shaft DIN 5480 for combination pump – 1st pump (A). Mounting flange: SAE J744 2+4-hole (F). Working port (port plate): SAE working port A and B, top and bottom suction port S bottom (02). Boost pump: without integrated boost pump with through drive (K). Through drive: flange SAE J744 Hub for splined shaft, 127-2 (C) 1 1/4 in 14T 12/24DP (07). High-pressure relief valve Setting range ∆pHD: high-pressure relief valve, pilot operated 100 … 420 bar with bypass (1).
- Number
- R902259319
- Type code
- A4VG90DGDM1/32R-NAF02K071E
- Group
- A4VG 90
- Edition
- 05/2020

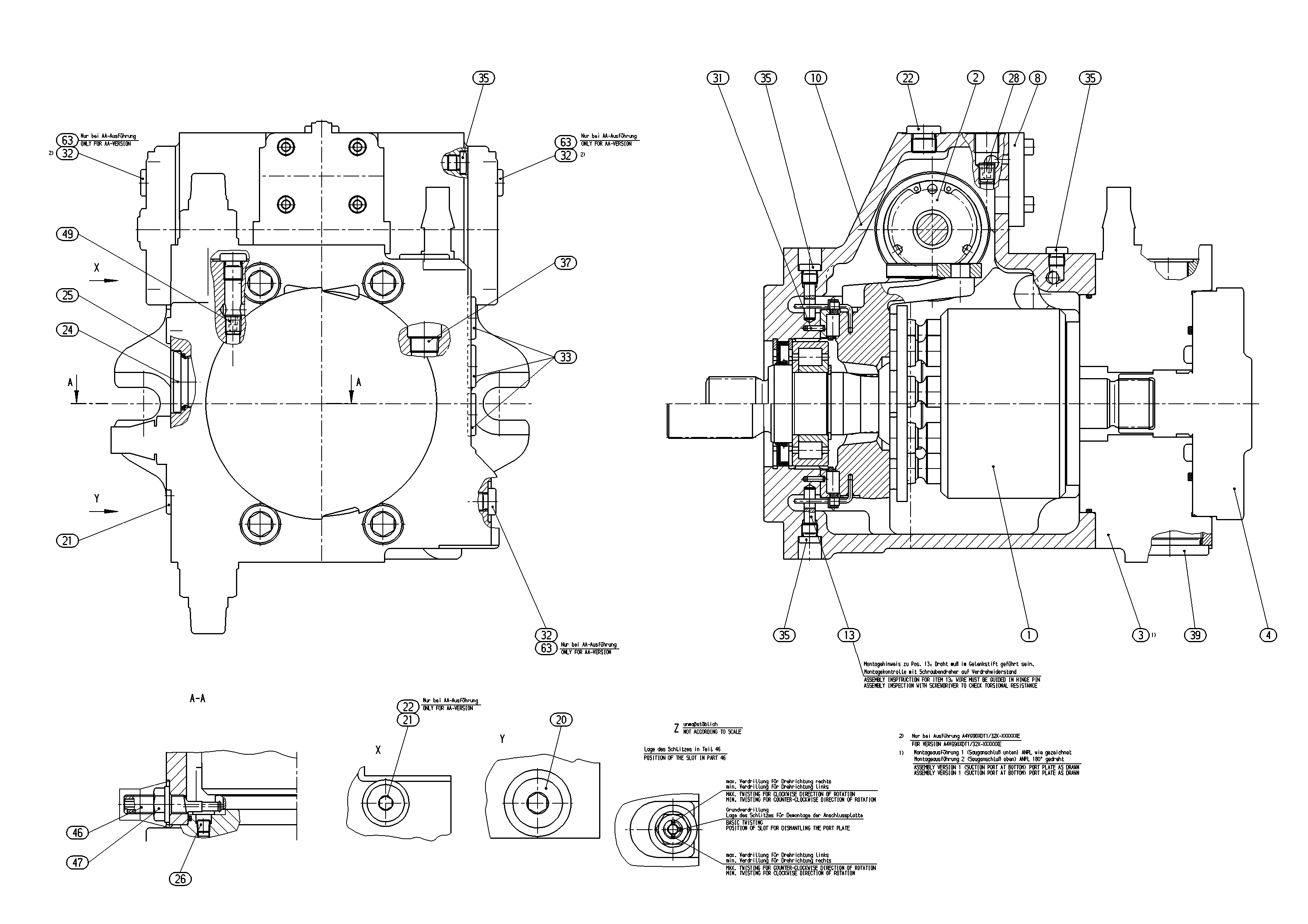

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902195459 | ROTARY GROUP Assembly parts list →L | 1 | ||
| R902025124 | CONTROL Assembly parts list →L | 1 | ||
| R909608596 | CONNECTION PLATE Assembly parts list →L | 1 | ||
| R902080116 | BELL HOUSING Assembly parts list →L | 1 | ||
| R902020371 | HOUSING | 1 | ||
| R902114380 | PIVOT PIN | 2 | ||
| R909153891 | SCREW PLUGD | 1 | ||
| R909153815 | SCREW PLUGD | 2 | ||
| R909153816 | SCREW PLUGD | 3 | ||
| R909083228 | SCREW PLUG | 1 | ||
| R909086731 | O-RINGD | 1 | ||
| R909153572 | SCREW PLUG | 1 | ||
| R909426700 | NOZZLE | 2 | ||
| R913016373 | SLOTTED SPRING PIN | 2 | ||
| R909151692 | SCREW PLUGD | 1 | ||
| R909151694 | SCREW PLUGD | 3 | ||
| R909153364 | SCREW PLUGD | 4 | ||
| R909087913 | SCREW PLUG | 1 | ||
| R909153862 | SCREW PLUGD | 1 | ||
| R902035616 | ECCENTRIC SCREW | 1 | ||
| R909087405 | SEALING NUTD | 1 | ||
| R909426706 | NOZZLE | 1 | ||
| 98 | R902095526 | SEAL KIT | 1 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Axial piston unit | Swashplate design, variable, nominal pressure 400 bar, maximum pressure 450 bar | A4V |
| Operating mode | Pump, closed circuit | G |
| Size (NG) | 90 | 90 |
| Control device | Hydraulic control, direct operated | DG |
| Pressure cut-off | Pressure cut-off | D |
| Mechanical stroke limiter | Mechanical stroke limiter, externally adjustable | M |
| DA control valve | Without DA control valve | 1 |
| Series | Series 3, index 2 | 32 |
| Direction of rotation | Viewed on drive shaft clockwise | R |
| Sealing material | NBR (nitrile rubber), shaft seal made of FKM (fluorocarbon rubber) | N |
| Drive shaft | Splined shaft DIN 5480 for combination pump – 1st pump | A |
| Mounting flange | SAE J744 2+4-hole | F |
| Working port (port plate) | SAE working port A and B, top and bottom suction port S bottom | 02 |
| Boost pump | Without integrated boost pump with through drive | K |
| Through drive | Flange SAE J744 Hub for splined shaft, 127-2 (C) 1 1/4 in 14T 12/24DP | 07 |
| High-pressure relief valve Setting range ∆pHD | High-pressure relief valve, pilot operated 100 … 420 bar with bypass | 1 |
| Filtration boost circuit/external boost pressure supply | External boost pressure supply (version without integrated boost pump – N00, K...) | E |
