Unit · AXIAL-PISTON MOTOR
A6VE28HAXT/63W-VAL020V0A-SR902274546
Axial piston motor Bosch Rexroth series A6VM, type code A6VE28HAXT/63W-VAL020V0A-S, material number R902274546. Nominal size: NG 28. Axial piston unit: bent-axis design, variable (A6V). Override (only for HA): override, hydraulic, remote controlled, proportional (T). Direction of rotation: viewed on drive shaft variable (W). Sealing material: FKM (fluoroelastomer) (V). Working port: SAE working ports Without valve 0 A and B at side, opposite 02 (020). Swivel angle sensor: optical swivel angle sensor (V). Standard/special version: special version (-S).
- Number
- R902274546
- Type code
- A6VE28HAXT/63W-VAL020V0A-S
- Group
- A6VE 28
- Edition
- 06/2020

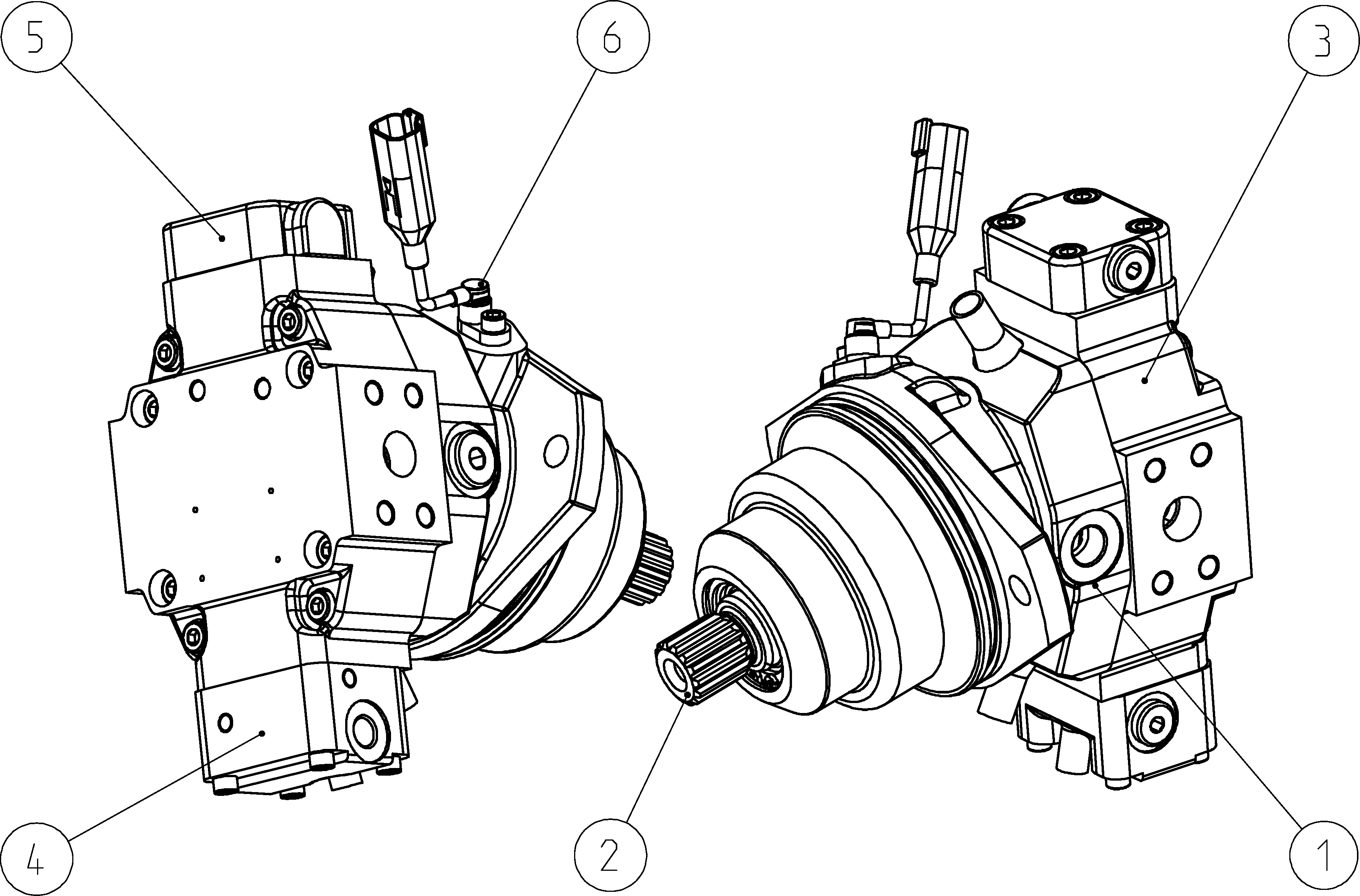

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902251184 | HOUSING Assembly parts list →L | 1 | ||
| R902024677 | ROTARY GROUP Assembly parts list →L | 1 | ||
| R902186450 | COVER PLATE Assembly parts list →L | 1 | ||
| R909605519 | CONTROL PART Assembly parts list →L | 1 | ||
| R902203650 | COVER Assembly parts list →L | 1 | ||
| R902236080 | SENSOR Assembly parts list →L | 1 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Axial piston unit | Bent-axis design, variable | A6V |
| Size (NG) | 28 | 28 |
| Override (only for HA) | Override, hydraulic, remote controlled, proportional | T |
| Series | Series 6, index 3 | 63 |
| Direction of rotation | Viewed on drive shaft variable | W |
| Sealing material | FKM (fluoroelastomer) | V |
| Working port | SAE working ports Without valve 0 A and B at side, opposite 02 | 020 |
| Swivel angle sensor | Optical swivel angle sensor | V |
| Standard/special version | Special version | -S |
