Unit · AXIAL-PISTON MOTOR
A6VE085HA20000XG/71MWV0Y2Z91FV-SR902274738
Axial piston motor Bosch Rexroth series A6VE, type code A6VE085HA20000XG/71MWV0Y2Z91FV-S, material number R902274738. Nominal size: NG 85. Axial piston unit: bent-axis design, variable, nominal pressure 450 bar, maximum pressure 530 bar (NG60 to 215) (NG280) (A6V). Operating mode: plug-in motor (E). Control device: automatic control High pressure dependent, positive control with pressure increase Δp = 100 bar (HA2). Pressure control/override: without pressure control/override (00). Additional function 1: without additional function (0). Setting range for displacement: short long (G). Version of port and fastening threads: metric ports based on ISO 6149 with O-ring seal, metric fastening thread according to DIN (M). Direction of rotation: viewed on drive shaft, bidirectional (W). Sealing material: FKM (fluoroelastomer) (V). Drive shaft bearing: standard bearing (0). Mounting flange: ISO 3019-2 190-2 (Y2). Drive shaft: splined shaft DIN 5480 W40×2×18×9g (Z9). Working port: SAE working ports A and B at rear (1). Valve: flushing flow qv [l/min], 14 (F).
- Number
- R902274738
- Type code
- A6VE085HA20000XG/71MWV0Y2Z91FV-S
- Group
- A6VE 85
- Edition
- 06/2020

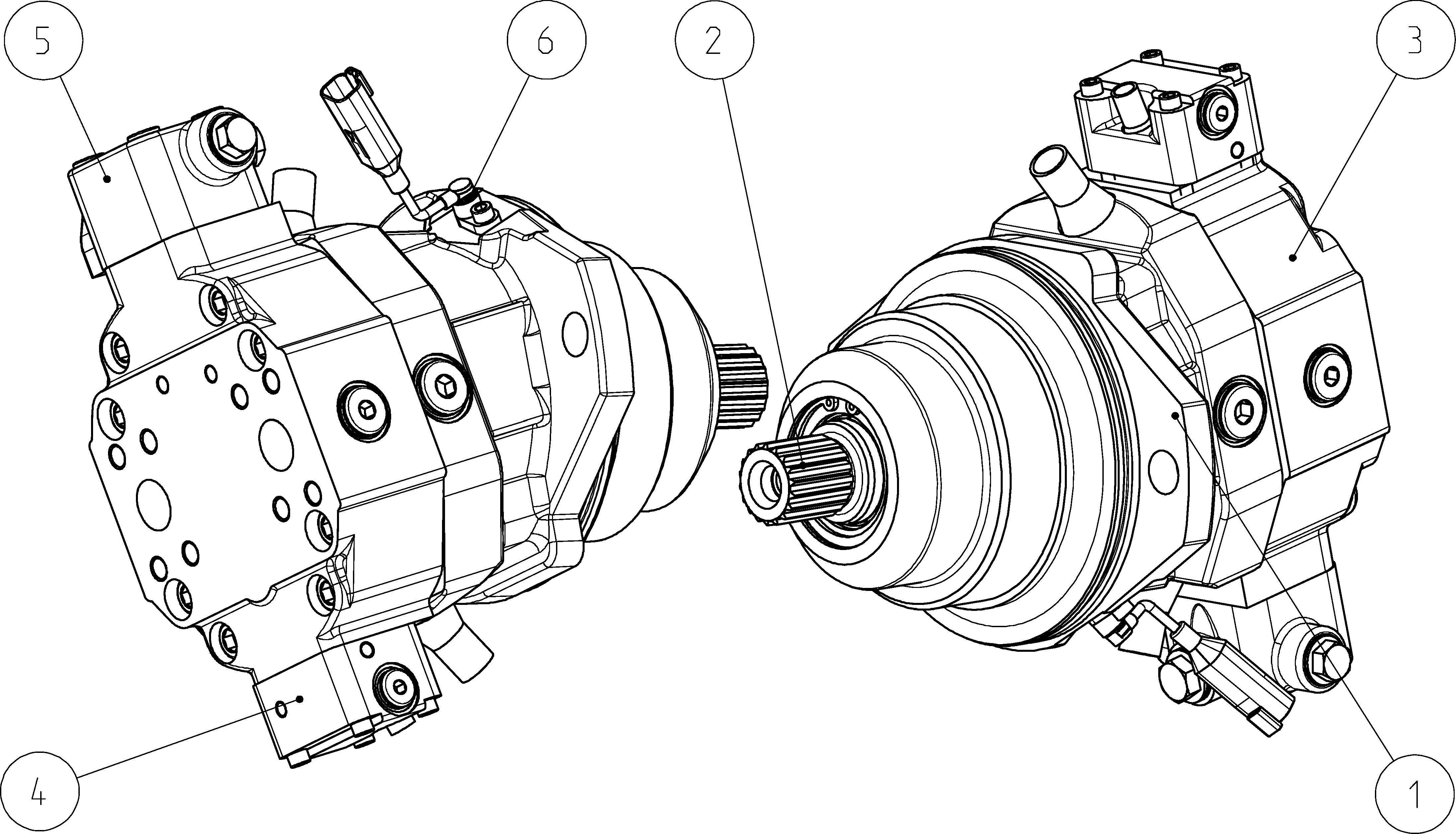

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902273449 | HOUSING Assembly parts list →L | 1 | ||
| R902126917 | ROTARY GROUP Assembly parts list →L | 1 | ||
| R902126952 | COVER PLATE Assembly parts list →L | 1 | ||
| R902256788 | CONTROL PART Assembly parts list →L | 1 | ||
| R902276171 | FLUSH/BOOST PRESSURE VALVE Assembly parts list →L | 1 | ||
| R902236084 | SENSOR Assembly parts list →L | 1 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Axial piston unit | Bent-axis design, variable, nominal pressure 450 bar, maximum pressure 530 bar (NG60 to 215) (NG280) | A6V |
| Operating mode | Plug-in motor | E |
| Size (NG) | 85 | 085 |
| Control device | Automatic control High pressure dependent, positive control with pressure increase Δp = 100 bar | HA2 |
| Pressure control/override | Without pressure control/override | 00 |
| Without connector (without solenoid, only for hydraulic control) | 0 | |
| Additional function 1 | Without additional function | 0 |
| Setting range for displacement | short long | G |
| Series | Series 7, Index 1 | 71 |
| Version of port and fastening threads | Metric ports based on ISO 6149 with O-ring seal, metric fastening thread according to DIN | M |
| Direction of rotation | Viewed on drive shaft, bidirectional | W |
| Sealing material | FKM (fluoroelastomer) | V |
| Drive shaft bearing | Standard bearing | 0 |
| Mounting flange | ISO 3019-2 190-2 | Y2 |
| Drive shaft | Splined shaft DIN 5480 W40×2×18×9g | Z9 |
| Working port | SAE working ports A and B at rear | 1 |
| Valve | Flushing flow qv [l/min], 14 | F |
| Speed sensor | With DSA speed sensor mounted | V |
| Standard/special version | Special version | S |
