Unit · PUMP COMBINATION
A4VG110DA2/40ML+A4VG110HT1/40MLR902276650
Pump combination Bosch Rexroth series A4VG, type code A4VG110DA2/40ML+A4VG110HT1/40ML, material number R902276650. Nominal size: NG 110. Axial piston unit: swashplate design, variable, nominal pressure 5800 psi (400 bar), maximum pressure 6500 psi (A4V). Operating mode: pump, closed circuit (G). Control device: automatic control, speed related U = 24 V (DA2). Direction of rotation: viewed on drive shaft counter-clockwise (L).
- Number
- R902276650
- Type code
- A4VG110DA2/40ML+A4VG110HT1/40ML
- Group
- A4VG 110
- Edition
- 01/2020

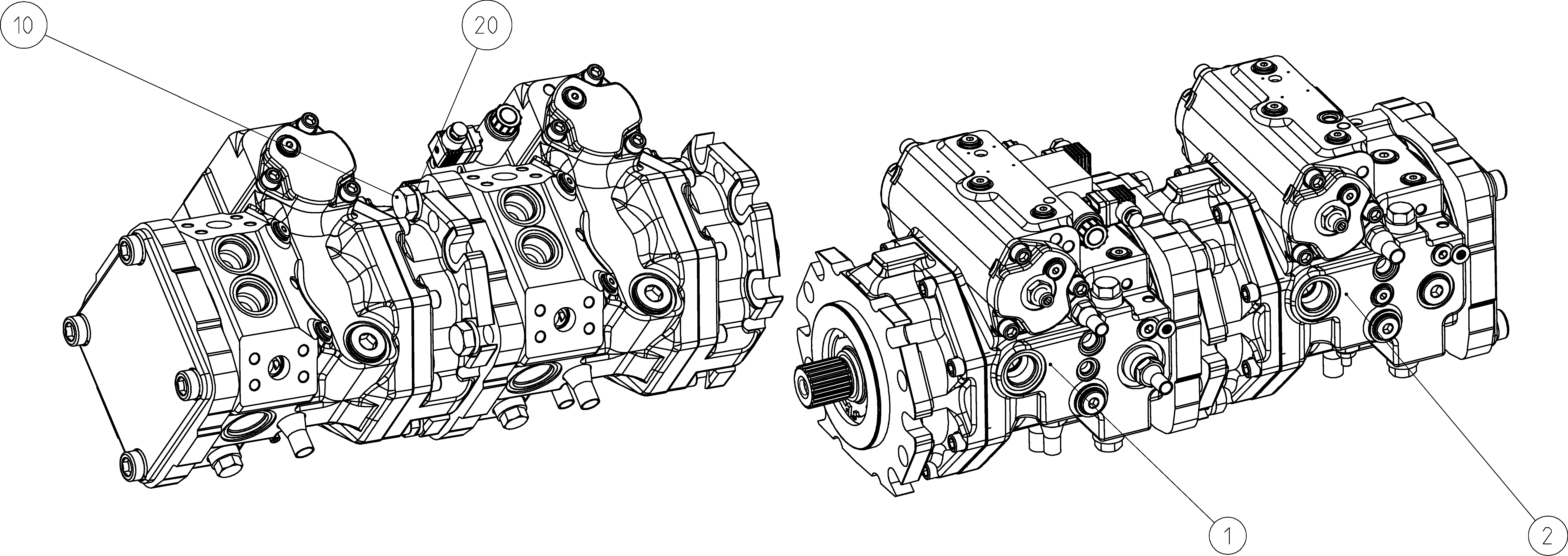

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902276651 | AXIAL-PISTON PUMP Assembly parts list →L | 1 | ||
| R902276652 | AXIAL-PISTON PUMP Assembly parts list →L | 1 | ||
| R909152538 | HEXAGON SCREW | 4 | ||
| R909436988 | WASHER | 4 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Axial piston unit | Swashplate design, variable, nominal pressure 5800 psi (400 bar), maximum pressure 6500 psi | A4V |
| Operating mode | Pump, closed circuit | G |
| Size (NG) | 110 | 110 |
| Control device | Automatic control, speed related U = 24 V | DA2 |
| Direction of rotation | Viewed on drive shaft counter-clockwise | L |
