Unit · PUMP COMBINATION
A4VG110EP2DP0TX/40ML+A4VG110EP2DP0TXR902276709
Pump combination Bosch Rexroth series A4VG, type code A4VG110EP2DP0TX/40ML+A4VG110EP2DP0TX, material number R902276709. Nominal size: NG 110. Axial piston unit: swashplate design, variable, nominal pressure 450 bar, maximum pressure 500 bar (A4V). Operating mode: pump, closed circuit (G). Control device: proportional control, electric U = 24 V (EP2). Pressure cut-off: pressure cut-off, with bypass Fixed setting, hydraulic, mechanical (D). Connector for solenoids: DEUTSCH molded connector, 2-pin – without suppressor diode (P). Swivel angle sensor: without swivel angle sensor (0). Additional function: stroking chamber pressure port X X (T). Configuration of port and fastening threads: metric ports according to ISO 6149 with O-ring seal, metric fastening thread according to DIN (M). Direction of rotation: viewed on drive shaft counter-clockwise (L).
- Number
- R902276709
- Type code
- A4VG110EP2DP0TX/40ML+A4VG110EP2DP0TX
- Group
- A4VG 110
- Edition
- 06/2020

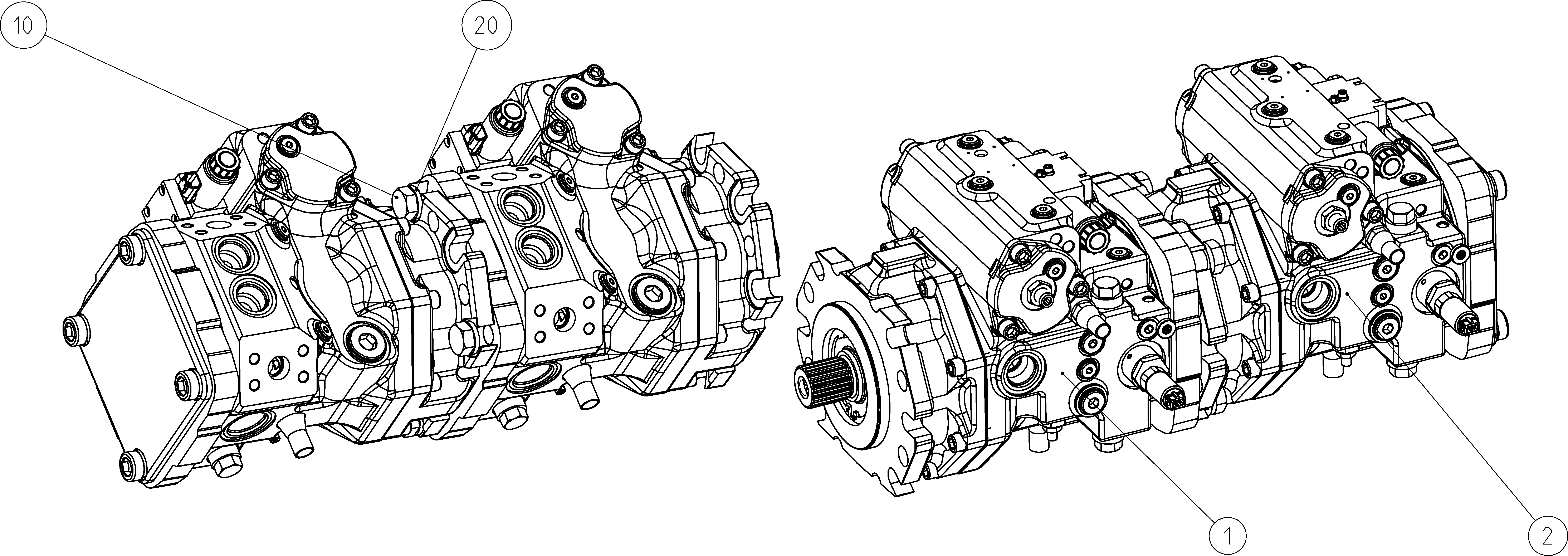

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902276710 | AXIAL-PISTON PUMP Assembly parts list →L | 1 | ||
| R902276711 | AXIAL-PISTON PUMP Assembly parts list →L | 1 | ||
| R909152538 | HEXAGON SCREW | 4 | ||
| R909436988 | WASHER | 4 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Axial piston unit | Swashplate design, variable, nominal pressure 450 bar, maximum pressure 500 bar | A4V |
| Operating mode | Pump, closed circuit | G |
| Size (NG) | 110 | 110 |
| Control device | Proportional control, electric U = 24 V | EP2 |
| Pressure cut-off | Pressure cut-off, with bypass Fixed setting, hydraulic, mechanical | D |
| Connector for solenoids | DEUTSCH molded connector, 2-pin – without suppressor diode | P |
| Swivel angle sensor | Without swivel angle sensor | 0 |
| Additional function | Stroking chamber pressure port X X | T |
| Configuration of port and fastening threads | Metric ports according to ISO 6149 with O-ring seal, metric fastening thread according to DIN | M |
| Direction of rotation | Viewed on drive shaft counter-clockwise | L |
