Unit · PUMP COMBINATION
PT-A4VG56EP3DT1/32R+A10VG28EP3D1/10RR902277209
Pump combination Bosch Rexroth series A4VG, type code PT-A4VG56EP3DT1/32R+A10VG28EP3D1/10R, material number R902277209. Nominal size: NG 56. Axial piston unit: swashplate design, variable, nominal pressure 5800 psi (400 bar), maximum pressure 6500 psi (A4V). Operating mode: pump, closed circuit (G). Control device: proportional control U = 12 V electric with proportional solenoid (EP3). Pressure cut-off: pressure cut-off (D). Stroking chamber pressure port: stroking chamber pressure port X X (T). DA control valve: without DA control valve (1). Direction of rotation: viewed on drive shaft clockwise (R).
- Number
- R902277209
- Type code
- PT-A4VG56EP3DT1/32R+A10VG28EP3D1/10R
- Group
- A10VG 28
- Edition
- 12/2019

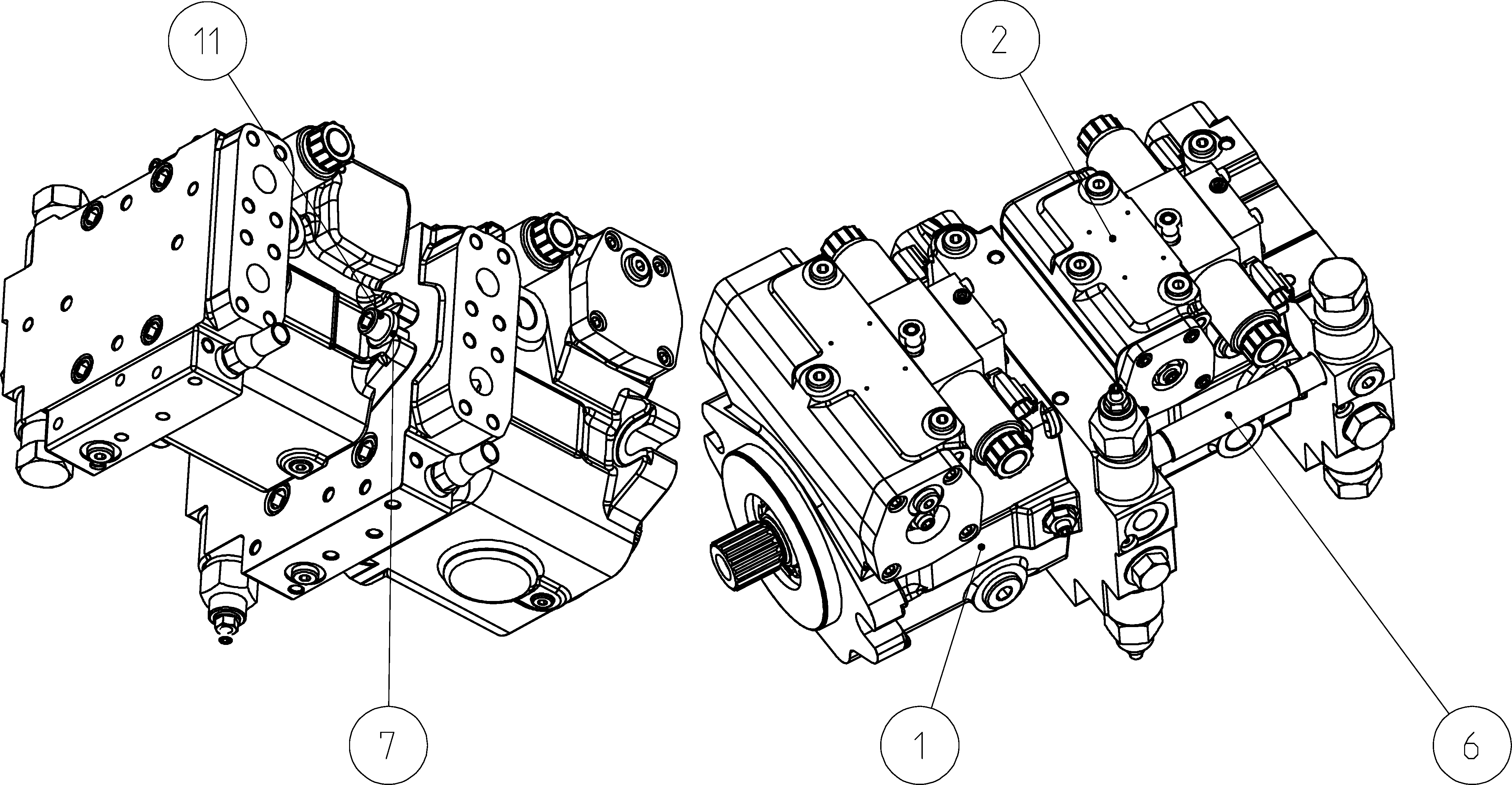

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902277210 | AXIAL-PISTON PUMP Assembly parts list →L | 1 | ||
| R902277211 | AXIAL-PISTON PUMP Assembly parts list →L | 1 | ||
| R909651425 | SOCKET PIPE | 1 | ||
| R909430409 | WASHER | 2 | ||
| 10 | R909084939 | O-RINGD | 2 | |
| R909083089 | SOCKET HEAD CAP SCREW | 2 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Axial piston unit | Swashplate design, variable, nominal pressure 5800 psi (400 bar), maximum pressure 6500 psi | A4V |
| Operating mode | Pump, closed circuit | G |
| Size (NG) | 56 | 56 |
| Control device | Proportional control U = 12 V electric with proportional solenoid | EP3 |
| Pressure cut-off | Pressure cut-off | D |
| Stroking chamber pressure port | Stroking chamber pressure port X X | T |
| DA control valve | Without DA control valve | 1 |
| Series | Series 3, index 2 | 32 |
| Direction of rotation | Viewed on drive shaft clockwise | R |
