Unit · AXIAL-PISTON MOTOR
A6VE080EZ400P001B/65NWV0Y2Z92D0-0R902282813
Axial piston motor Bosch Rexroth series A6VE, type code A6VE080EZ400P001B/65NWV0Y2Z92D0-0, material number R902282813. Nominal size: NG 80. Axial piston unit: bent-axis design, variable (A6V). Operating mode: plug-in motor (E). Pressure control/override: without pressure control/override (00). Additional function 1: without additional function (0). Additional function 2: without additional function (0). Stroking time damping: damping HP, EP, HP5,6D. and EP5,6D., HZ, EZ, HA with counterbalance valve (1). Setting range for displacement: without setting screw Moderate (B). Version of port and fastening threads: metric ports based on DIN 3852 with profile sealing ring, metric fastening thread according to DIN 13 (N). Direction of rotation: viewed on drive shaft, bidirectional (W). Sealing material: FKM (fluorocarbon rubber) (V). Drive shaft bearing: standard bearing (0). Mounting flange: ISO 3019-2 190-2 (Y2). Drive shaft: splined shaft DIN 5480 W40×2×18×9g (Z9). Working port: SAE working ports A and B at side, opposite (2).
- Number
- R902282813
- Type code
- A6VE080EZ400P001B/65NWV0Y2Z92D0-0
- Group
- A6VE 80
- Edition
- 06/2020

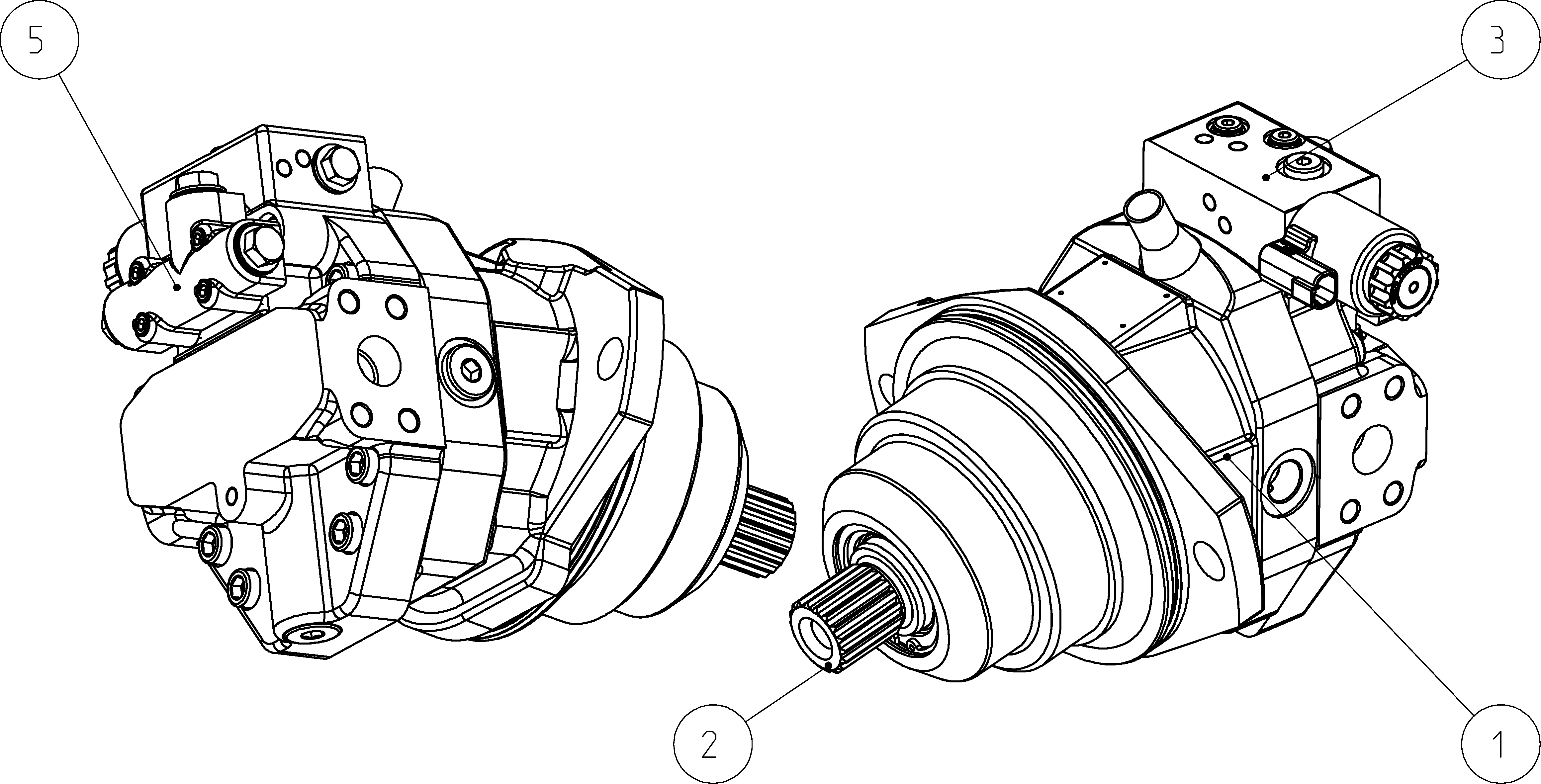

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902283158 | HOUSING Assembly parts list →L | 1 | ||
| R909604145 | ROTARY GROUP Assembly parts list →L | 1 | ||
| R902241244 | COVER PLATE Assembly parts list →L | 1 | ||
| R902216061 | FLUSH/BOOST PRESSURE VALVE Assembly parts list →L | 1 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Axial piston unit | Bent-axis design, variable | A6V |
| Operating mode | Plug-in motor | E |
| Size (NG) | 80 | 080 |
| Pressure control/override | Without pressure control/override | 00 |
| DEUTSCH - molded connector, 2-pin, without suppressor diode | P | |
| Additional function 1 | Without additional function | 0 |
| Additional function 2 | Without additional function | 0 |
| Stroking time damping | Damping HP, EP, HP5,6D. and EP5,6D., HZ, EZ, HA with counterbalance valve | 1 |
| Setting range for displacement | Without setting screw Moderate | B |
| Series | Series 6, index 5 | 65 |
| Version of port and fastening threads | Metric ports based on DIN 3852 with profile sealing ring, metric fastening thread according to DIN 13 | N |
| Direction of rotation | Viewed on drive shaft, bidirectional | W |
| Sealing material | FKM (fluorocarbon rubber) | V |
| Drive shaft bearing | Standard bearing | 0 |
| Mounting flange | ISO 3019-2 190-2 | Y2 |
| Drive shaft | Splined shaft DIN 5480 W40×2×18×9g | Z9 |
| Working port | SAE working ports A and B at side, opposite | 2 |
| Valve | Flushing flow [l/min] qv, 10 | D |
| Standard/special version | Standard version | 0 |
