Unit · AXIAL-PISTON PUMP
A AA10VSO 28 DFR /31L-VKC61N00R902400105
Axial piston pump Bosch Rexroth series A10VSO, type code AAA10VSO28DFR/31L-VKC61N00, material number R902400105. Nominal size: NG 28. Operating mode: pump, open circuit (O). Control device: with flow controller X-T open hydraulic (DFR). Direction of rotation: viewed on drive shaft counter-clockwise (L). Sealing material: FKM (fluorocarbon rubber) (V). Drive shaft: parallel keyed shaft permissible through-drive torque ISO 3019-1 (K). Mounting flange: ISO 3019-1 2-hole (C). Through drive: without through drive (N00).
- Number
- R902400105
- Type code
- A AA10VSO 28 DFR /31L-VKC61N00
- Group
- A10VSO 28
- Edition
- 06/2020

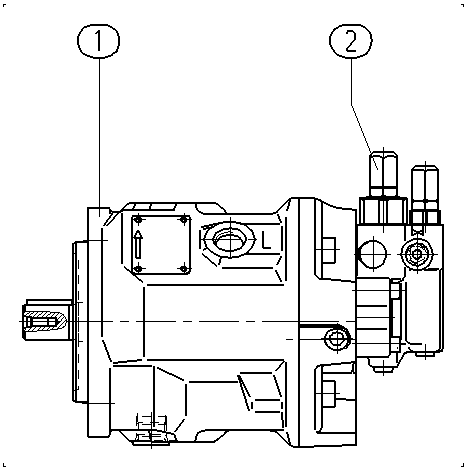

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R910992229 | BASE UNIT Assembly parts list →L | 1 | ||
| R902453430 | CONTROL VALVE Assembly parts list →L | 1 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Operating mode | Pump, open circuit | O |
| Size (NG) | 28 | 28 |
| Control device | with flow controller X-T open hydraulic | DFR |
| Series | Series 3, index 1 | 31 |
| Direction of rotation | Viewed on drive shaft counter-clockwise | L |
| Sealing material | FKM (fluorocarbon rubber) | V |
| Drive shaft | Parallel keyed shaft permissible through-drive torque ISO 3019-1 | K |
| Mounting flange | ISO 3019-1 2-hole | C |
| Through drive | Without through drive | N00 |
